Page 2-10 CL40 Antenna Technical Instruction Manual
Issue 3.0 Section 2 Preparation for Use and Installation

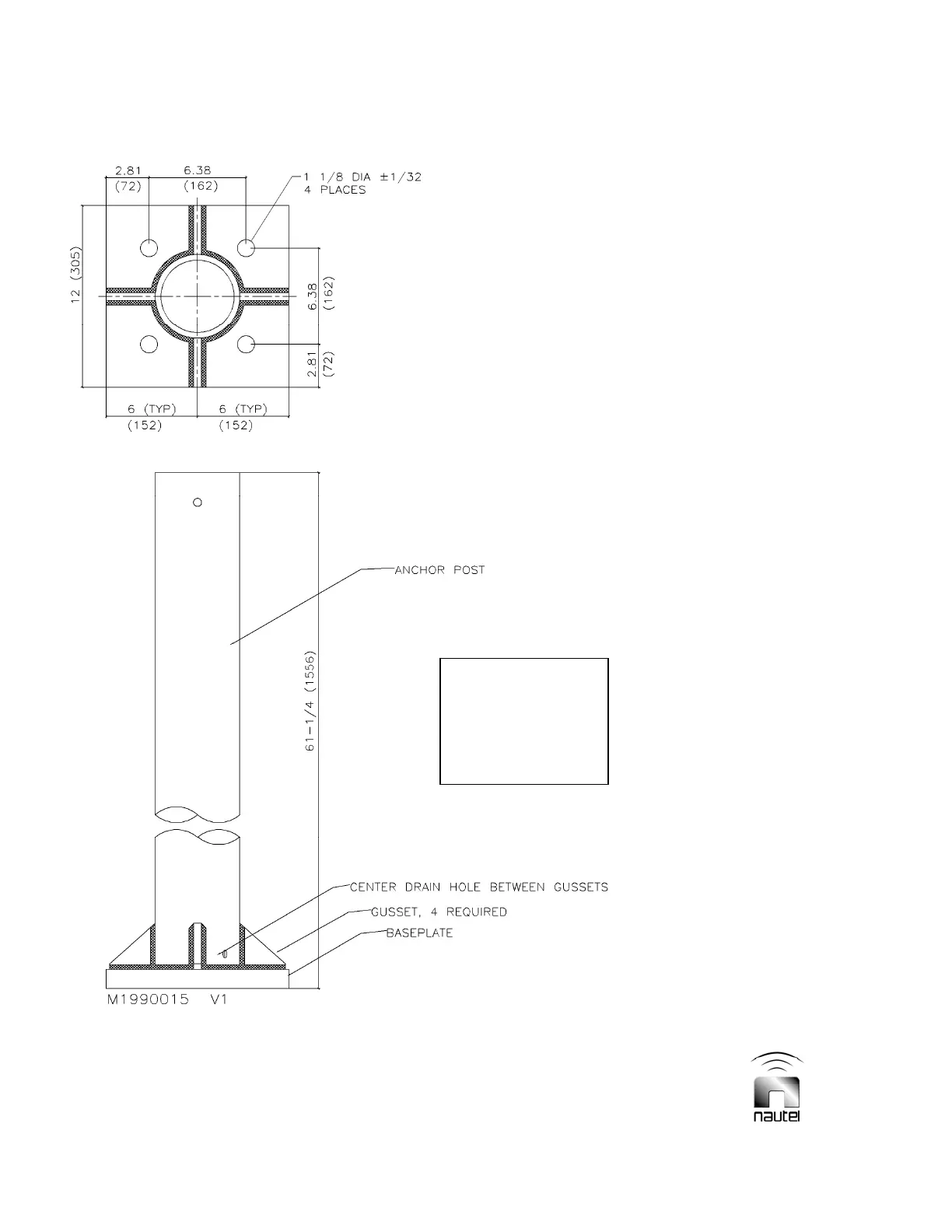

Figure 2-3b: Non-Standard Base
Mounting design
should be based on
a net overturning
moment at the top of
base plate of 18,500
foot pounds.
ALL DIMENSIONS IN INCHES (mm)
