Page 2-24 CL40 Antenna Technical Instruction Manual
Issue 3.0 Section 2 Preparation for Use and Installation
NOTES:
1 Unless site conditions dictate otherwise, ground mat should be buried to a depth of at
least six inches.
2 All joints should be minimum of four turns of one wire around the other and soldered -
silver solder is recommended.

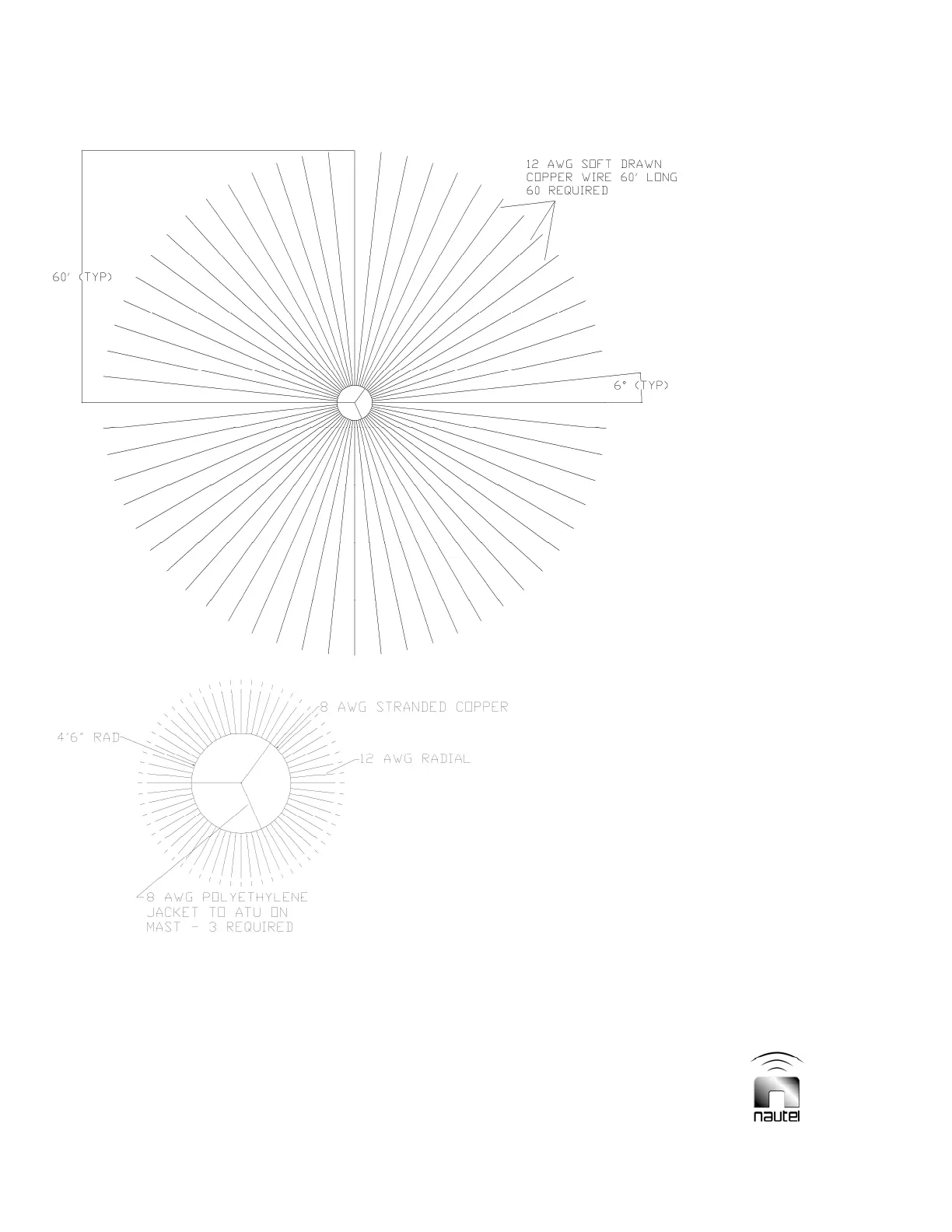

Figure 2-15b: Ground Mat Installation, 60 Radials
ENLARGED VIEW OF
GROUND MAT CENTRE
