CL40 Antenna Technical Instruction Manual Page 2-21
Section 2 Preparation for Use and Installation Issue 3.0

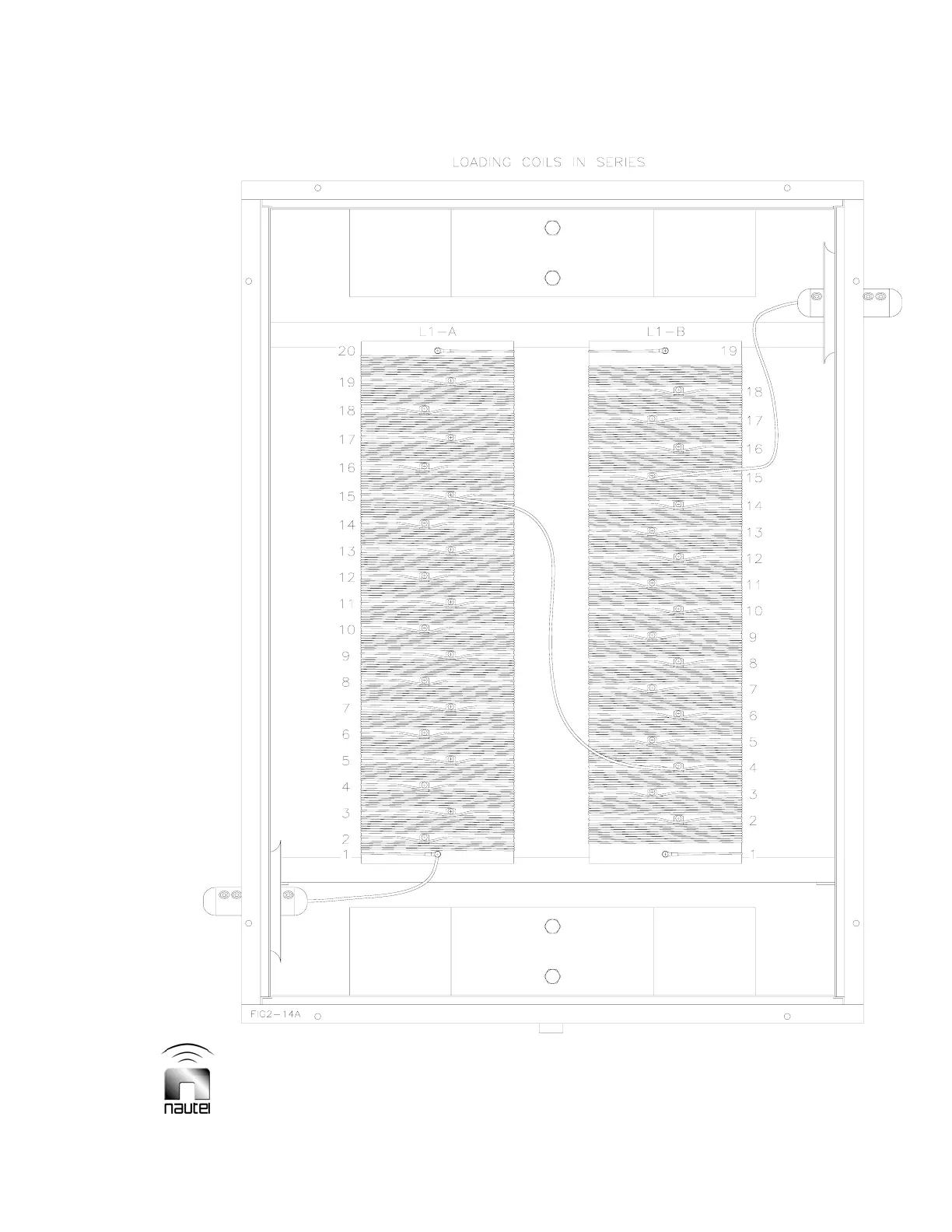

Figure 2-14a: Loading Coil Configuration, Series Connected
(246 - 260 kHz example shown)
