CL40 Antenna Technical Instruction Manual Page 2-29 (Page 2-30 Blank)
Section 2 Preparation for Use and Installation Issue 3.0

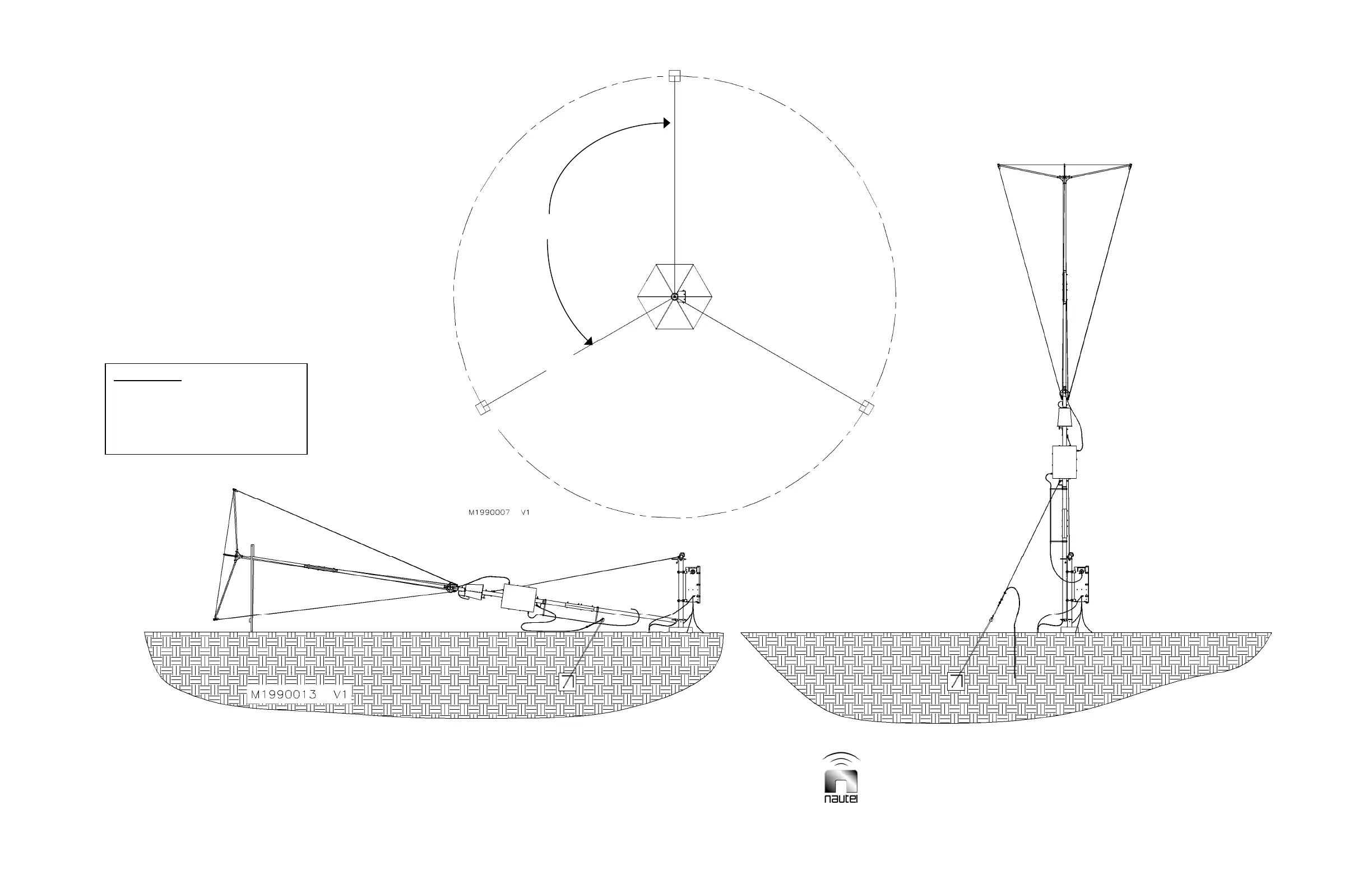

Figure 2-17b: Guy Wire Kit – Site and Foundation Preparation
Tower
Base
120°
ncho
Foundation
(qty 3)
See Figure 2-19 (Step 1) for details
on installing anchor bases.
7 ft (2.1 m)
IMPORTANT:
Ensure the first anchor foundation is
positioned such that it is in the direction
to which the antenna points when in its
horizontal orientation (i.e., before
erecting)
To Next Page
