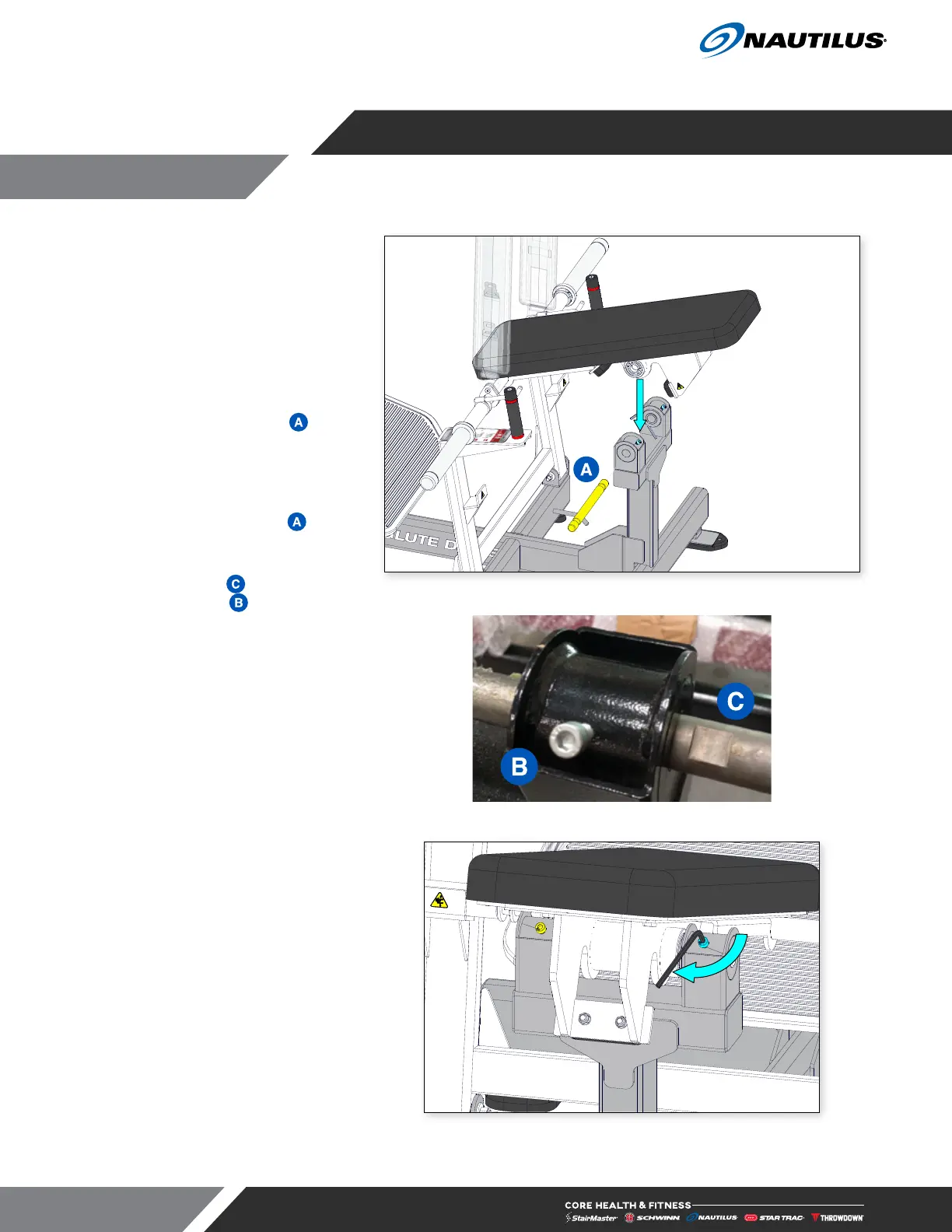

3. Remove the pivot shaft from the
frame prior to mounting the back
rest assembly. (Fig. 6)
4. Install the seat by lowering the
back rest assembly into position,
then inserting the shaft into the
frame and through the back-rest
assembly.
5. The shaft flats must align with
the set screws on either side
when mounting the back rest. (Fig.
7)
Fig. 6
Fig. 7
6. Use a 6mm allen key to secure one
(1) piece of the M8 x 16mm socket
screw into the user right side
bearing assembly.
7. Repeat this step for the user left
side.
Fig. 8

Nautilus Glute Drive Specifications

General

Brand	Nautilus
Primary Muscle Targeted	Glutes
Footprint	68" x 57" (173 cm x 145 cm)
Adjustability	Adjustable padded belt; Adjustable foot platform
Dimensions	68" L x 57" W x 37" H (173 cm x 145 cm x 94 cm)
Weight Capacity	350 lb (159 kg)
Machine Weight	265 lb (120 kg)
Starting Resistance	60 lb (27 kg)
Material	Steel frame
Color	Black
Warranty	10 years frame, 2 years parts, 1 year labor
