Required Tools:
• Metric Allen Key Set
• Metric Open-Ended Wrench
Set
• Large Adjustable Crescent
Wrench
• Loctite Blue
1
Anchor Guidance:
• All equipment must be bolted down prior to use by a licensed contractor.
• WARNING: Equipment that Is not securely bolted to the floor is not safe.
• The customer is responsible for determining the suitability of the installations site.
• Factors such as equipment weight, vibration, overhead clearance, workout activities should be
considered.
• When the floor is constructed of concrete, the concrete should have a rated strength of at least
4000psi.
• The anchors should be installed in accordance with the manufacturers recommendations.
• It is the responsibility of the gym owner to ensure that the sub-floor and installation anchors are
appropriate for the equipment.

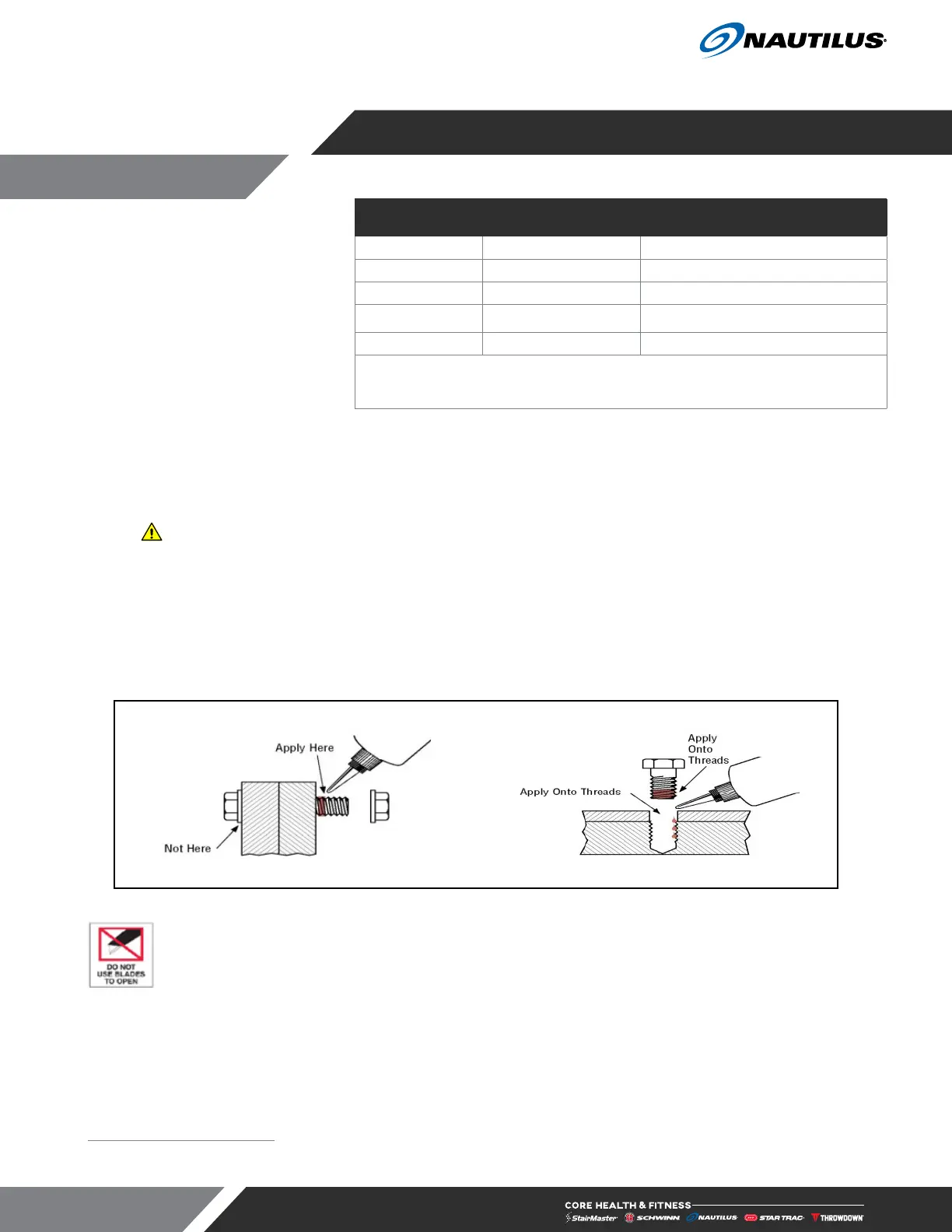

THREAD LOCKER APPLICATION: Clean all threads and holes, apply no more than 3-4 drops per bolt.
Thru Holes Blind Holes
PACKAGING REMOVAL:
Carefully remove all packaging materials that wrap the equipment. DO NOT USE A KNIFE OR BOX
CUTTER AS YOU MAY DAMAGE THE EQUIPMENT. At this time remove any sub-components from
the pallet and set aside for later assembly.
Once all packaging has been removed, lay all parts out in a clean open area to prepare for assembly.
Should any component not be present or if you have any operational questions, please refer to SUPPORT &
SERVICE
1 Unless otherwise noted Loctite 242/243 or equivalent thread locker must be used on all threaded fasteners. (Do not use thread locker when a Nyloc nut
is used.)
ASSEMBLY
Metric Steel Bolts Torque Specifications
Bolt Size Thread Pitch Torque, N-m (lbs-ft)
6mm 1.25 10 to13.5 (8 to10)
8mm 1.25 25.5 to 28.5 (19 to 21)
10mm 1.75 55.5 to 58 (41 to 43)
12mm 1.25 61 to 65 (45 to 48)
• Torque all hardware to values as specified above, unless noted otherwise.
• See procedure of this manual for fastener sizing information; for reference only.
Note: All torque values are in N-m unless otherwise stated.
