16

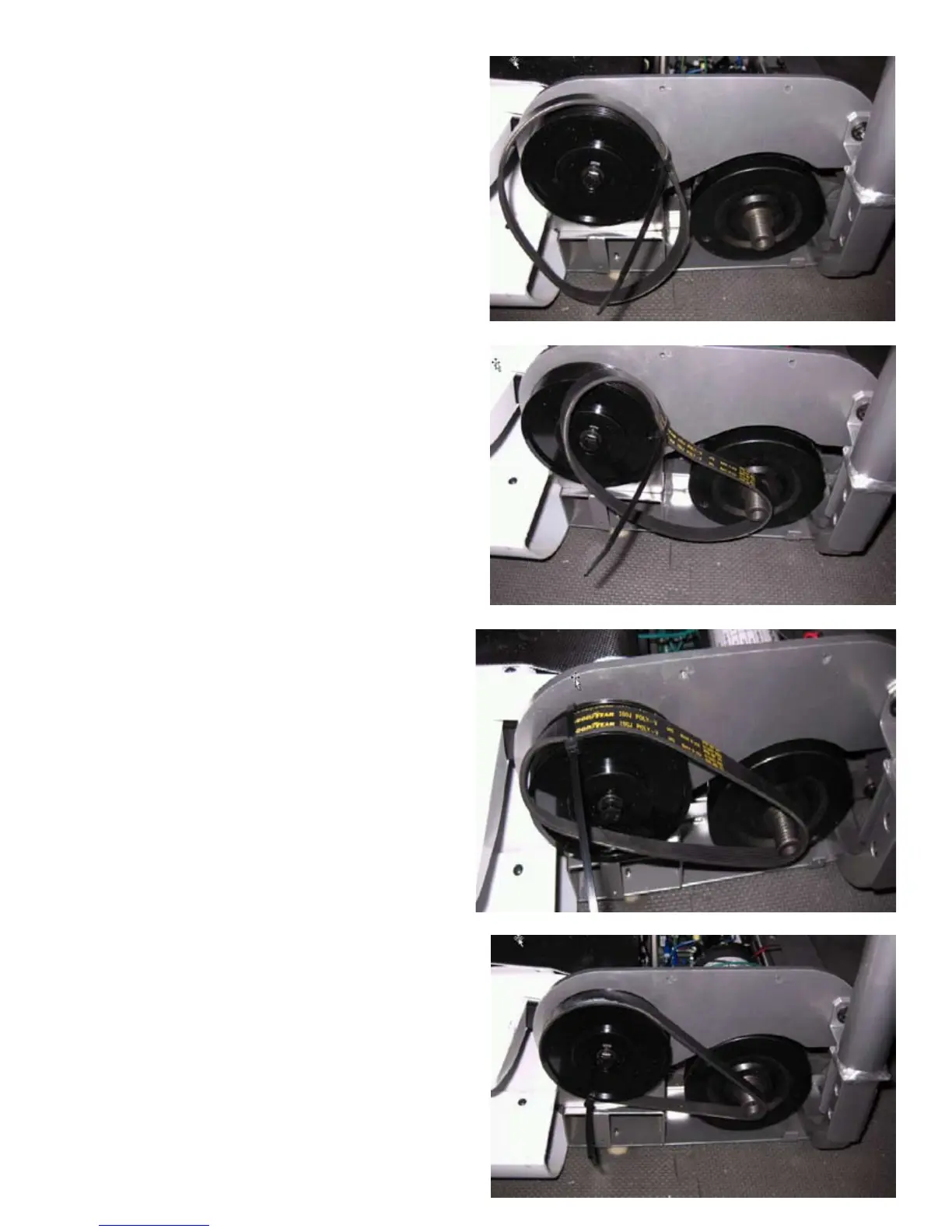

7. Zip tie new Belt to Roller Pulley as shown.
8. Wrap belt around Small, Motor Roller.
9. Ensure belt ribs are engaged properly in Large Pulley grooves.
10. Roll the Roller Pulley forward, ensuring belt stays on Small, Motor Roller.
11. Continue rolling forward until Belt is fully installed.
12. Remove the zip tie.
13. Continue to roll Belt forward while adding side pressure with ngers to align as
necessary.
