1RWH<RXUPDFKLQHPD\QRWPDWFKWKHLPDJH)RUUHIHUHQFHRQO\

To remove only the Seat Back, start at Step 3.

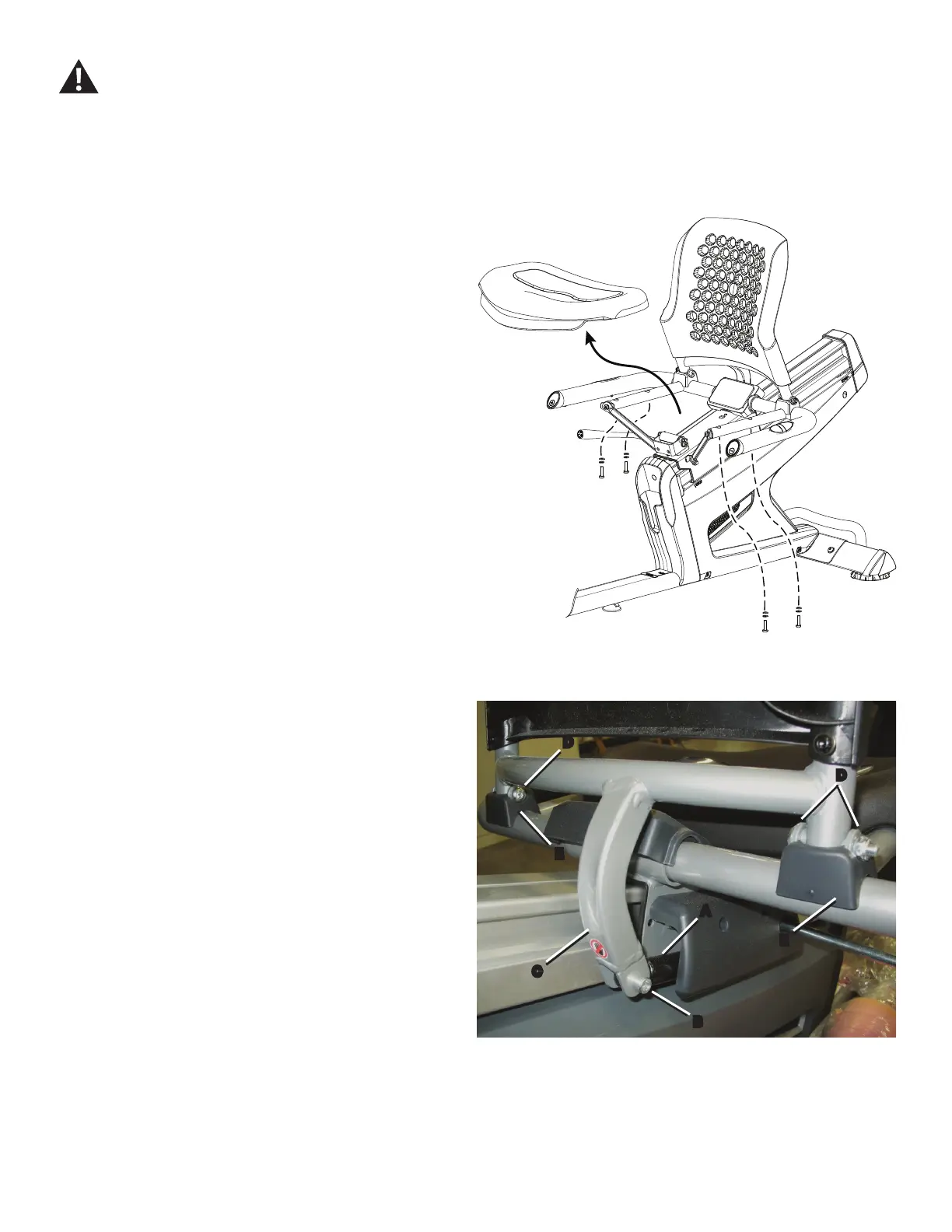

1. Using a #2 Phillips Screwdriver, loosen and remove

the hardware that attaches the padded Seat Bottom to the

Seat Frame Assembly. Set the hardware safely aside for

reassembly.

2. Remove the Seat Bottom from the Seat Frame

Assembly and set it safely aside.

If you are only replacing the Seat Bottom, go to Step 9.

If you are replacing the Seat Frame Assembly, continue to Step 3.

To remove the Seat Back:

3. 8VLQJDPPKH[ZUHQFKORRVHQDQGUHPRYHWKHEROW

(B) that attaches the Shock Assembly (A) and the Seat

Recline Arm (C) on the Seat Back. Set it safely aside for

reassembly.

4. 8VLQJDPPKH[ZUHQFKDQGPPZUHQFKORRVHQ

and remove the hardware (D) that attaches the Seat Back to

the Seat Frame assembly, and remove the Seat Back. Set

the Seat Back and hardware safely aside.

NOTICE: This step may require two people.

If you are only replacing the Seat Back, go to Step 9.

If you are replacing the Seat Frame Assembly, continue to Step 5.

To remove the Seat Frame Assembly:

5. Remove the Seat Pivot Shrouds (E) and set them safely

aside.

Disconnect all power to the machine before you service it.

Nautilus U628 Service Manual
