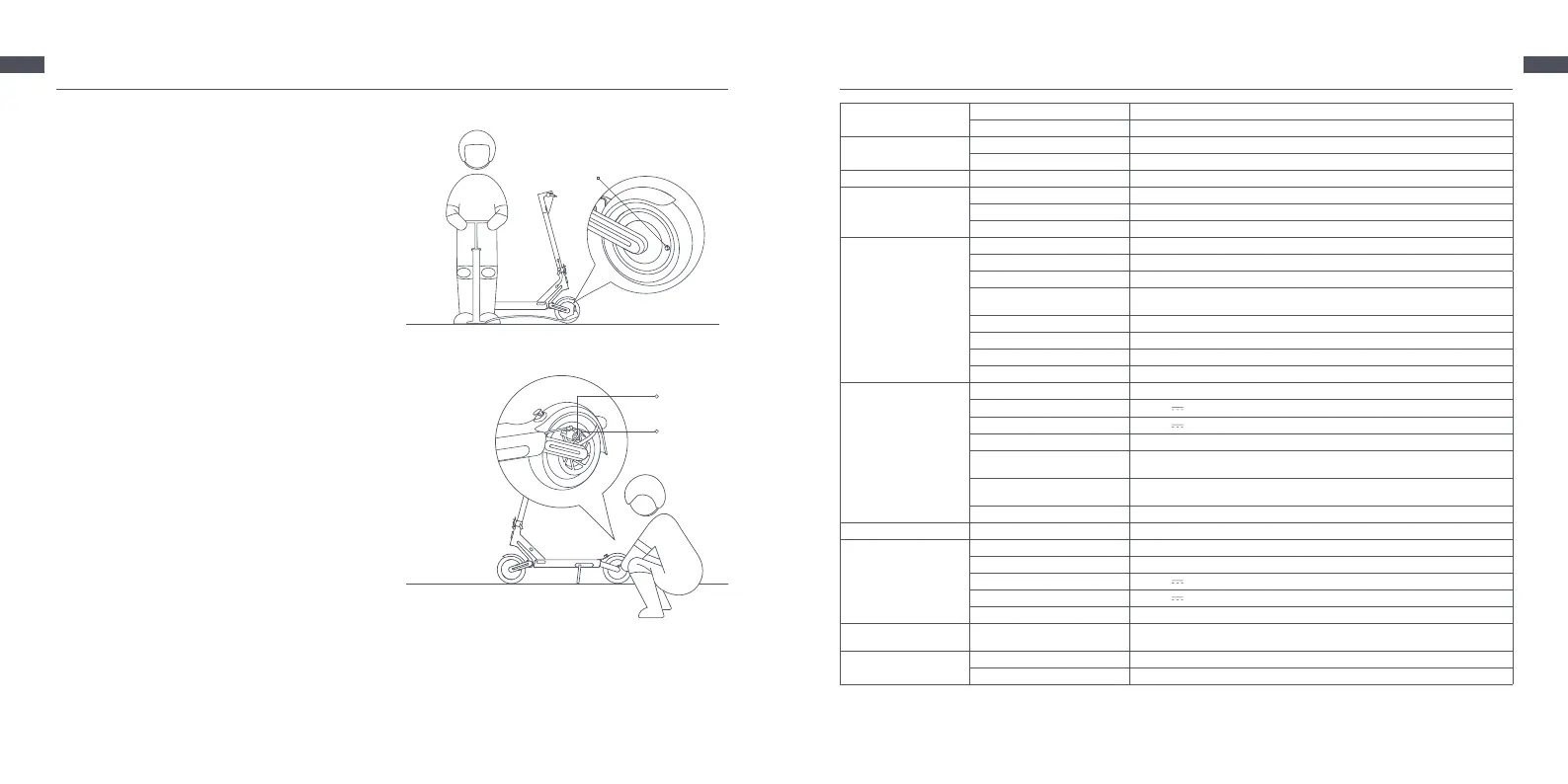

9. Care & Maintenance
In󶀅ate the Tire
Check the tire pressure every month, and in󶀅ate the tires
if the pressure is too low. The recommended tire pressure
is 45 psi.
If there is a lack of air in the front and rear tires, you
may use the extended nozzle supplied with the scooter
to in󶀅ate tires. First connect the extension nozzle with
air pump, then unscrew the front (rear) tire valve cap,
and connect the extension nozzle and the valve securely
together, then In󶀅ate the tire.
WARNING! Tire removal is very complicated. Please do
not remove the tire by yourself. Improper operation
may a󶀃ect the operation of the scooter. Please contact
professional support.
Adjust the Disc Brake
Tool: 4 mm hex key (the tool needs to be prepared
by the user).
Before adjusting, make sure the scooter is turned
o󶀃 and not being charged. During adjusting, pull
the end of the brake line to make the line tight.
Note: If the brake is too tight, use the tool to loosen
the screw by turning it counterclockwise, pull the
disc brake rocker arm outwards, and then tighten
the screw. If the brake is too loose, use the tool to
loosen the screw by turning it counterclockwise,
push the disc brake rocker arm forwards, and then
tighten the screw.
Adjusting
Screw
Disc Brake
Rocker Arm
Valve Cap
WARNING ! As with any mechanical component, a vehicle is subject to high stresses and wear. The various materials
and components may react di󶀃erently to wear or fatigue. If the expected service life for a component has been
exceeded, it may break suddenly, therefore risking causing injuries to the user. Cracks, scratches and discoloration
in the areas subject to high stresses indicate that the component has exceeded its service life and please contact an
authorized or a specialized repairer.
Product
Name NAVEE Electric Scooter S65
Model NKP2223-B32
Dimensions
Vehicle: L × W × H
[1]
48.1 × 21.7 × 49.8 in (1222 × 551 × 1266 mm)
After Folding: L × W × H 48.1 × 21.6 × 21.2 in (1222 × 549 × 539 mm)
Net Weight Vehicle Net Weight 53.6 lbs (24.3 kg)
Rider
Load Range 55.1 - 264.6 lbs (25–120 kg)
Age 16–50 years
Body Length 3’11”–6’6”(120–200 cm)
Assembled Electric
Scooter
Max. Speed 19.9 mph (32 km/h)
General Range
[2]
Approx. 40.4 miles (65 km)
Max. Climbing Angle Approx. 25%
Suitable Surfaces
Cement or asphalt road, with benches of less than 1 cm or crevices narrower
than 3 cm
Operating Temperature 14–104 ° F (-10 to 40 ℃）
Storage Temperature -4–113 ° F (-20 to 45 ℃）
IP Rating IP55
Charging Time Approx. 6.5 h
Battery Pack
Model P2301-BD5A
Nominal Voltage 46.8 V
Max. Charge Voltage 54.6 V
Rated Energy 596.7 Wh
Intelligent Battery
Management System
Over-heating, short circuit, over-current, over-discharge, and over-charge
protection
Normal Charging
Temperature Range
32–104 ° F (0 to 40 ℃）
Rated Capacity 12.75 Ah
Wheel Motor Rated Power 500 W (0.5 kW)
Battery Charger
Output Power 121.9 W (0.1219 kW)
Input Voltage 100–120 V~
Max. Output Voltage 54.6 V
Rated Output 53.0 V 2.3 A
Model
[3]
S126BP5300230U
Tire Front & Back Tires
Tubeless self-sealing tires, φ250 × 64 straight valve, with the materials of
natural carbon black and synthetic rubber
Bluetooth
Frequency Band 2.4000–2.4835 GHz
Max. RF Power 8 dBm
[1] Vehicle height: From the ground to the top of the scooter
[2] General range: Measured when there is no wind and at 77 ° F (25 ° C), the scooter is fully charged to ride at a constant speed of 9.3 mph (15
km/h) on a 󶀅at surface with a load of 165.3 lbs (75 kg）
[3] To recharge the battery, only use the battery charger provided in the package. Please see battery charger parameters in Speci󶀄cations.
10. Speci󶀄cations
