18 | Wiring the radar system
4.1 Radar scanner 2 kW: Connect the optional interconnection
cable (AA010088 / AA010089 to the scanner
If you have the standard 2 kW radar system, the scanner is supplied with the 15 m (49 ft)
interconnection cable already connected and you can ignore this section.
If you have ordered the longer 20 m (65.5 ft) interconnection cable, follow the guidelines in this
section.
Note: An interconnection cable should only be installed by a qualified radar technician.

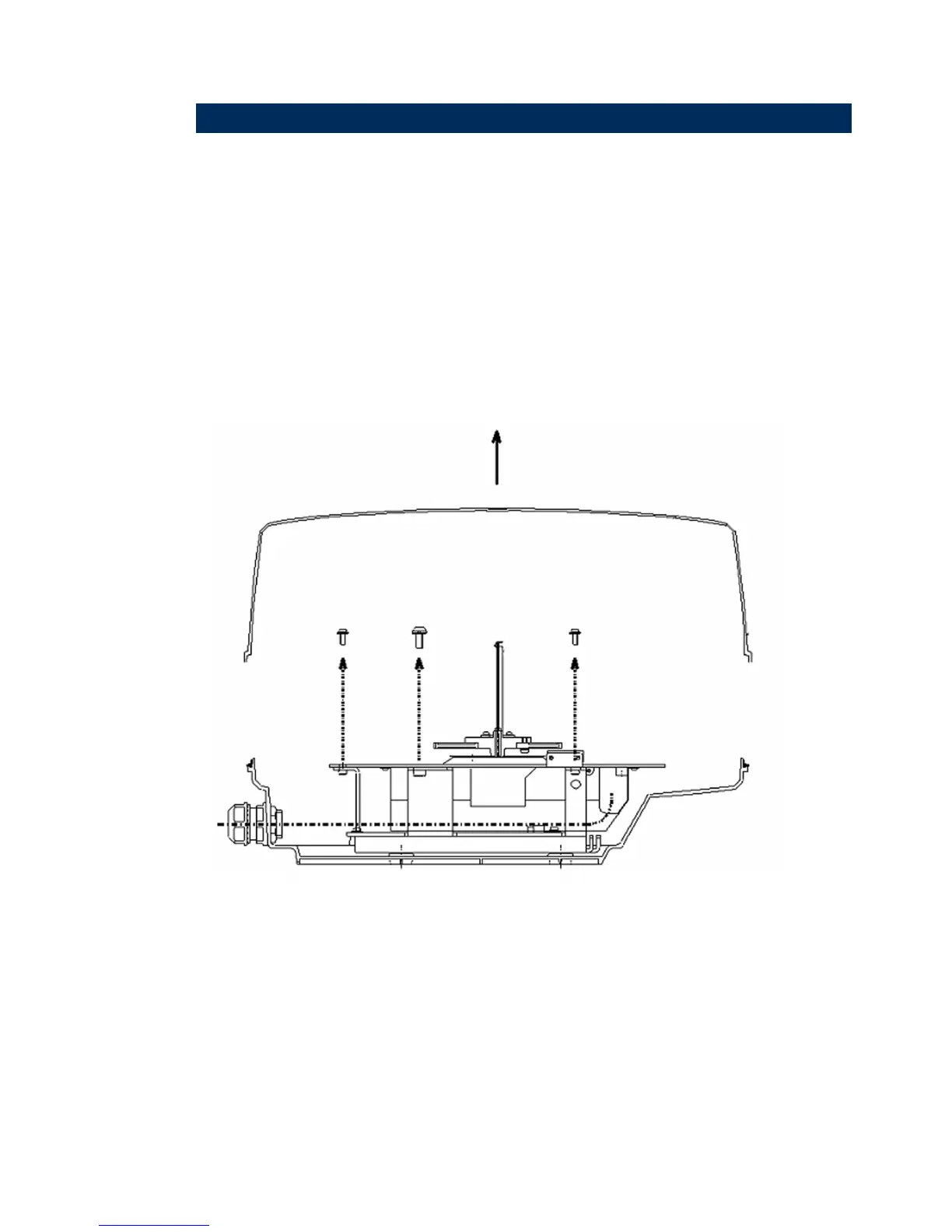

• Unscrew and remove the cover of the scanner, lifting it vertically to avoid bumping it
against the antenna.
• Carefully lift the main unit and stand it upright in the slot on the scanner casing:
4 Wirin
