Wiring the radar system | 23

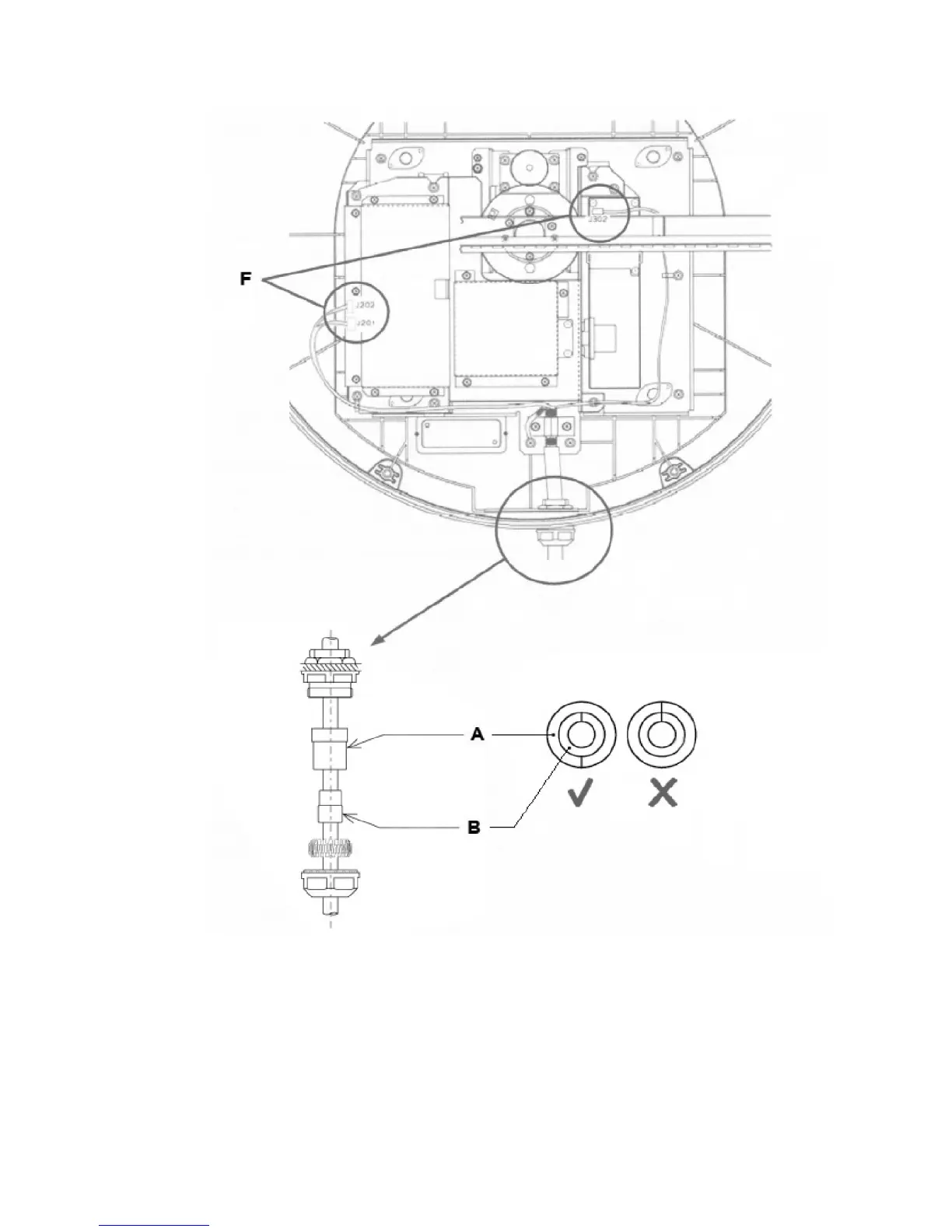

• Place the internal locking nut over the end of the scanner cable in the order shown, then

attach the three connectors on the interconnection cable to the three connectors (as

shown at F in the figure):

Connector end B to J302

Connector end C to J202

Connector end D to J201

• Tighten the strain relief clamp then connect Connector end E to one of the screws close

by to provide an Earth.
