Connect to Lowrance Displays | 59
For information about radar processor wiring and connections, Wiring guidelines (see "Wiring
the radar system" page 18).

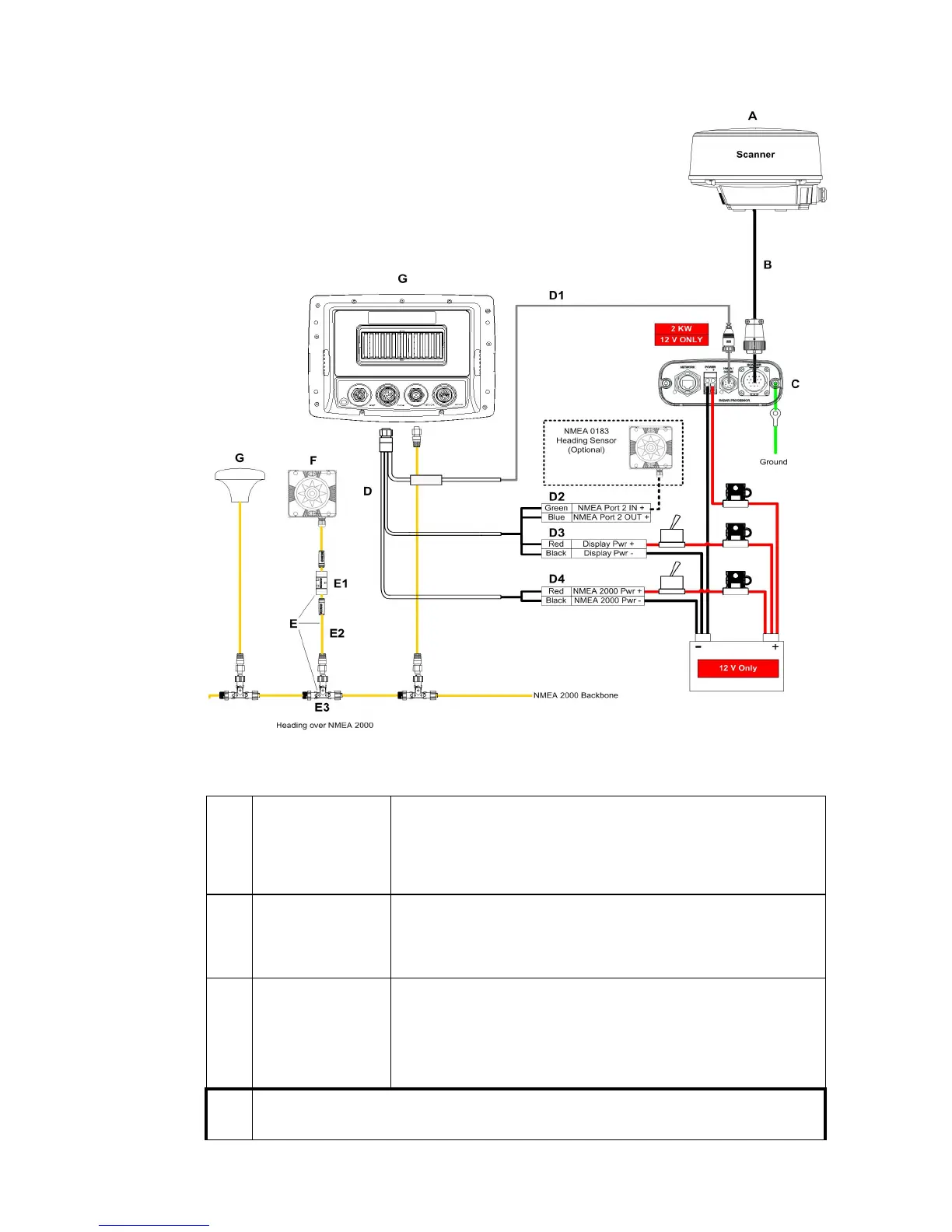

A 2 kW AA010024
4 kW AA010025
2 kW scanner comes with a 15 m (49 ft) cable attached. (B)
4 kW scanner comes with a 15 m (49ft) cable that will need to be
connected to the scanner. Cable from Scanner connects to Radar
Processor box. An optional longer cable is available but only up to 20 m
(65.5 ft). For scanner part numbers (see "Navico radar part numbers"
page 75)
B 2 kW AA010089
4 kW AA010091
Optional 20 m (65.5 ft) scanner cable . Will require disassembly of
scanner to connect. Cable has a radar processor connector on one end,
and three small terminated flat connectors on the other.
CAUTION: This cable should only be installed by an experienced radar
service technician!
C 2 kW AA010012
4 kW AA010013
Radar processor box. No cables supplied. Connects to Lowrance
displays via RS422 protocol, using optional RIM300 cable kit (D).
Optional radar accessories kit (000-0127-45)
The 2 kW system is 12 V DC ONLY 25 W max. Power connects to the
two screw terminals.
4 kW system is 12 or 24 V DC
D RIM 300 (003-7905-00) Radar Interface Module (RIM300) This cable will replace existing
power cable. Consists of a Connector which branches to three separate cables, with four
terminations. D1,D2,D3 and D4.Replacement part no. 000-0121-010.
