Connecting BSM-1 | 11
EN
Connect the transducer
For a list of compatible transducers (see "Parts List" page 18),
or contact your dealer.

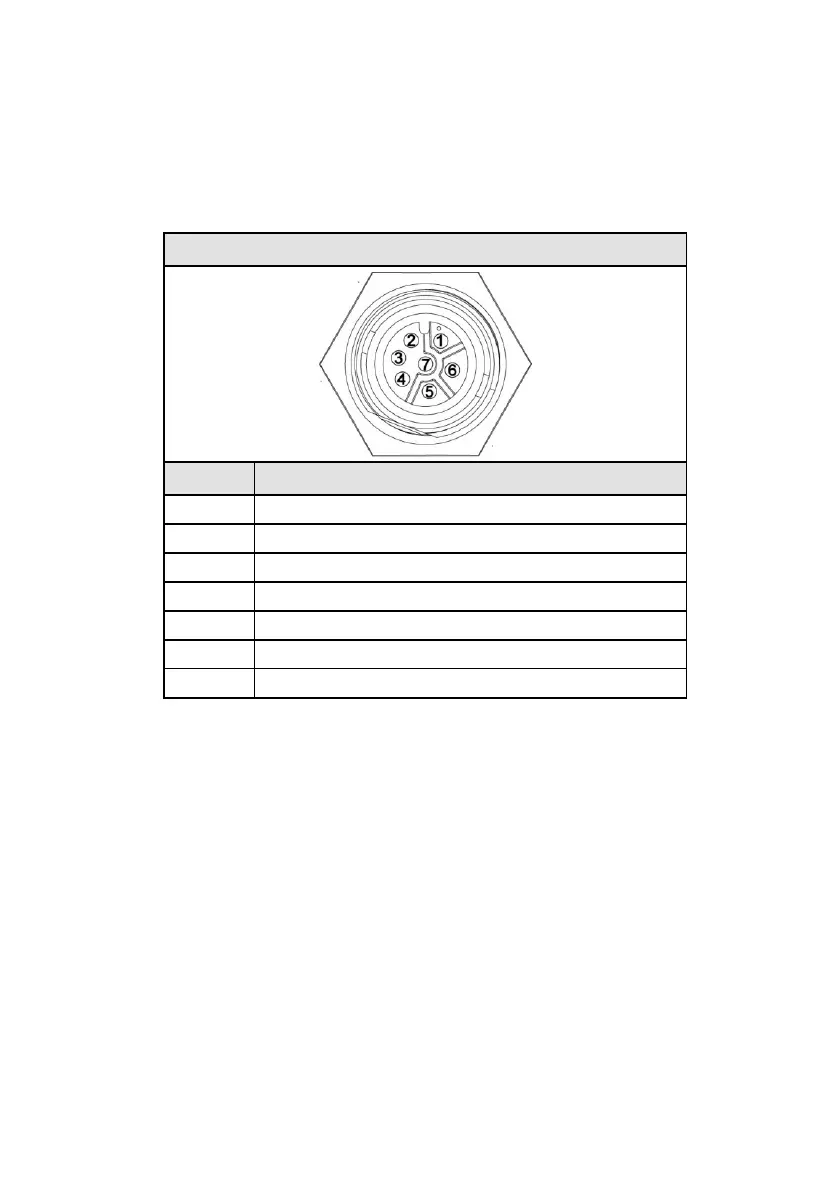

Transducer connector pin assignments
Pin
Assignment
1
Depth +
2
Speed
3
Speed power
4
Temp.
5
Depth -
6
shield
7
Temp / speed ground
