BSM-1 Indicator lights

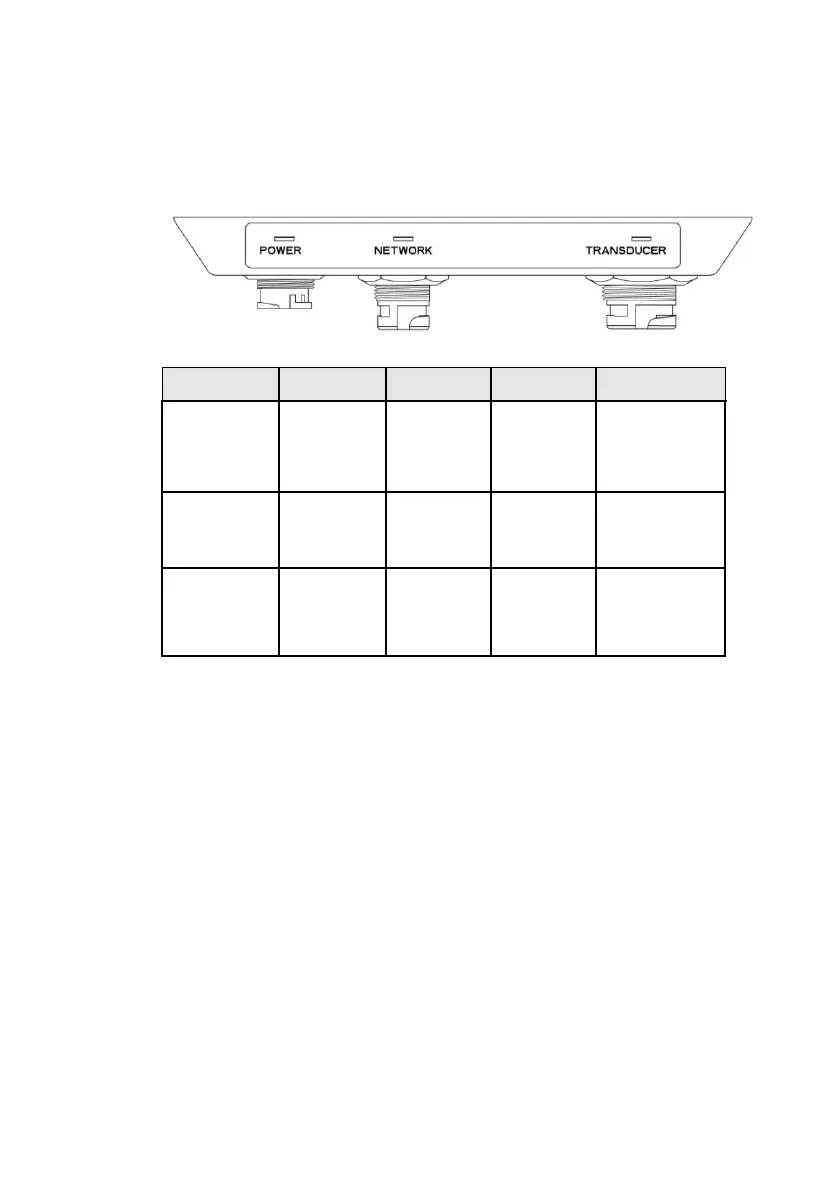

The Power, Network and Transducer status lights are located on
top of the module.
LED
Color
Code 1
Code 2
Code 3
Power
red/green
solid green
- all okay
solid red -
system
starting
blinking
red - internal
error
Network
green
traffic
indicator
n/a
n/a
Transducer
green
solid green
- all okay
blinking
green -
searching
for signal
n/a
