Medium-sized gas boiler
52

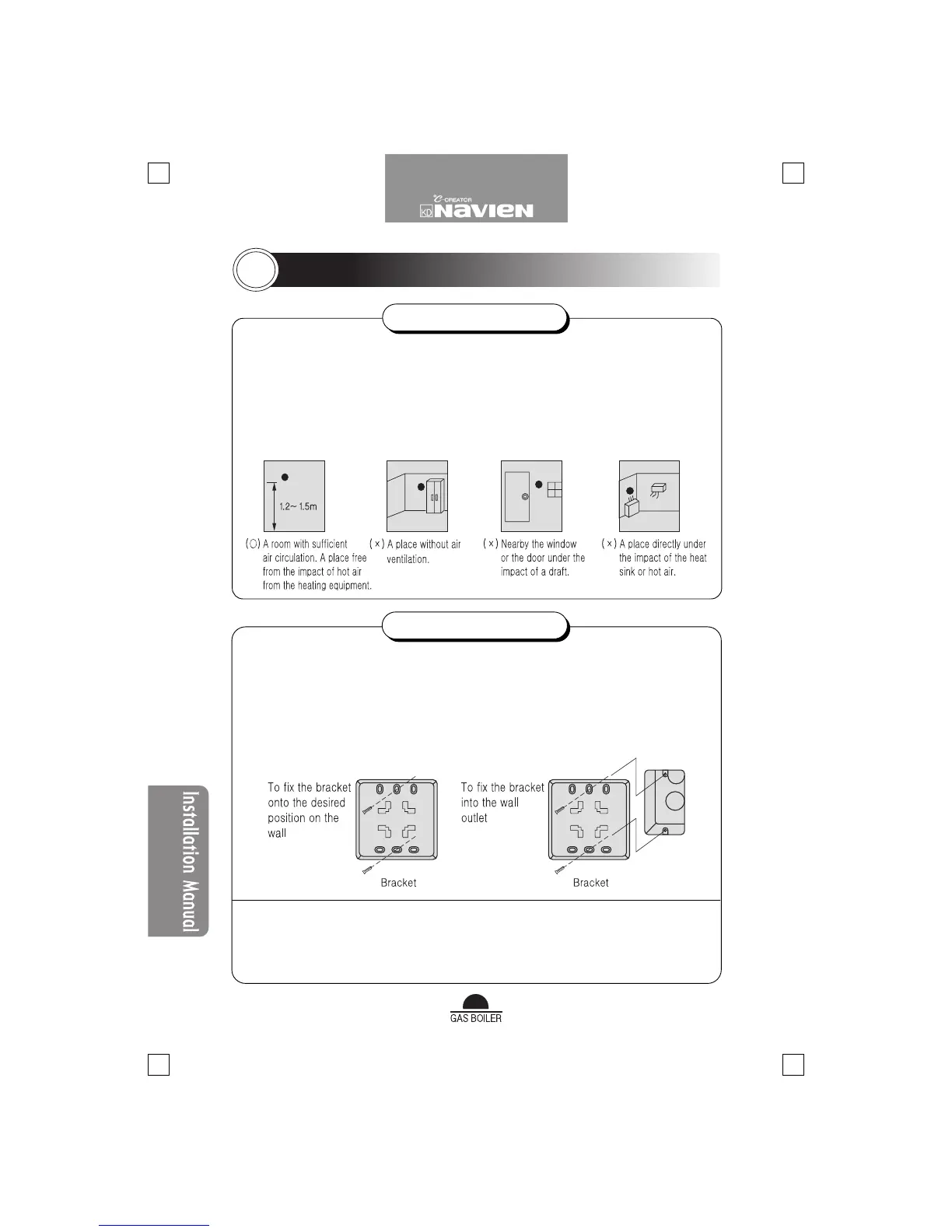

Installation of the temperature controller
Install the temperature controller on the wall of the room to be provided with
frequent indoor heating.
The temperature controller shall be installed 1.2m to 1.5m above the floor, with
sufficient air circulation.
Do not install the controller in a place nearby the frequently opened door, or
where cold wind blows, or under direct sunlight, or easily accessible by children.
(The example of the installation place, : Temperature controller
1. Connect 2 temperature controller wires from the boiler to 2 wires on the rear side
of the temperature controller securely.
2. Fix the bracket of the temperature controller onto the desired position on the wall,
or into the holes of the wall outlet using a bolt.
3. Install the temperature controller by hanging the connection wire onto the
bracket carefully in the desired direction.
Note : Do not exert excessive force while connecting the wire, and secure the bolt tightly. Pushing the
temperature controller upward will separate the temperature controller and the bracket. If the cover of
the wire peels off or the terminal connection is inferior, the temperature controller may not function
normally. Consequently, care shall be taken for the insulation treatment of the temperature controller.
8
Installation place
Installation method
