Navien KDB-535GTD - Outside Drawing of the Boiler

Medium-sized gas boiler
31

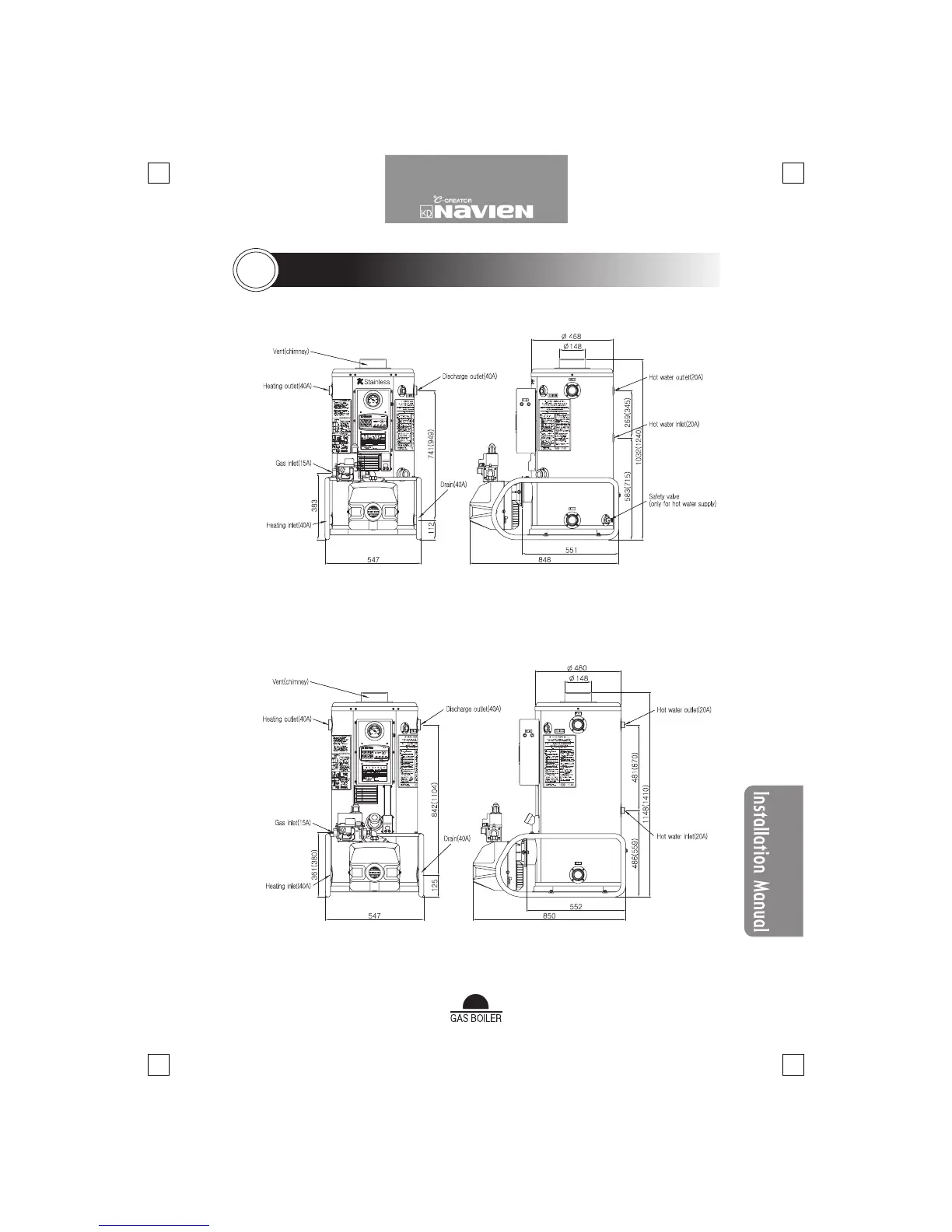

Outside drawing of the boiler
 Model no.: KDB-535GTD, GTS, GTG
※ The sizes in the blank “( )” are applied to the model no..
※ A dedicated boiler (GTS, GTG) is not supplied with the hot water inlet and outlet on the rear of
the boiler.
 Model no.: KDB-535GPD, GPS
※ The sizes in the blank “( )” are applied to the model no.
※ A dedicated boiler (GPS) is not supplied with the hot water inlet and outlet on the rear of the
boiler.
2
