Navien NPE-150S Service Manual

Technical Data 17
3.2 Dimensions

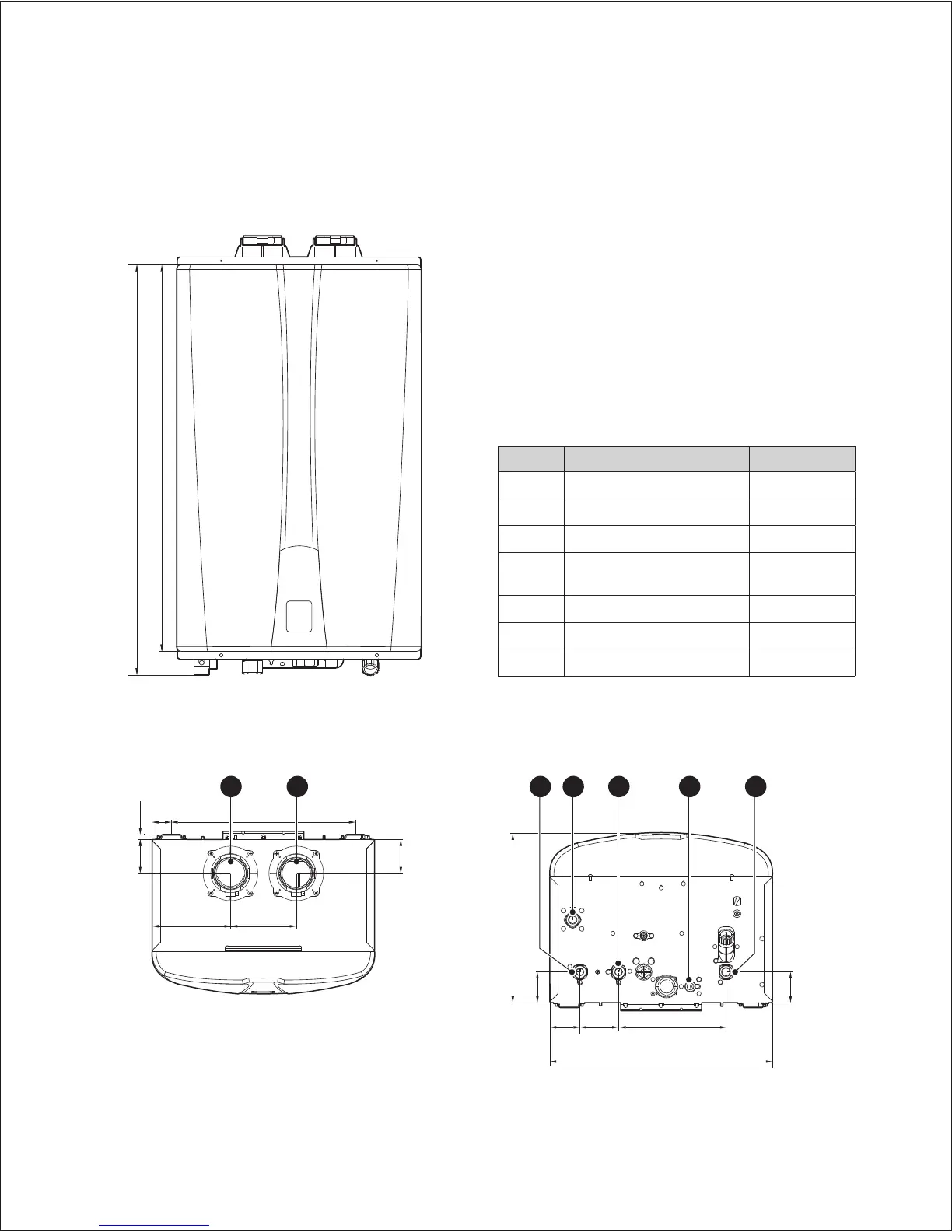

The following diagrams show the dimensions of the water heater and the table lists the supply connections.
27.4" (695mm)
28.8" (731mm)
Supply Connections
Description Diameter
A Air Intake 2"
B Exhaust Gas Vent 2"
C Hot Water Outlet 3/4"
D
Recirculation Inlet
(“A” models only)
3/4"
E Cold Water Inlet 3/4"
F Gas Inlet 3/4"
G Condensate Outlet 1/2"
Overhead View
3.0" (77mm)
6.7" (170mm)
4.5" (115mm)
0.4" (10mm)
1.5" (38mm) 14.3" (364mm)
2.6" (67mm)
A
B
Supply Connections
13.2" (336mm)
2.3"
(60mm)
3.0"
(77mm)
8.3"
(212mm)
17.3" (440mm)
2.4" (61mm)
2.4" (61mm)
C
F D G E

Navien NPE-150S Specifications

General

Brand	Navien
Model	NPE-150S
Category	Water Heater
Language	English
