Navien NPE-210A Installation Manual

8 About the Water Heater
2.5 Components

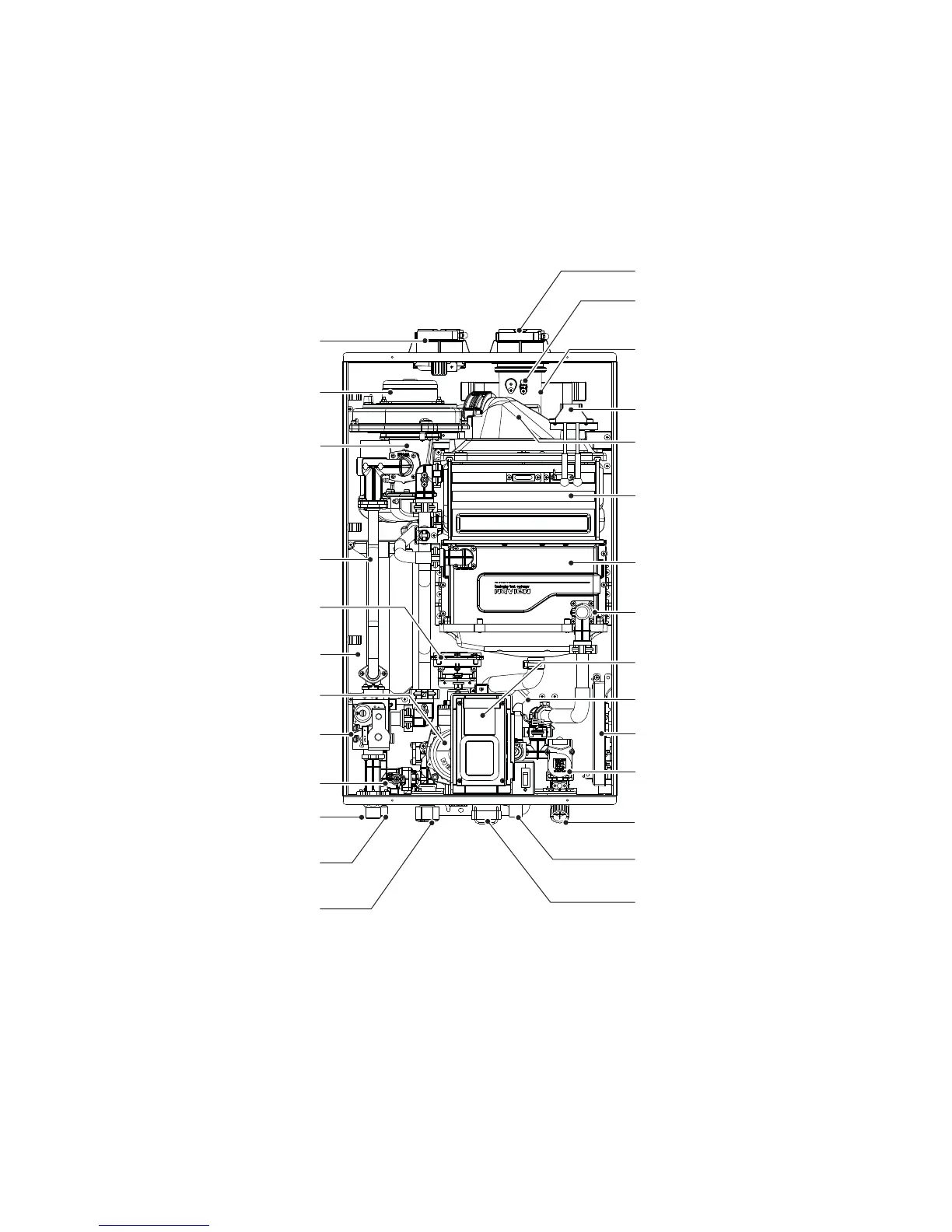

The following diagram shows the key components of the water heater. Component assembly diagrams and particular parts lists are included
in the Appendixes.
Intake Air Duct
Exhaust Duct
Exhaust Limit Temperature Sensor
Exhaust Body
Ignition Transformer
Burner
Primary Heat Exchanger
Secondary Heat Exchanger
Flow Sensor
Condensate Trap
Front Panel
PCB Box
Water Adjustment Valve
Water Inlet Filter
Condensate Drain Fitting
Condensate Drain Lid
Fan Motor
Dual Venturi
Gas Pipe
APS (Air Pressure Sensor)
Buffer Tank
Circulation Pump
Gas Valve
Gas Inlet Fitting
DHW Supply Fitting
2-Way Valve
Recirculation Inlet Fitting
[NPE-180A/ 210A/ 240A]

Navien NPE-210A Specifications

General

Type	Tankless
Fuel Type	Natural Gas or Propane
Energy Factor	0.97
Venting	PVC, CPVC
Water Connection Size	3/4" NPT
Gas Connection Size	3/4" NPT
Voltage	120V
Temperature Range	98°F - 140°F
Ignition Type	Electronic
Warranty	15 years heat exchanger, 5 years parts
Energy Efficiency	Condensing
