1.DownstreamInjection(DSI)unit

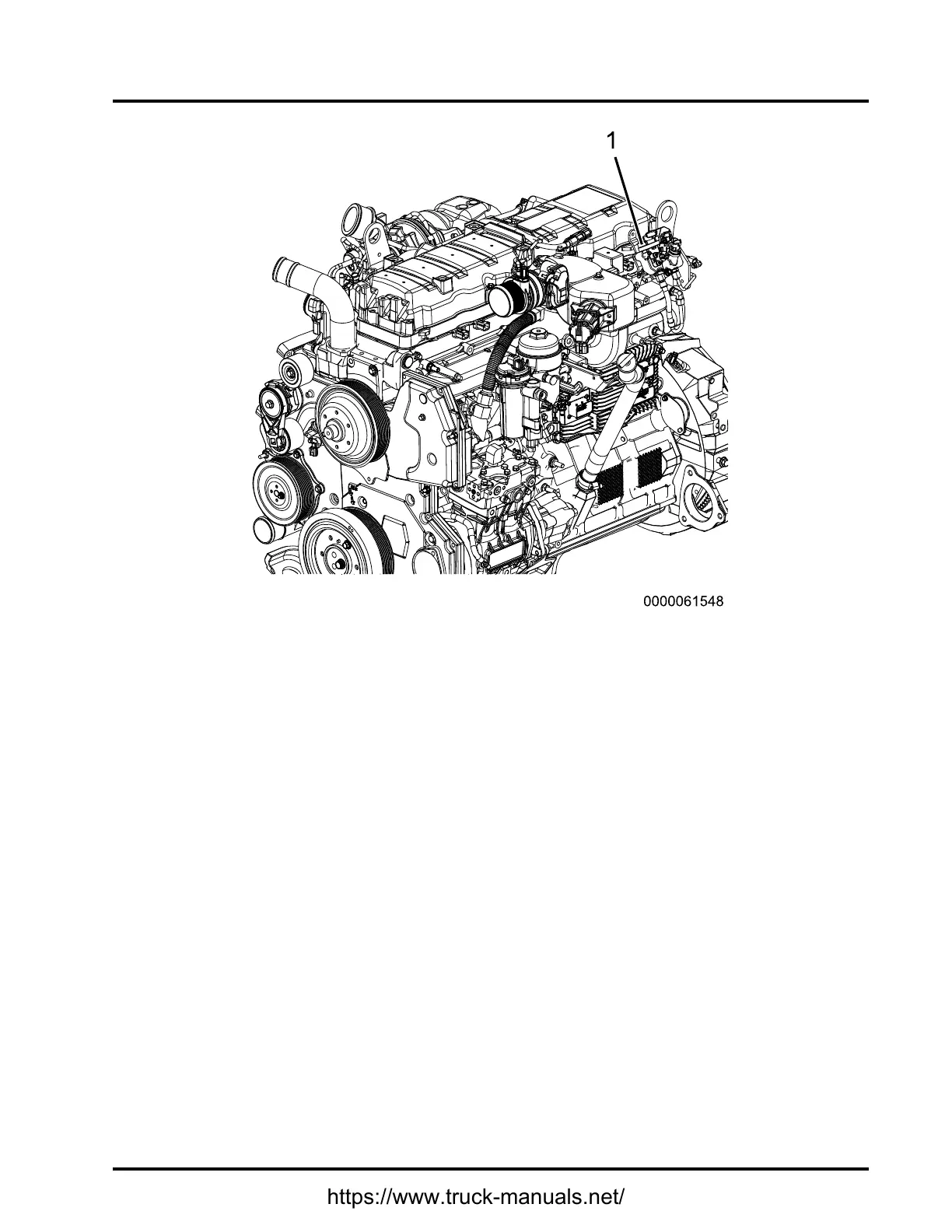

Figure14DSIUnit(MaxxForce®DT ,9and10Engines)
DownstreamInjection(DSI)Unit
TheDSIunitisconnectedtothecleansideofthelow-pressurefuelsystem,andwillprovideametered
amountoffueltotheAftertreatmentFuelInjector(AFI).TheDSIunitprovidespressurizedfuelinjectionpulses
totheAFI.TheAFIisamechanicalpoppettypeinjector,andwillonlyinjectfuelwhenfuellinepressure
isincreasedaboveaspecicpressure.
