DIAGNOSTICMANUAL
1.ExhaustGasRecirculation(EGR)
valve

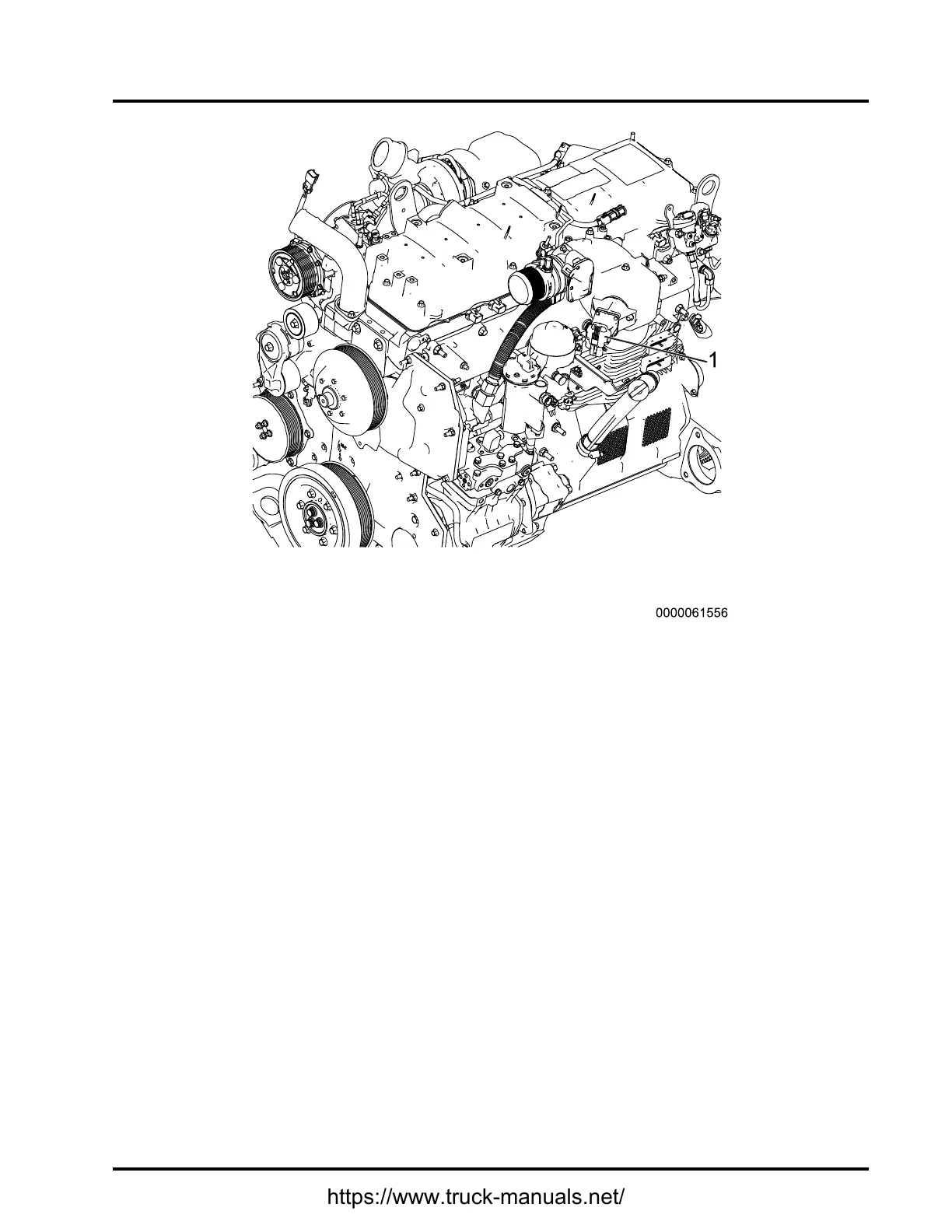

Figure18EGRSystem(MaxxForce®DT,9and10Engines)
ExhaustGasRecirculation(EGR)Valve
TheEGRvalvereceivesthedesiredvalvepositionfromtheECMforexhaustgasrecirculation.TheEGR
valveregulatestheowofexhaustgasesthroughtheEGRsystem.
71
