DIAGNOSTICMANUAL

1.DownstreamInjection(DSI)unit

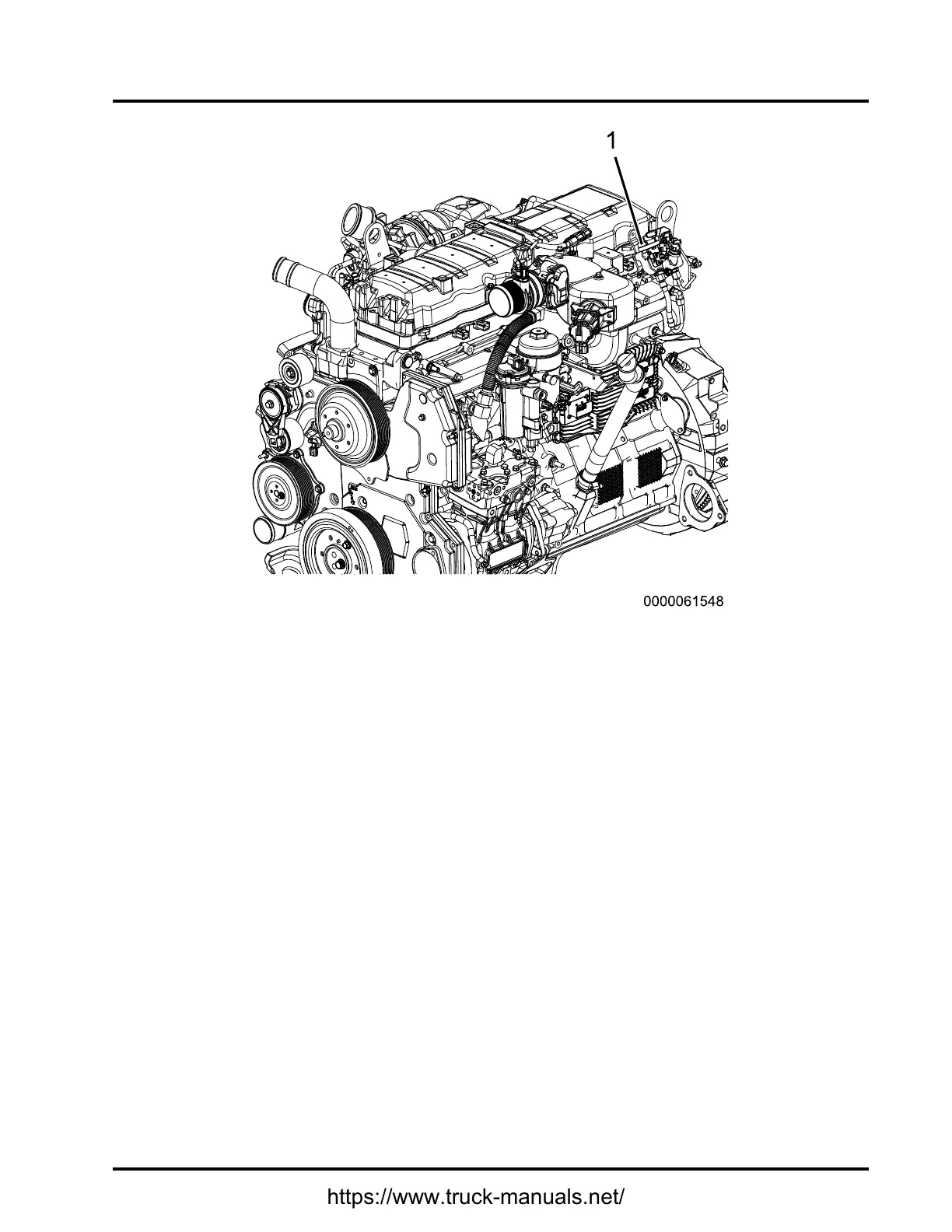

Figure14DSIUnit(MaxxForce®DT ,9and10Engines)

DownstreamInjection(DSI)Unit

TheDSIunitisconnectedtothecleansideofthelow-pressurefuelsystem,andwillprovideametered

amountoffueltotheAftertreatmentFuelInjector(AFI).TheDSIunitprovidespressurizedfuelinjectionpulses

totheAFI.TheAFIisamechanicalpoppettypeinjector,andwillonlyinjectfuelwhenfuellinepressure

isincreasedaboveaspecicpressure.
