NCR 5635 - Dispenser Motor Drive Belt Tension

Maintenance Instructions
Adjustments
NCR 5635 Spray Currency Dispenser Service Manual 4-45
NCR - CONFIDENTIAL AND PROPRIETARY
Use pursuant to Company Instructions
Dispenser Motor
Drive Belt Tension
4

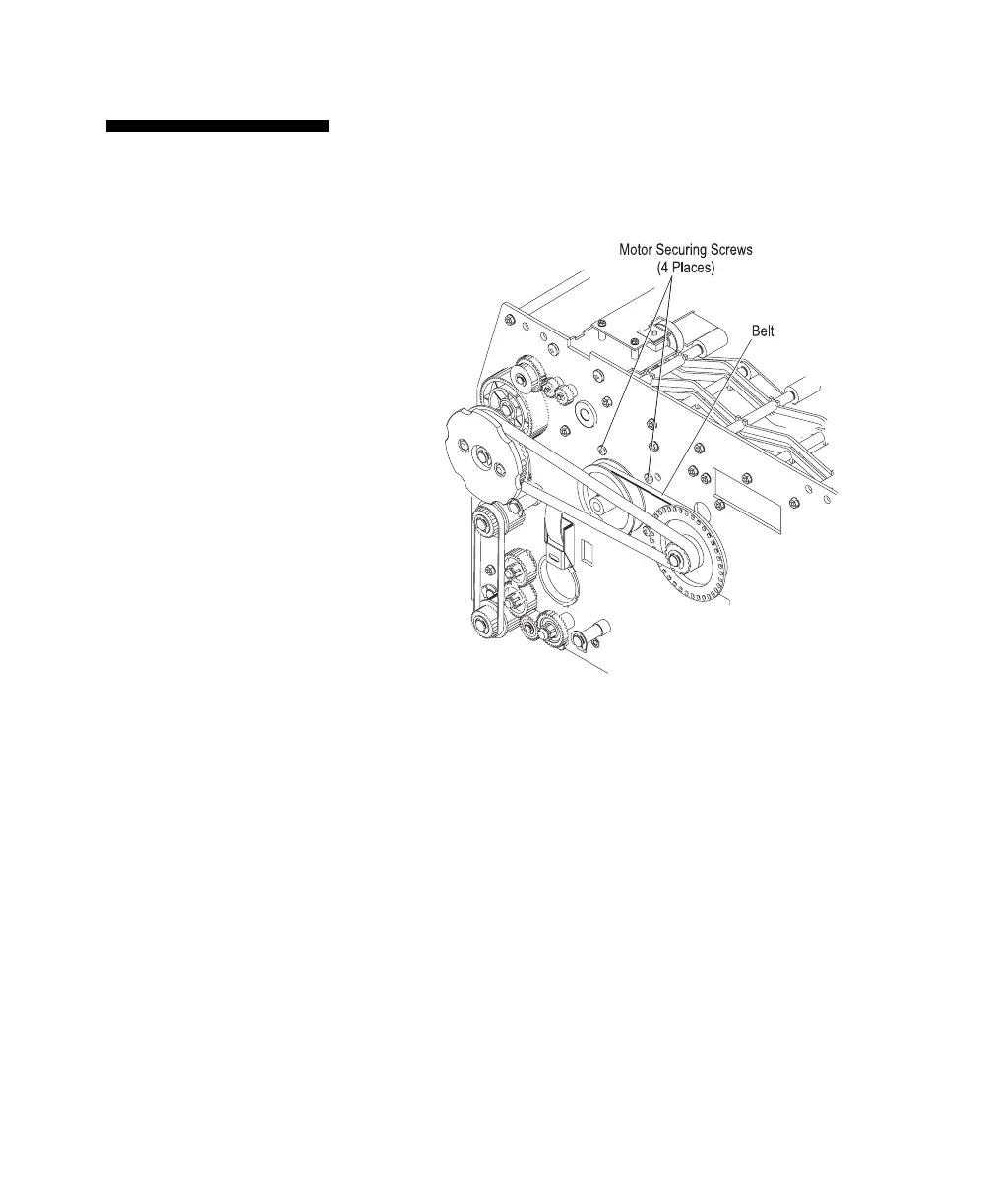

The only adjustment to the spray presenter assembly is for the
Dispenser Motor drive belt tension.
1
On the spray presenter, loosen the transport motor mounting
screws.
2
Adjust the belt tension to give a mid-span deflection of
3mm
(0.12in) for a force of 3 Newtons (306g
or
10.8oz.) applied at
mid-span.
3
Maintaining this adjustment, tighten the transport motor
mounting screws.
