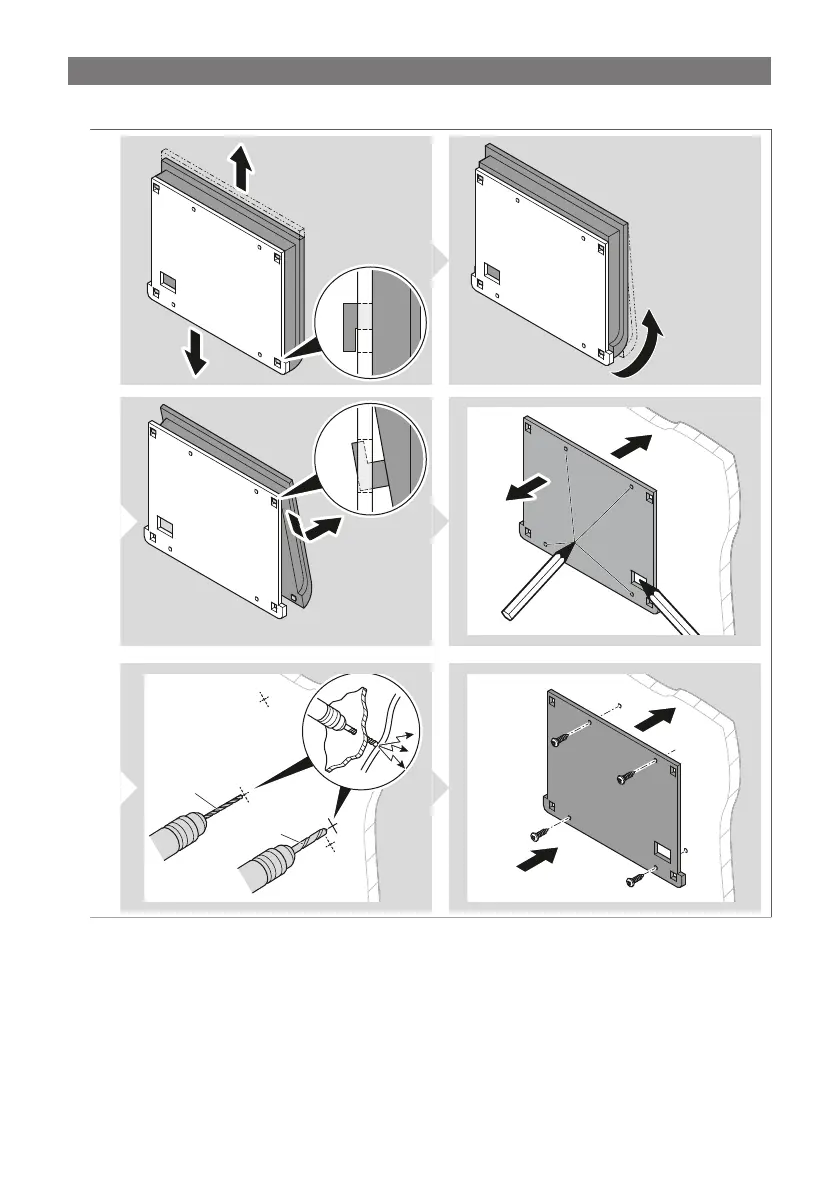

1. Remove the display cover from the fastening frame.
4
1.
4.
2.
3.
Ø 3
Ø 8
2.
1.
4x
1x
2.
4x
1.
2. Place the fastening frame on the wall chosen for installation and marks the locations of the holes for the fixing
screws (diameter 3 mm) and hole for the communication cable pass through (minimum diameter 7.2 mm)
3. Drill the holes and screw the fastening frame to the wall, using the screws provided. Ensure that they do not pro-
trude once screwed in.
