NDS SUNCONTROL2 User Manual

7
CAUTION
• For electrical connections, use cables of appropriate cross-
section: from 6 mm
2
.
• In case of a long stay, it is advisable to disconnect the
negative cable from the device to completely neutralize any
residual consumption that may inadvertently discharge the
leisure battery.
N° PIN
CONNECTION
1
Display Connection
2
Secondary connection (for future connections)
3
Solar Panel Negative poles
4
Batteries Negative poles
5
Solar Panel 1 Positive pole
6
Solar Panel 2 Positive pole
7
Leisure battery Positive pole (B1)
8
Starting battery Positive pole (B2)
9
Dip Switch - Charging curve selection
10
Temperature sensor connection for B1 (optional)

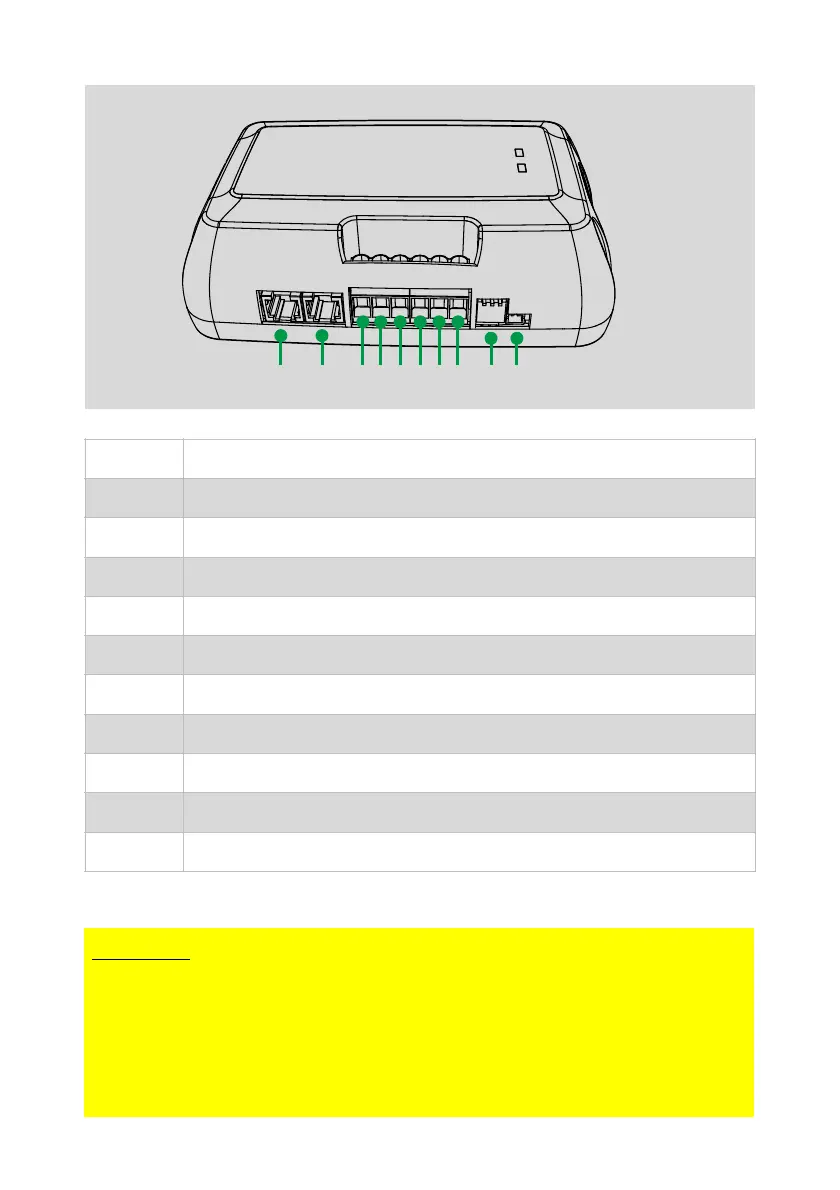

Fig.2
1
2
3
4
5
6
7
8
9
10
