5-17

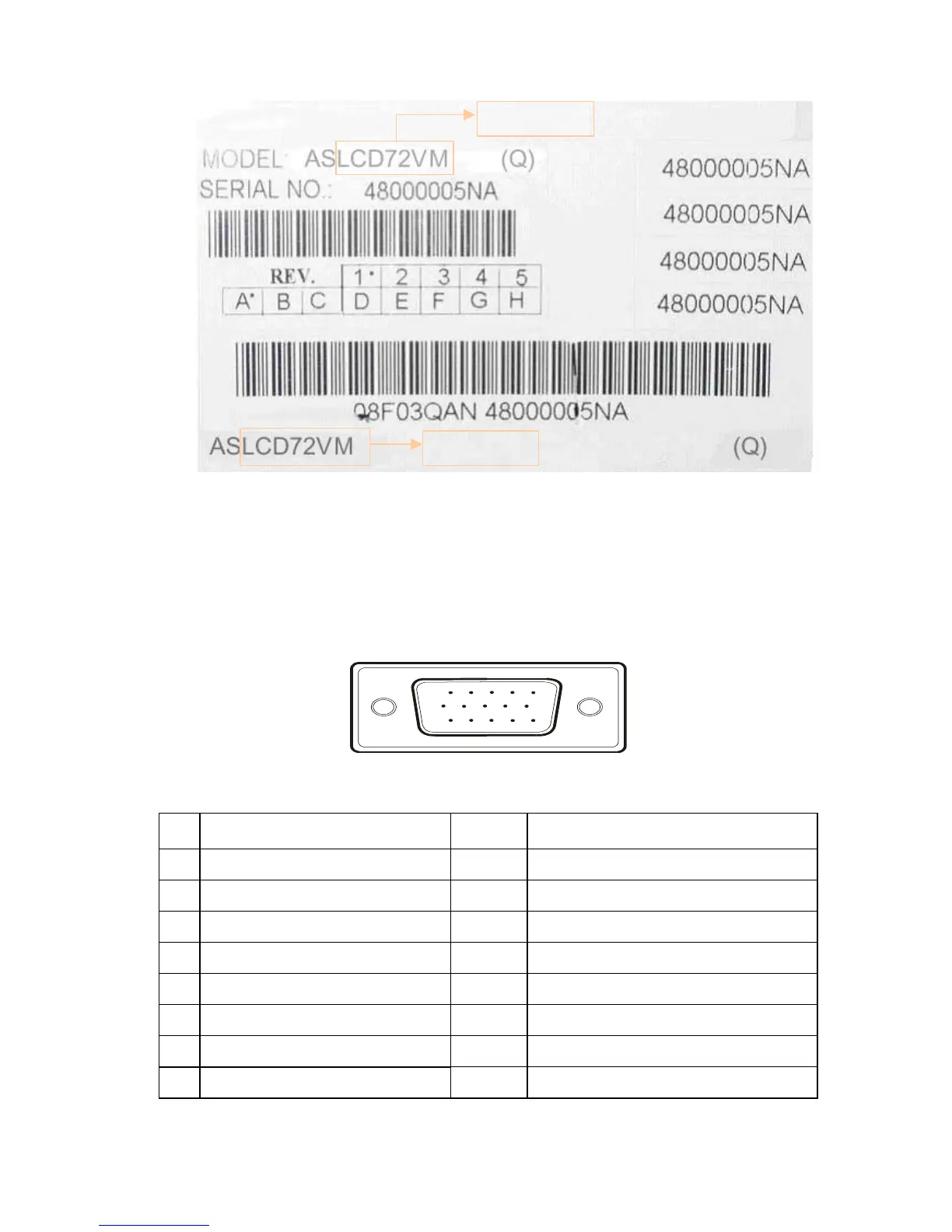

Attached 1: Barcode sample
Sign: 1. Make sure the foreman or the charge should check the SN contents of the first set of each schedule
OK and lock.
2. If the model name is unconformity with the fact code, please inform the MK and RD-LCD
to affirm.
6. Analog D-SUB Connector
15
6
10
11 15
Pin Meaning Pin Meaning
1
Video input red
9
+5V (DDC)
2
Video input green
10
Sync. ground
3
Video input blue
11
Ground
4
Ground
12
DDC-Data
5
Ground
13
H. sync
6
Red video ground
14
V. sync
7
Green video ground
15
DDC Clock
8
Blue video ground
Model name
Model name
