5-10
5. Inspection of PLUG & PLAY Communication and OSM "MONITOR INFORMATION"
for Model Name / Serial Number

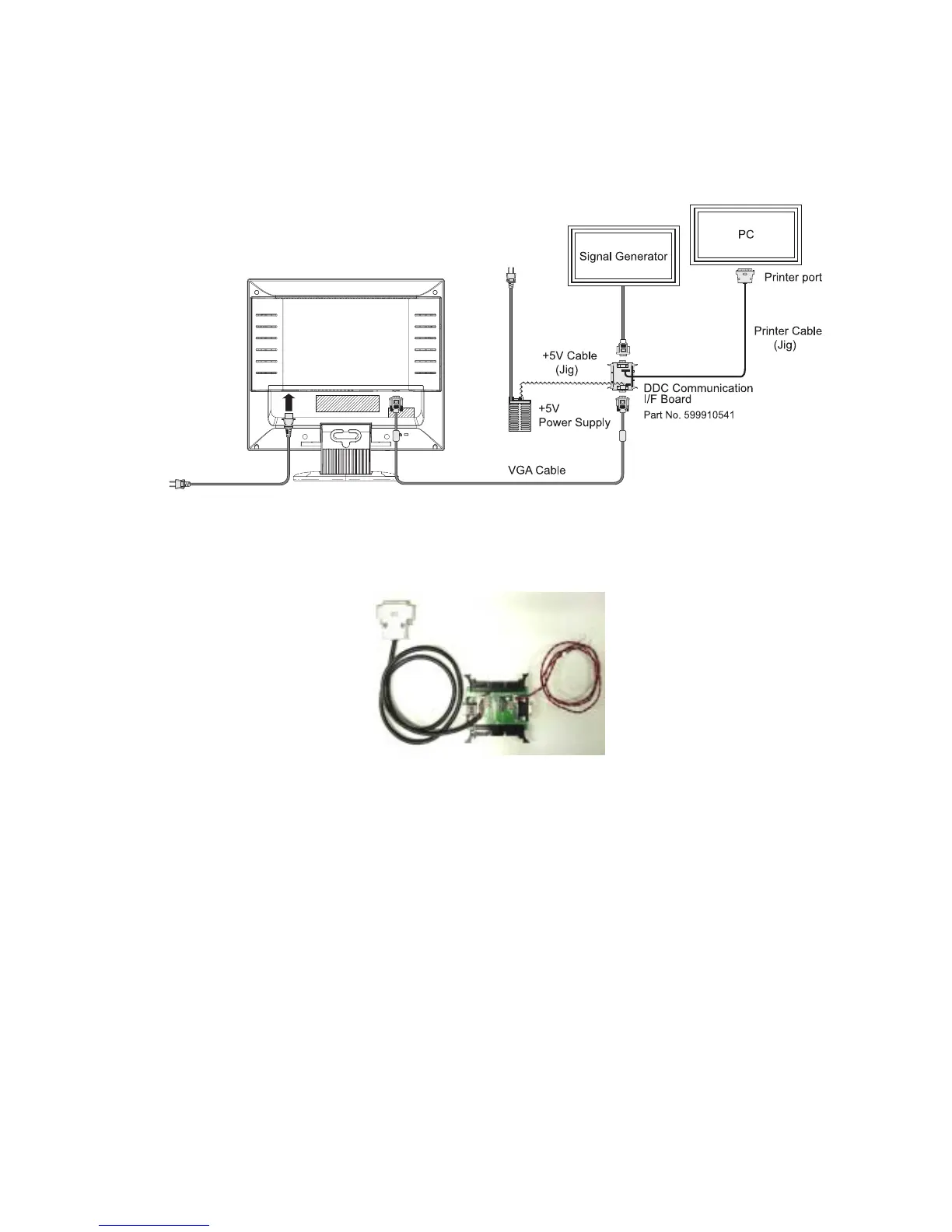

5.1 System Connection
This system should be connected as shown below.
DDC Communication I/F BOARD
5.2 Input Signal
Horizontal synchronization frequency: Not specified.
Vertical synchronization frequency: Not specified.
5.3 Program
Service tool: Service tool Ver. W3.22
To Next Page
