English-13
English
Connections
NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a
loss of the monitor image.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.

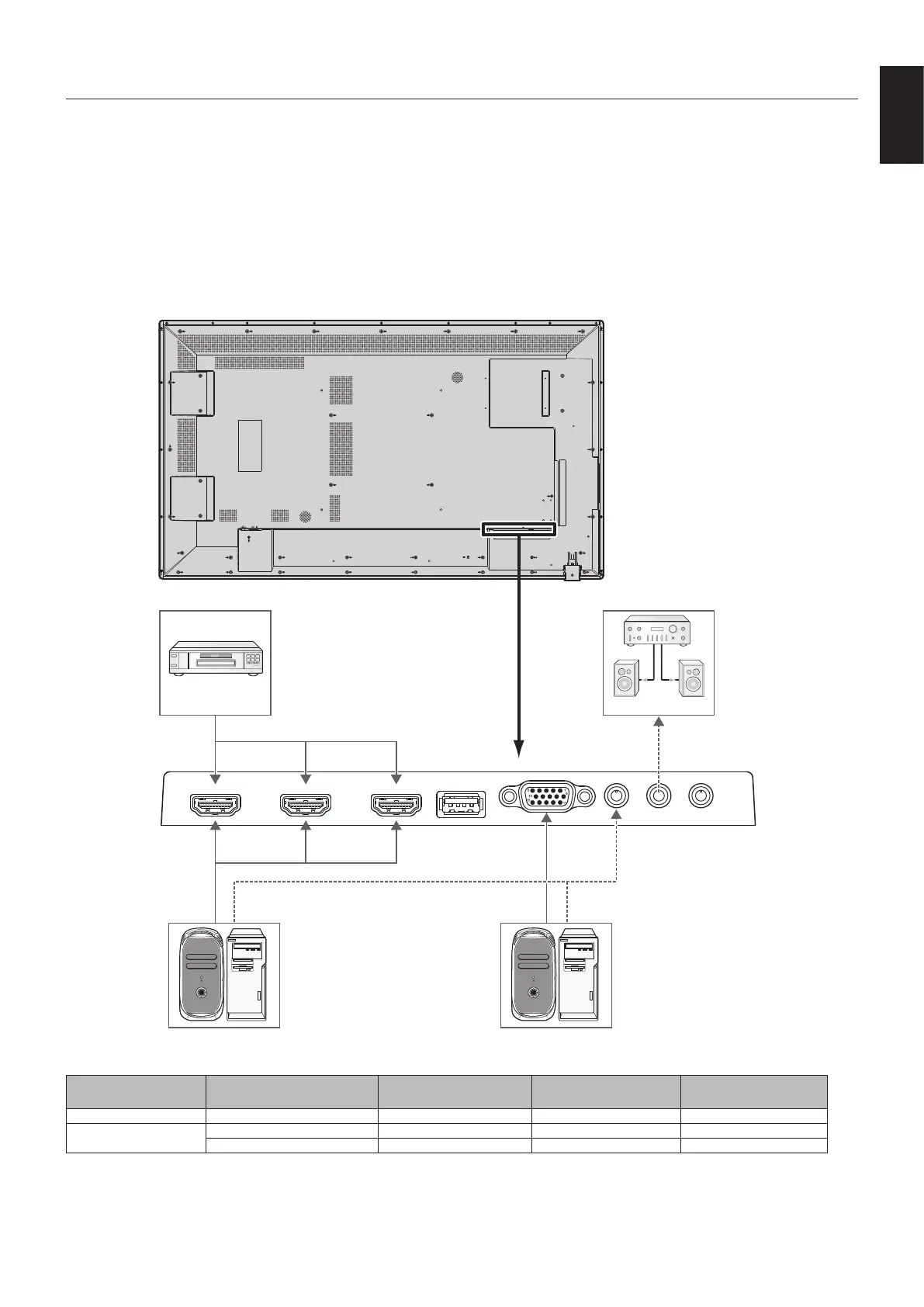

Wiring Diagram
HDMI1 HDMI2 HDMI3
USB
D-sub
Audio In
Audio Out
Solid lines = video signal
Dotted lines = audio signal
Stereo Amplifier
PC(Digital) PC(Analog)
DVD Player
(HDMI)
Connected equipment Connecting terminal Input signal name
Connecting
audio terminal
Input button
in remote control
AV HDMI HDMI HDMI HDMI
PC
VGA (D-SUB) VGA LINE IN VGA
HDMI HDMI HDMI HDMI
To Next Page
