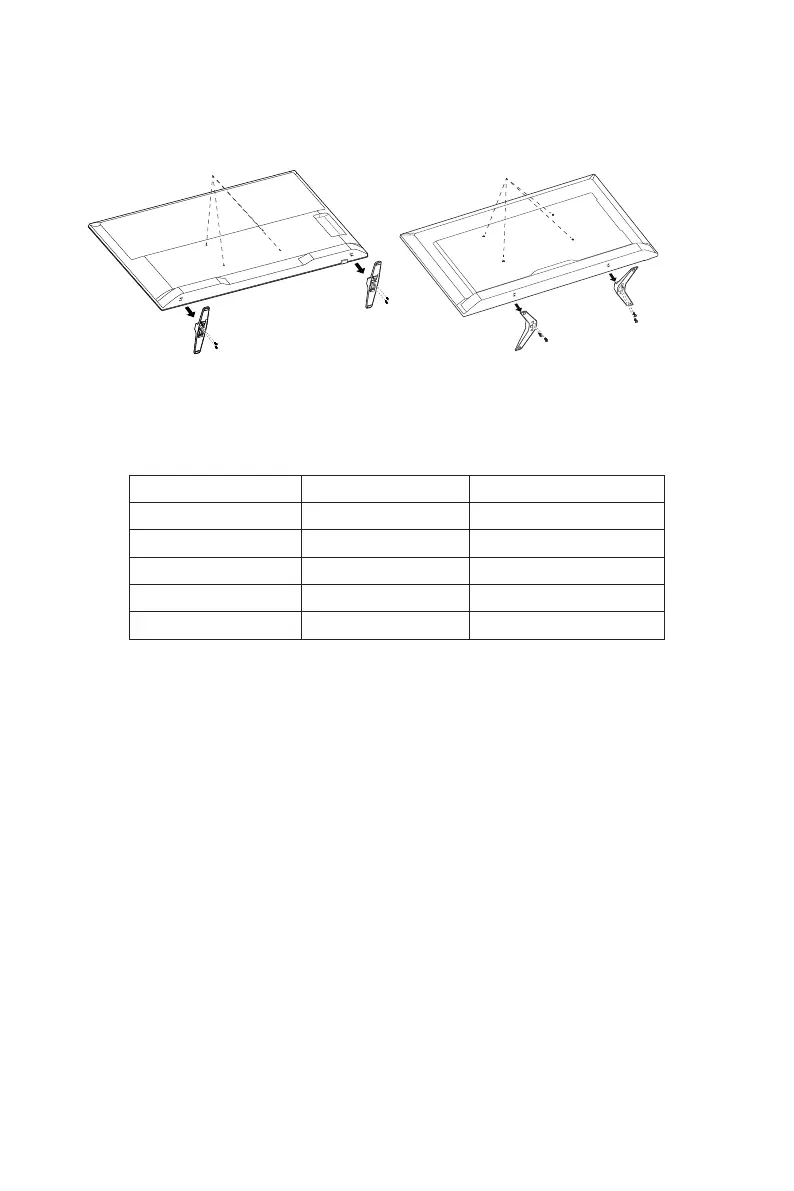

Removing the Stand base
E657Q E557Q / E507Q / E437Q / E327
VESA Hole
Stand Screw
Stand Screw
VESA Hole
1. Loosen the screws on the button of the stand base, and remove the stand
base.
2. Secure the wall mount bracket to the back of your display using four M4
screws (for 32" only) or M6 screws(for 43"/50"/55"/65" only).
screen size (inches) required pitch (mm) VESA hole depth
65 400 x 200 4 x M6 (17 mm)
55 400 x 200 4 x M6 (17 mm)
50 400 x 200 4 x M6 (17.5 mm)
43 200 x 200 4 x M6 (14.5 mm)
32 100 x 100 4 x M4 (16 mm)
NOTE:
Wall mounting solution is not included with the unit and is sold separately. Contact your
NEC representative for details.
It is necessary to provide screw of appropriate length (Wall mount bracket thickness +
VESA hole depth).
