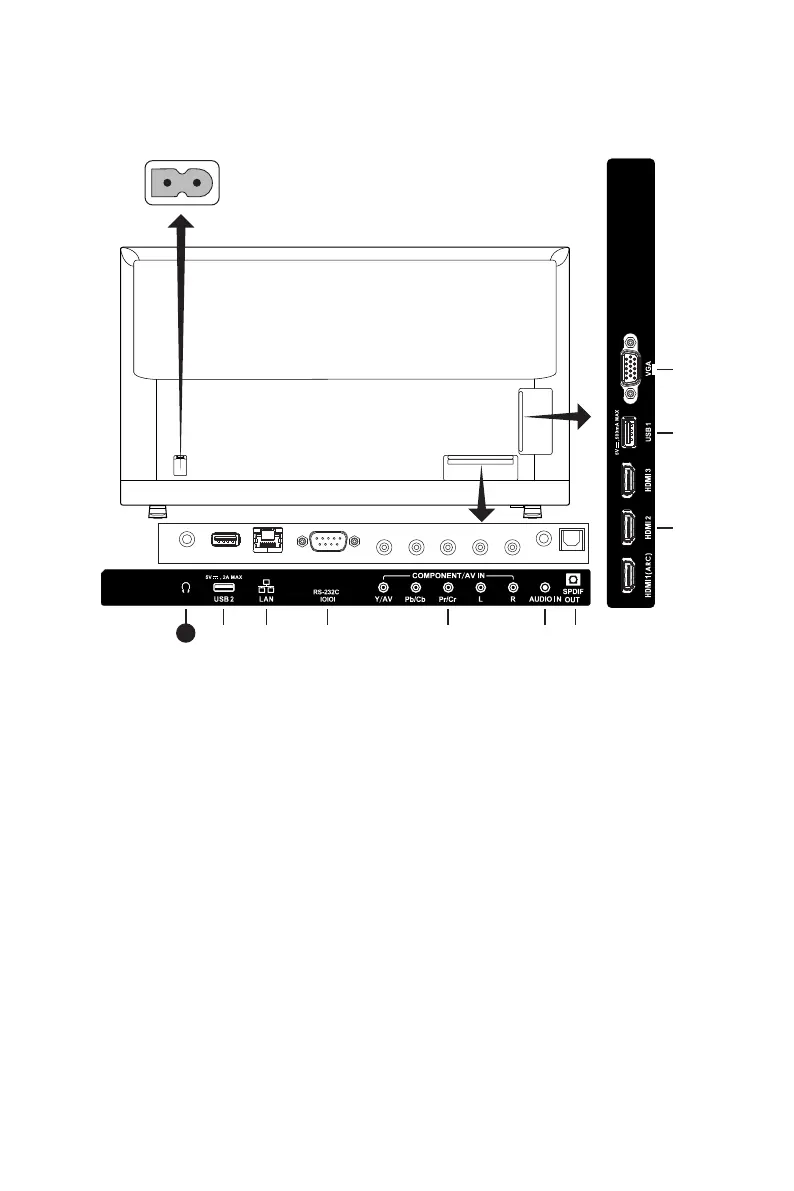

Source Connection Guide
E657Q
10
AC POWER
1. VGA – Connect to your PC video.
2. USB1 port – Used for accessing photo, music, and movie les.
Please make sure the connector shape and orientation is correctly
aligned when connecting the USB device or cable.
3. HDMI (HDMI-1, HDMI-2, HDMI-3) – Connect to your HDMI devices.
HDMI-1 terminal can support ARC (Audio Return Channel) function.
ARC output does not work sound effect (Sound mode, Balance, Bass,
Treble on OSD).
4. SPDIF OUT- Use a digital audio cable to connect to stereo home
theater system. SPDIF output does not work sound effect (Sound mode,
Balance, Bass, Treble on OSD). SPDIF output does not work Auto
function of Internal Speakers on OSD.
5. AUDIO IN – Connect to your PC audio.
6. COMPONENT / AV IN –
• Component: Connect to digital video equipment to the Video Green (Y),
Blue (Pb), Red (Pr) jacks, and matching Audio White (L) and Red (R)
jacks.
• Composite: Connect to digital video equipment to the Video Green (AV),
jacks, and matching Audio White (L) and Red (R) jacks.
