NEC IP3NA-12TXHBT - Bluetooth Handset

1 - 19

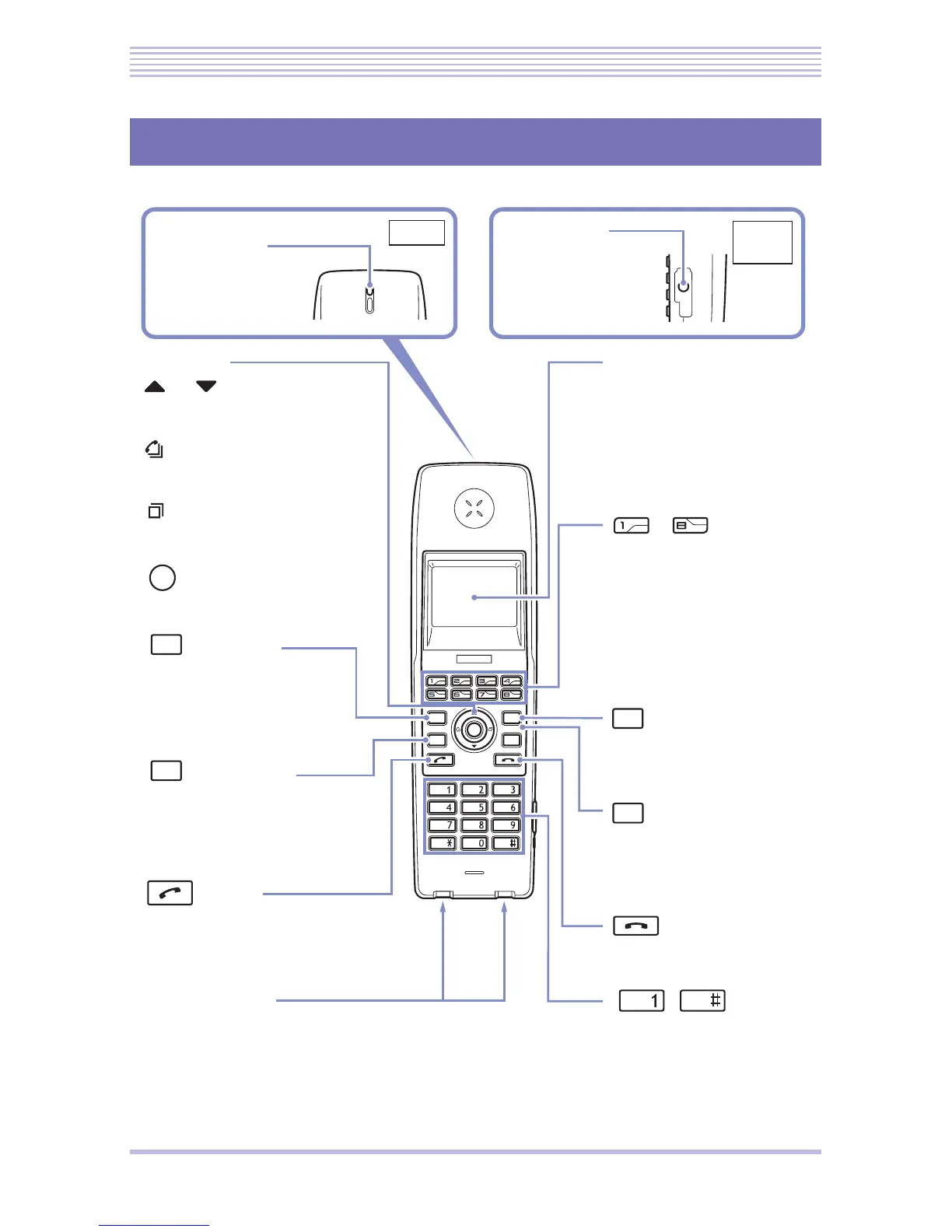

Component Names and Functions
Bluetooth
®
Handset
Back
Right
side
HOLDTRF
CONF Recall
@ ABC DEF
GHI JKL MNO
PQRS TUV
WXYZ
HOLD
Recall
FNC
CONF
FNC
TRF
㨇 ޓޓ㨪ޓޓ 㨉
㨇ޓޓ㨉
㨇ޓޓ㨉
㨇ޓ 㨉
㨇ޓޓ 㨪ޓ ޓ㨉
[ ޓ ]㨪[ ޓ ]
[ޓ ]
[ޓ ]
[ ޓ ]
Incoming call/
charging lamp
Headset jack
Cursor key
Used to accept.
Use to adjust tone volumes or
display densities.
Volume up/down key:
Received History key:
Use to view a history of
terminating calls.
Enter key:
Call History key:
Use to view a history of originating
calls.
Indicates the status
of a terminating call
and the status of
charging.
Accepts a wire
headset. (with
a cover)
LCD screen
(with backlight)
Displays various information
according to the status of the
terminal, such as a clock,
remote party information,
originating and terminating call
histories and menus.
Line keys 1 to 8
(with lamp)
Access the functions
pre-programmed on function
buttons 1 to 8 on the cradle.
Also display the status of the
functions pre-programmed on
the buttons.
Hold key
Use to place extension or
central office line calls on hold.
Recall key
Use to forward calls on a
private exchange (PBX) or
receive the call waiting service
feature.
End key
(Disconnect)
Use to clear a call.
Dial keys 1 to # (with backlight)
Charging terminals
@
㨇ޓޓ㨉
㨇ޓޓ㨉
Transfer key
Use to forward a call to an
extension or central office line
or to lock the button of the
Bluetooth
®
handset.
Conference key
(with lamp)
Use to make a conference call.
However, the operation may differ
depending on your system.
Talk key
(with lamp)
Use to originate a call to an
extension or central office line or
answer a terminating call.
㨇ޓޓ㨉
