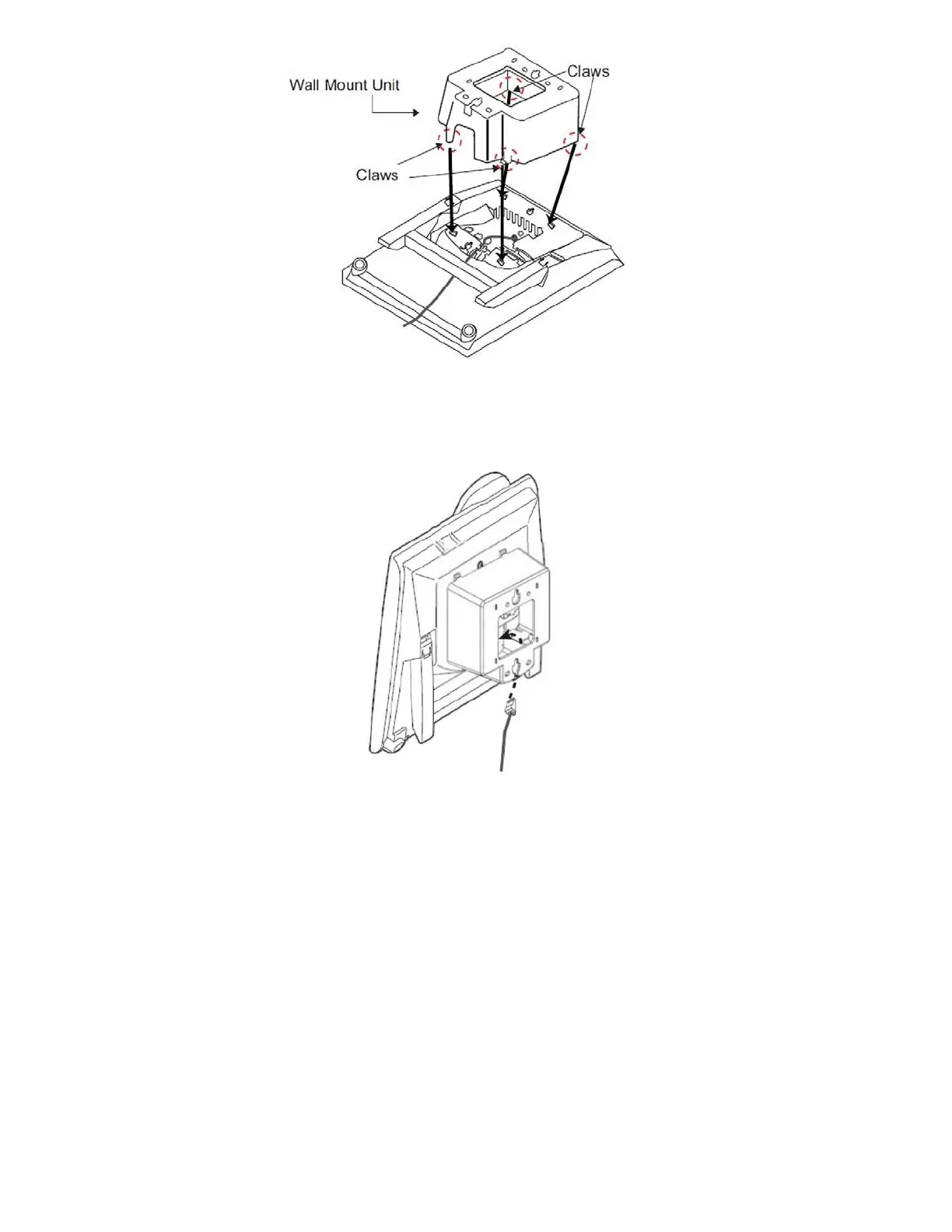

Figure 20: Installing the IP4WW-Wall Mount Unit
4.
Pass the LAN cable through bottom of the IP4WW-Wall Mount
Unit and plug into the LAN port.
Figure 21: Installing the LAN Cable
37
