2. Projecting an Image (Basic Operation)

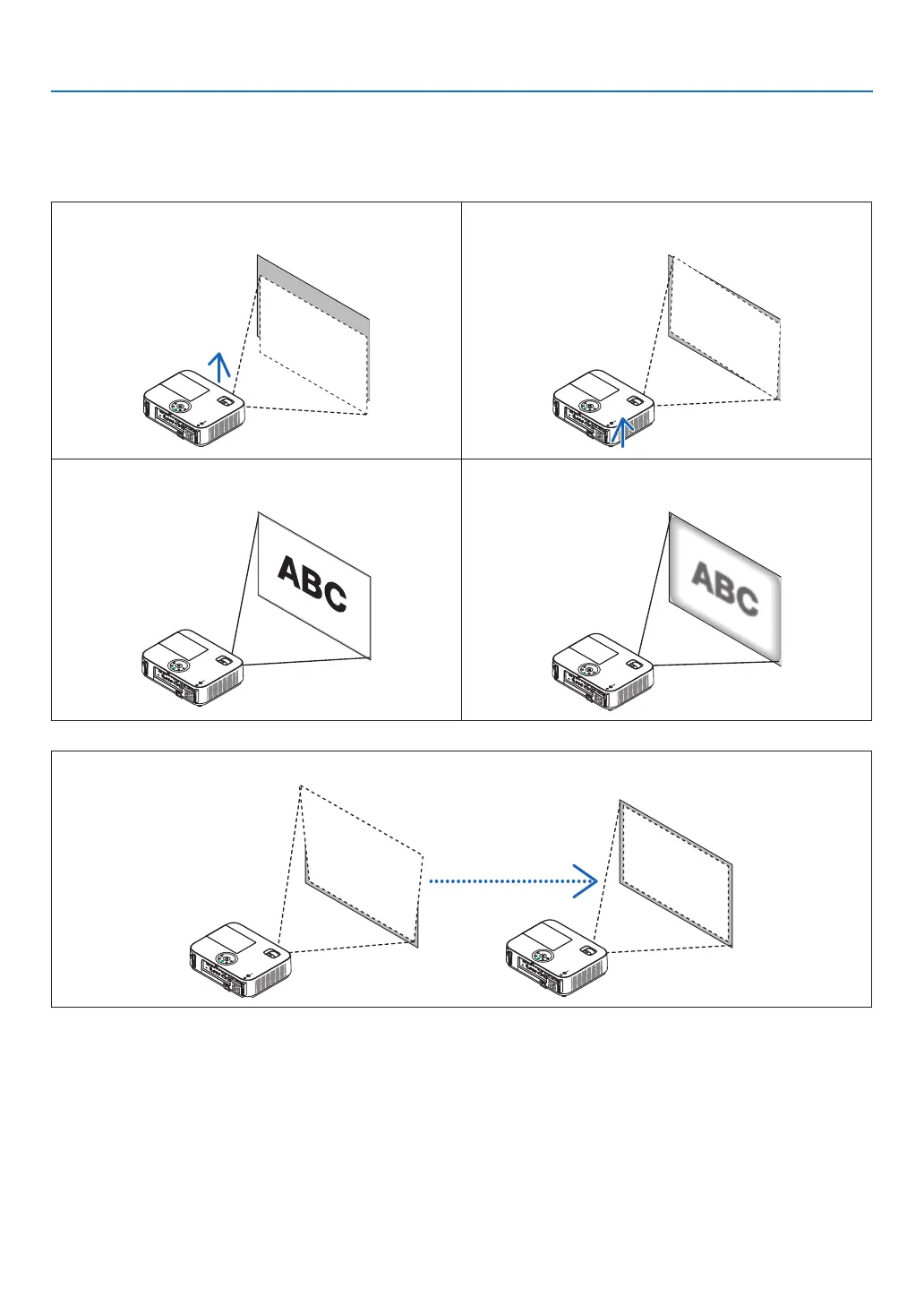

❺ Adjusting the Picture Size and Position
Usetheadjustabletiltfoot,thezoomfunctionorthefocusringtoadjustthepicturesizeandposition.
Inthischapterdrawingsandcablesareomittedforclarity.
Adjustingthethrowangle(theheightofanimage)
[Tiltfoot](→page19)
Adjustingtheleftandrighttiltofanimage
[Rearfoot](→page19)
Finelyadjustingthesizeofanimage
[Zoomfunction](→page20)
Adjustingthefocus
[Focusfunction](→page21)
Adjustingthekeystonecorrection[KEYSTONE]*(→page22)
* AutomaticKeystoneCorrectionfunctionisturnedonatthetimeofshipment.Toperformkeystonecorrectionmanually,see“6.
CorrectingKeystoneDistortionManually”onpage22.
