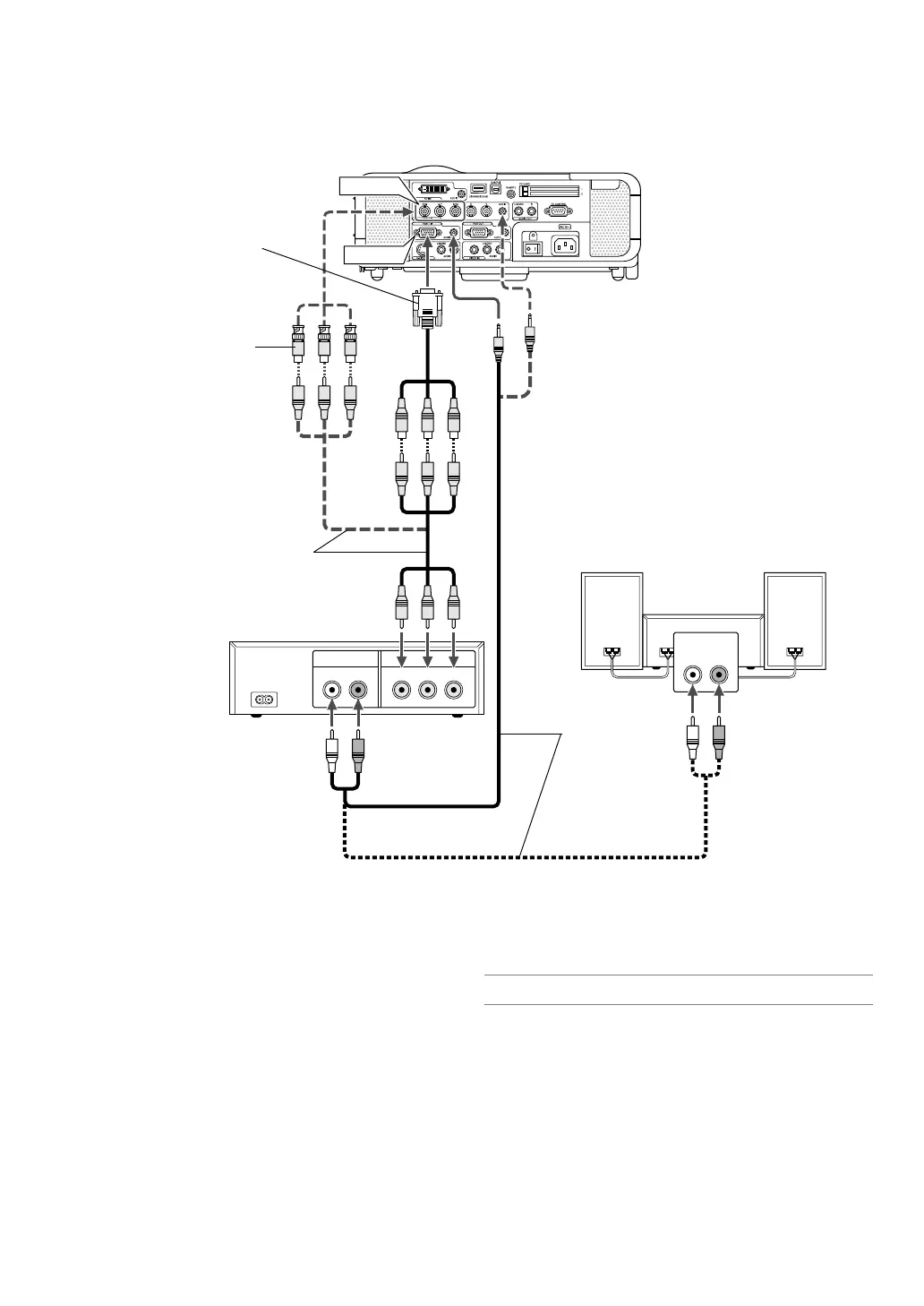

Connecting Your DVD Player
DVD player
You can connect your projector to a DVD player with component output
or Video output. To do so, simply:
1. Turn off the power to your projector and DVD player.
2. If your DVD player has the component video (Y,Cb,Cr) output, use a
commercially available component video cable (RCAX3) and the op-
tional 15-pin-to-RCA (female)
⳯ 3 cable to connect your DVD player
to the RGB IN1 or IN2 connector on the projector.
Component video RCA
⳯ 3 cable
(not supplied)
For a DVD player without component video (Y,Cb,Cr) output, use com-
mon RCA cables (not provided) to connect a composite VIDEO out-
put of the DVD player to the Video Input of the projector.
3. Turn on the projector and DVD player.
NOTE: Refer to your DVD player's owner's manual for more information about
your DVD player's video output requirements,
Optional 15-pin-to-RCA
(female) ⳯ 3 cable (ADP-CV1)
Audio cable
(not supplied)
Audio Equipment
RCA(female)-to-BNC(male)
adapter (not supplied)
