8
Flexible Arm Installation
This LCD monitor is designed for use with a flexible arm. To mount the monitor to
a flexible arm:
1. Follow the instructions on how Remove Monitor Stand for Mounting to remove
the stand.

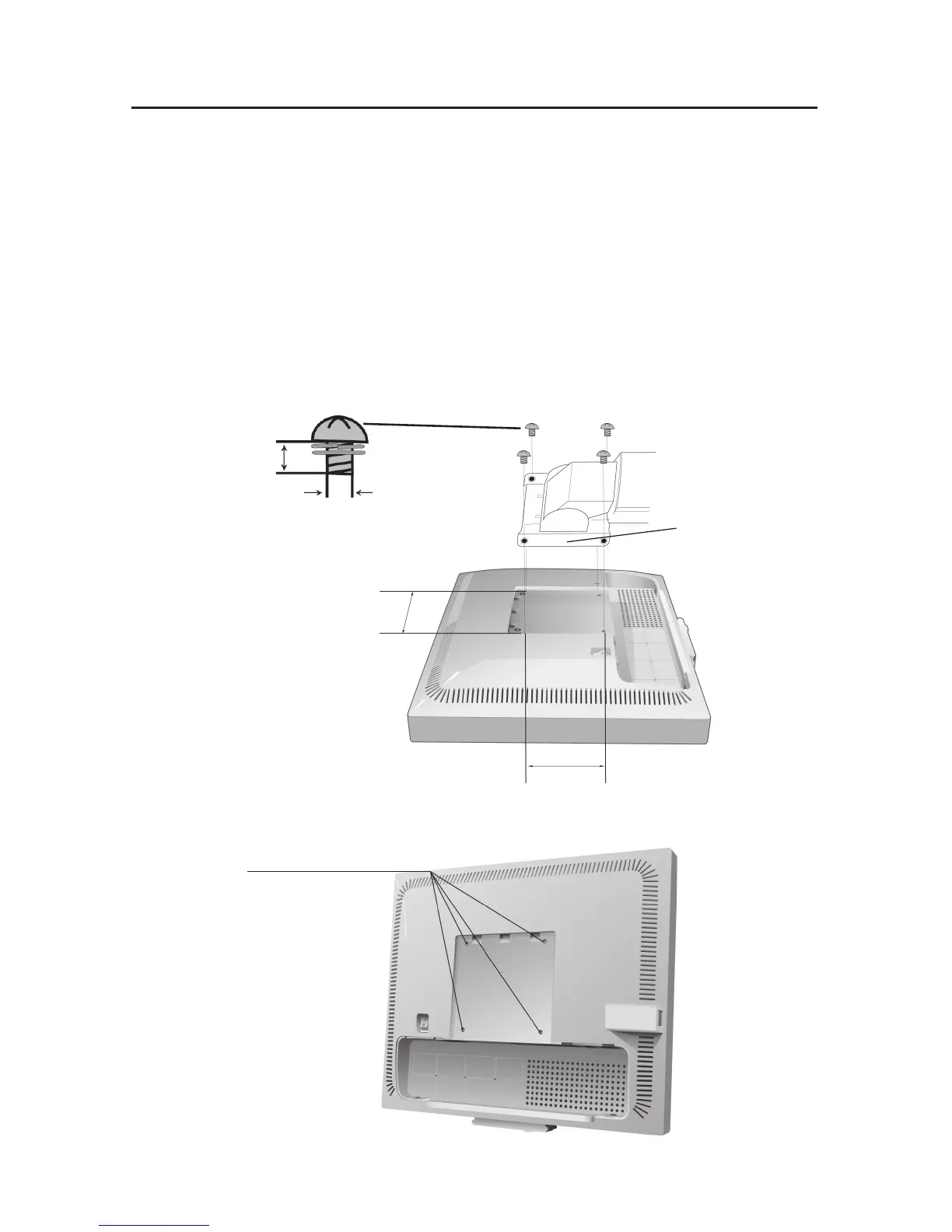

2. Use the 4 screws to attach the arm to the monitor (Figure F.1).
NOTE
: The LCD monitor should only be used with an approved arm (e.g. GS mark).
To meet the safety requirements, the monitor must be mounted to an arm which
guaranties the necessary stability under consideration of the weight of the monitor.
Thickness of Bracket (Arm)
2.0~3.2mm
100mm
100mm
4 Screws (M4)
(Max Depth: 8.5 mm)
Figure F.1
12mm
M4
4 x 12mm with lock washer and flat washer
Weight of LCD assembly:
70GX
2
- 4.0 kg (MAX)
90GX
2
- 4.8 kg (MAX)
