Mounting

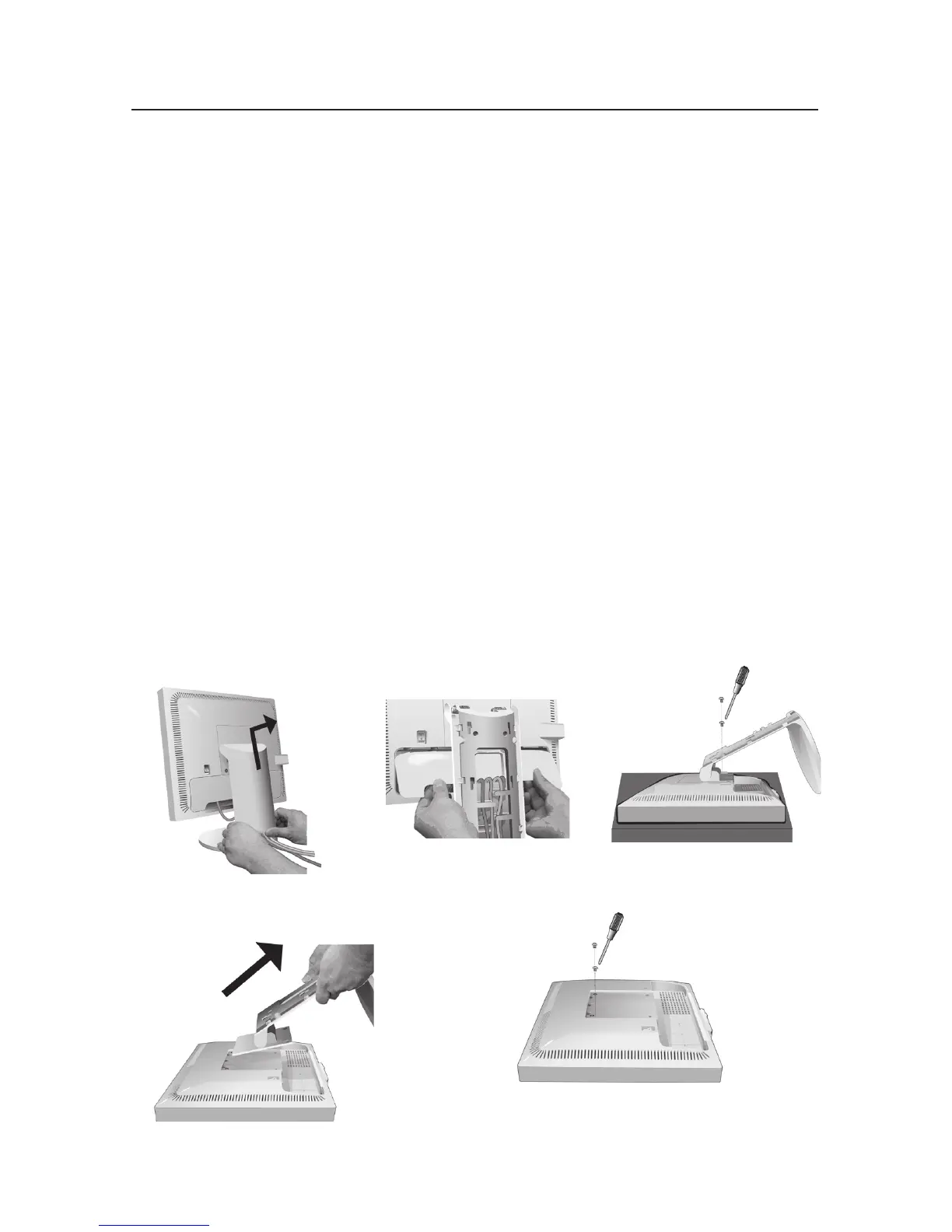

Remove Monitor Stand for Mounting
1. Place hands on each side of the monitor and tilt the LCD panel 5˚ degrees.
Remove the cable cover (Figure M.1).
Remove the connector cover (Figure M.2).
2. Disconnect all cables.
3. Place monitor face down on a non-abrasive surface (Figure M.3).
NOTE: Handle with care when the monitor is facing down to avoid
damaging the front buttons.
4. Remove the 2 screws connecting the stand to the monitor (Figure M.3).
5. Lift up the stand to unlatch the upper hooks and remove the stand (Figure M.4).
6. Remove the 2 screws on the top of the monitor (Figure M.5). The monitor is
now ready for mounting in an alternate manner.
7. Connect the cables and replace the connector cover on the back of the monitor.
8. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.
Handle with care when removing stand.
Figure M.1
Figure M.3
Figure M.4
Figure M.5
Figure M.2
