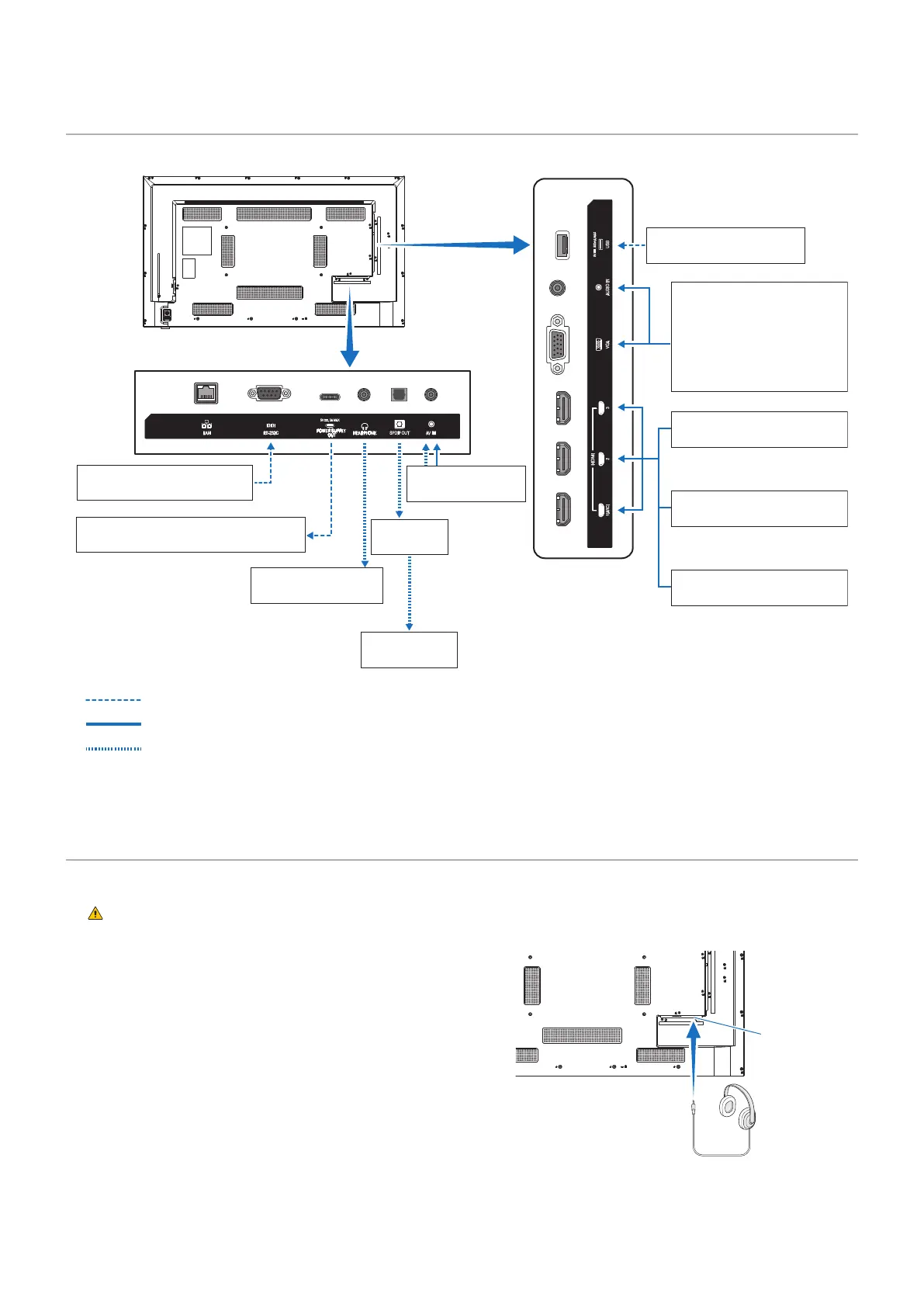

Wiring Diagram
Computer (RS-232C)
Video player
(composite)
Computer (HDMI)
Computer (stereo mini jack)
Computer (D-sub)
Video player (stereo mini-jack)
Video player (component)
USB storage device
Video player (HDMI)
Blu-ray or DVD player (HDMI)
AVamplier
External
speakers
Headphones
Power supply to external equipment: 5
V/3 A (max)
: Other signals
: Video signal
: Audio signal
Headphones Connection
When using headphones, connect them to the HEADPHONE terminal of the monitor.
CAUTION Do not connect the headphones while wearing them.
Otherwise, your ears may be injured depending on the sound volume.
NOTE • Headphones with a stereo mini jack plug can
be connected to the monitor. If the plug of your
headphones is too large to enter the connector, buy
a 6.35 mm stereo jack plug to stereo mini jack plug
adapter in your audio store.
• The sound from the speakers is muted when
headphones are connected.
• Adjustment of the volume control as well as the
equalizer to other settings than the center position
may increase the ear-/headphones output voltage and
therefore the sound pressure level.
NOTE When connecting the product to the video
output connector (component) of a video player
or another device, go to [Setup] in the OSD
menu -> [VGA Options] -> [VGA Mode], and
select [YPbPr].
HEADPHONE
terminal
