About Conversion Cables Used with the AV Terminal
Useacommercially-availablevideocablewitha4-contactminijack(φ3.5mm)atoneextremityforconversioncablesto
connect to the AV terminal.
Checkthewiringspecicationofthecableinadvanceandchooseapropercable.
NOTE *Differentwiringspecicationsmayexistfor4-contactminijackcables.
No. Signal
1 Video
2 Audio (left)
3 Audio (right)
4 GND
1
2
3
4

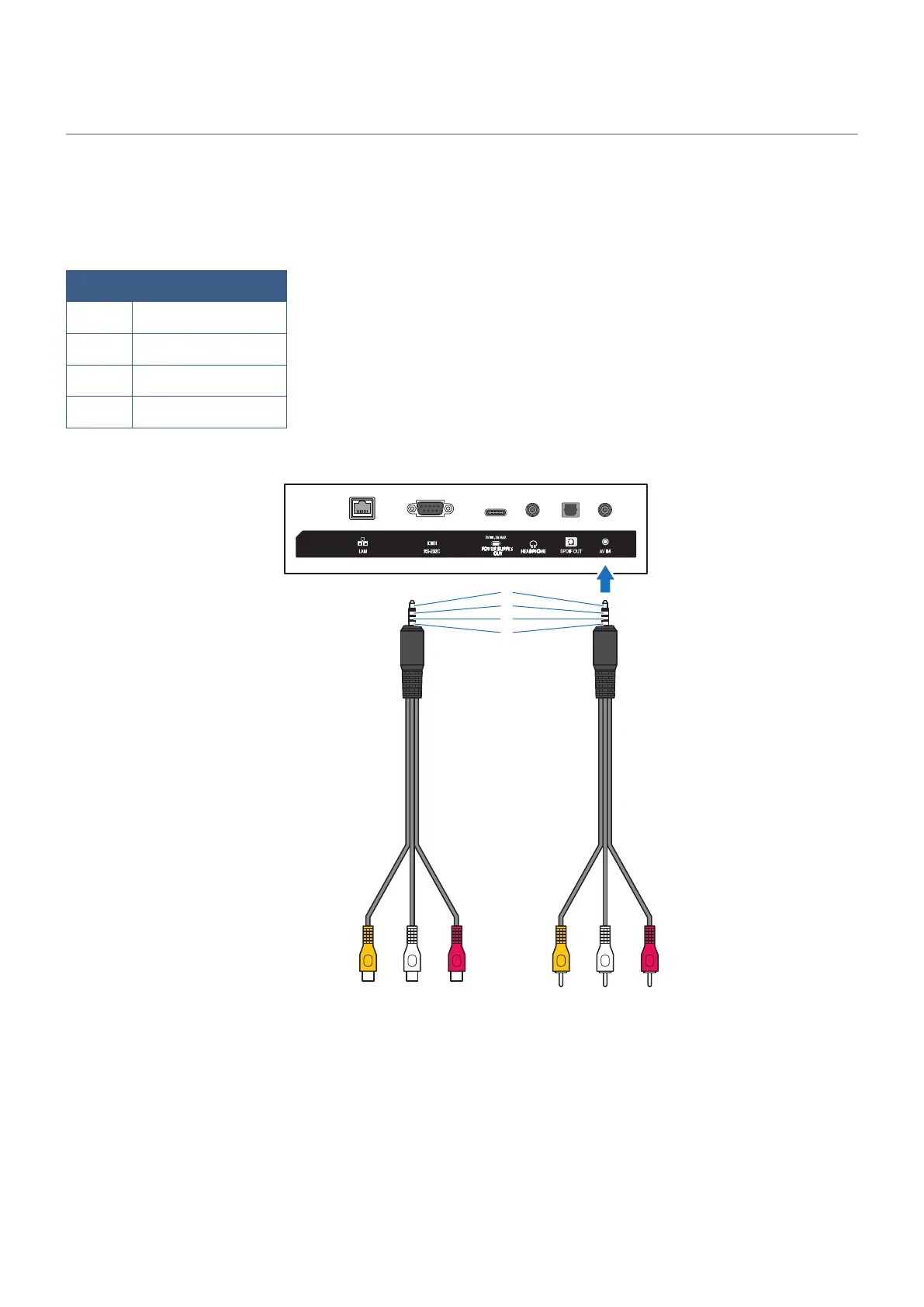

Example of RCA
connectors (male) -
4-contact mini jack cable
Example of RCA
connectors (female) -
4-contact mini jack cable
