3-1

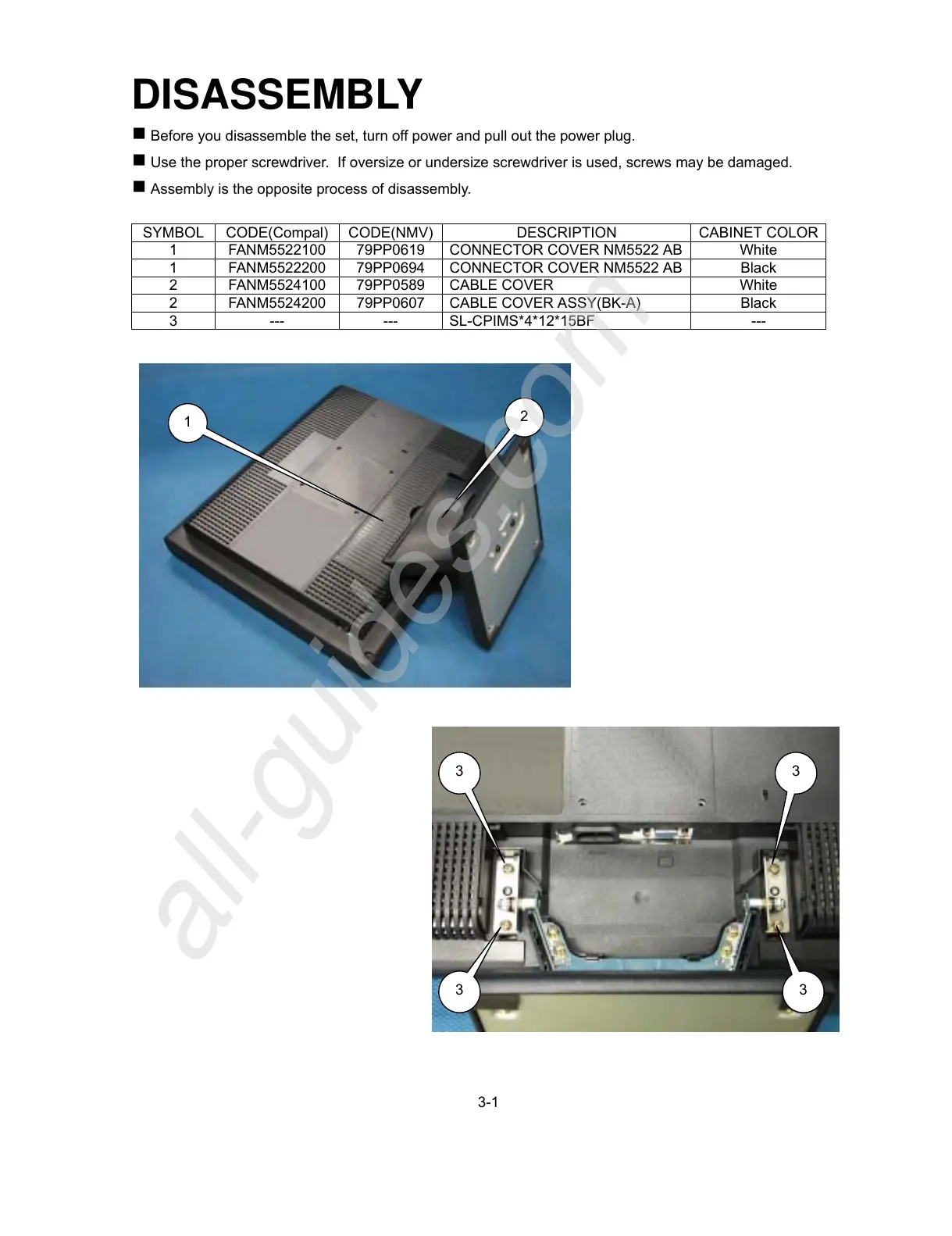

DISASSEMBLY
g Before you disassemble the set, turn off power and pull out the power plug.
g Use the proper screwdriver. If oversize or undersize screwdriver is used, screws may be damaged.
g Assembly is the opposite process of disassembly.
SYMBOL CODE(Compal) CODE(NMV) DESCRIPTION CABINET COLOR
1 FANM5522100 79PP0619 CONNECTOR COVER NM5522 AB White
1 FANM5522200 79PP0694 CONNECTOR COVER NM5522 AB Black
2 FANM5524100 79PP0589 CABLE COVER White
2 FANM5524200 79PP0607 CABLE COVER ASSY(BK-A) Black
3 --- --- SL-CPIMS*4*12*15BF ---
2
1
3
3 3
3
To Next Page
