NEC MultiSync LCD1550V - Checking the Operation of CPU

6-16

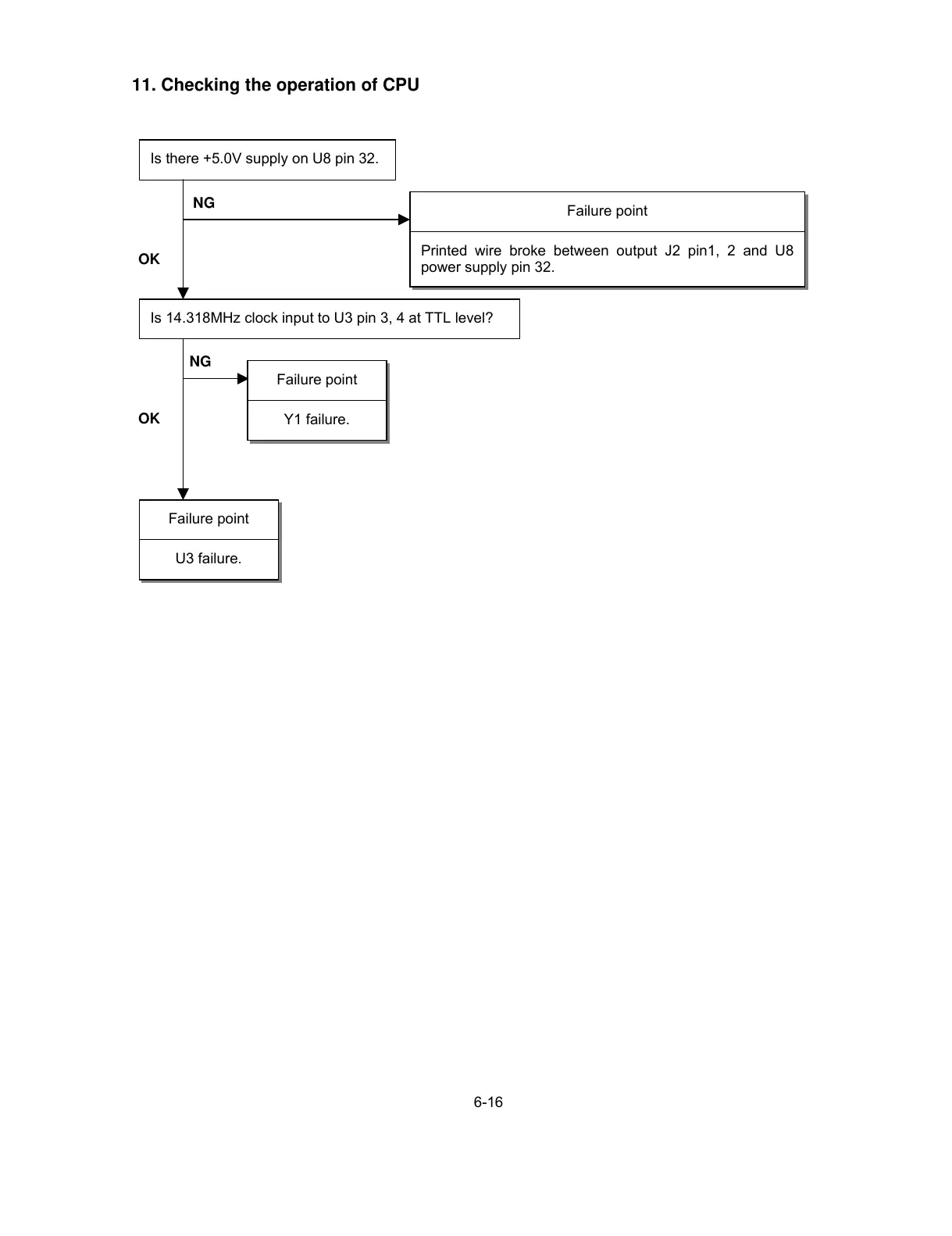

11. Checking the operation of CPU
Is there +5.0V supply on U8 pin 32.
NG
OK
Failure point
Printed wire broke between output J2 pin1, 2 and U8
power supply pin 32.
Is 14.318MHz clock input to U3 pin 3, 4 at TTL level?
NG
OK
Failure point
Y1 failure.
Failure point
U3 failure.
