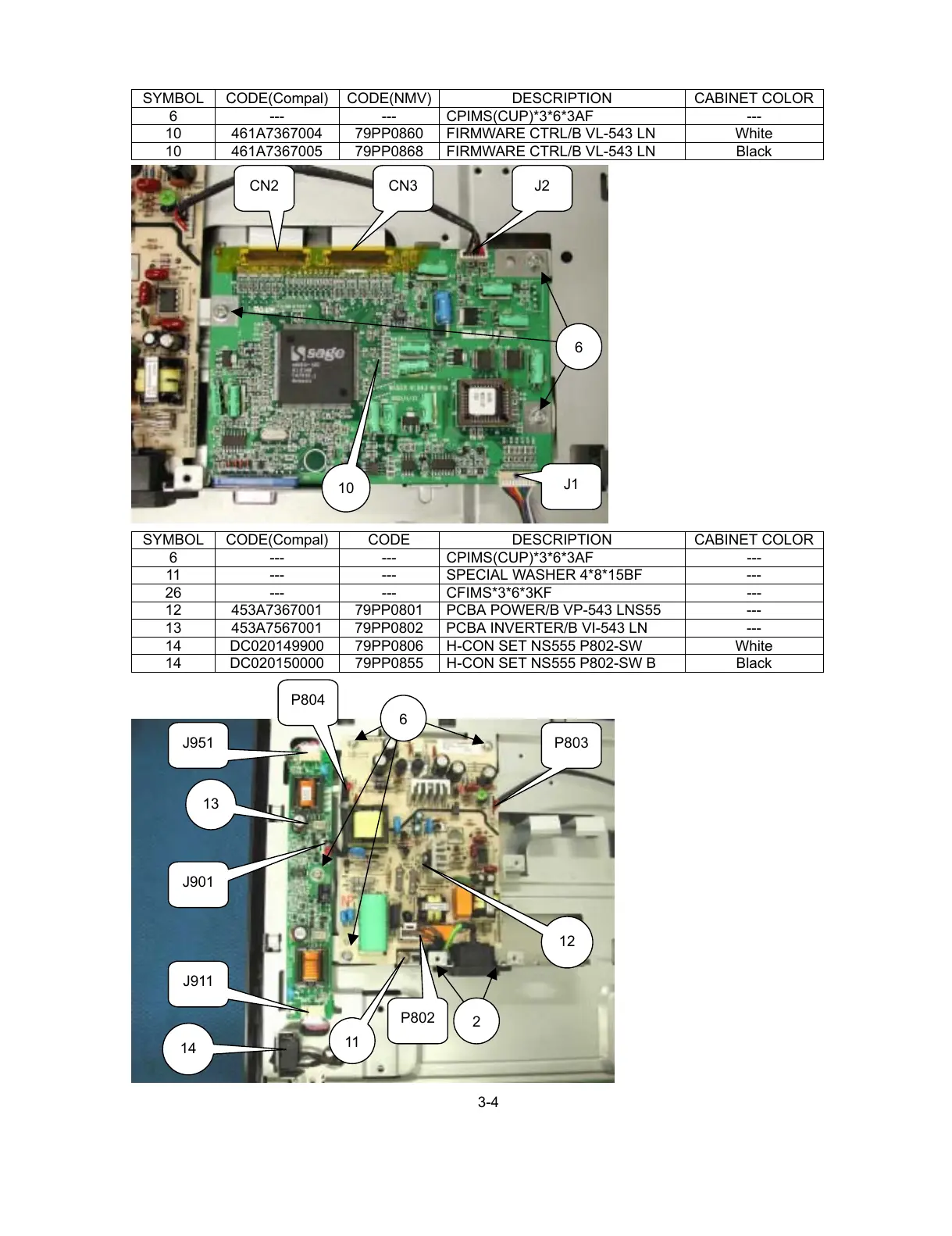

SYMBOL CODE(Compal) CODE(NMV) DESCRIPTION CABINET COLOR
6 --- --- CPIMS(CUP)*3*6*3AF ---
10 461A7367004 79PP0860 FIRMWARE CTRL/B VL-543 LN White
10 461A7367005 79PP0868 FIRMWARE CTRL/B VL-543 LN Black
SYMBOL CODE(Compal) CODE DESCRIPTION CABINET COLOR
6 --- --- CPIMS(CUP)*3*6*3AF ---
11 --- --- SPECIAL WASHER 4*8*15BF ---
26 --- --- CFIMS*3*6*3KF ---
12 453A7367001 79PP0801 PCBA POWER/B VP-543 LNS55 ---
13 453A7567001 79PP0802 PCBA INVERTER/B VI-543 LN ---
14 DC020149900 79PP0806 H-CON SET NS555 P802-SW White
14 DC020150000 79PP0855 H-CON SET NS555 P802-SW B Black
10
CN2
J1
CN3
6
J2
14
P802
6
11
12
13
J951
J911
J901
P804
P803
2
