5-1
INSPECTION
1. Inspection of PLUG & PLAY communication and OSM "MONITOR
INFORMATION" for model name/ serial number

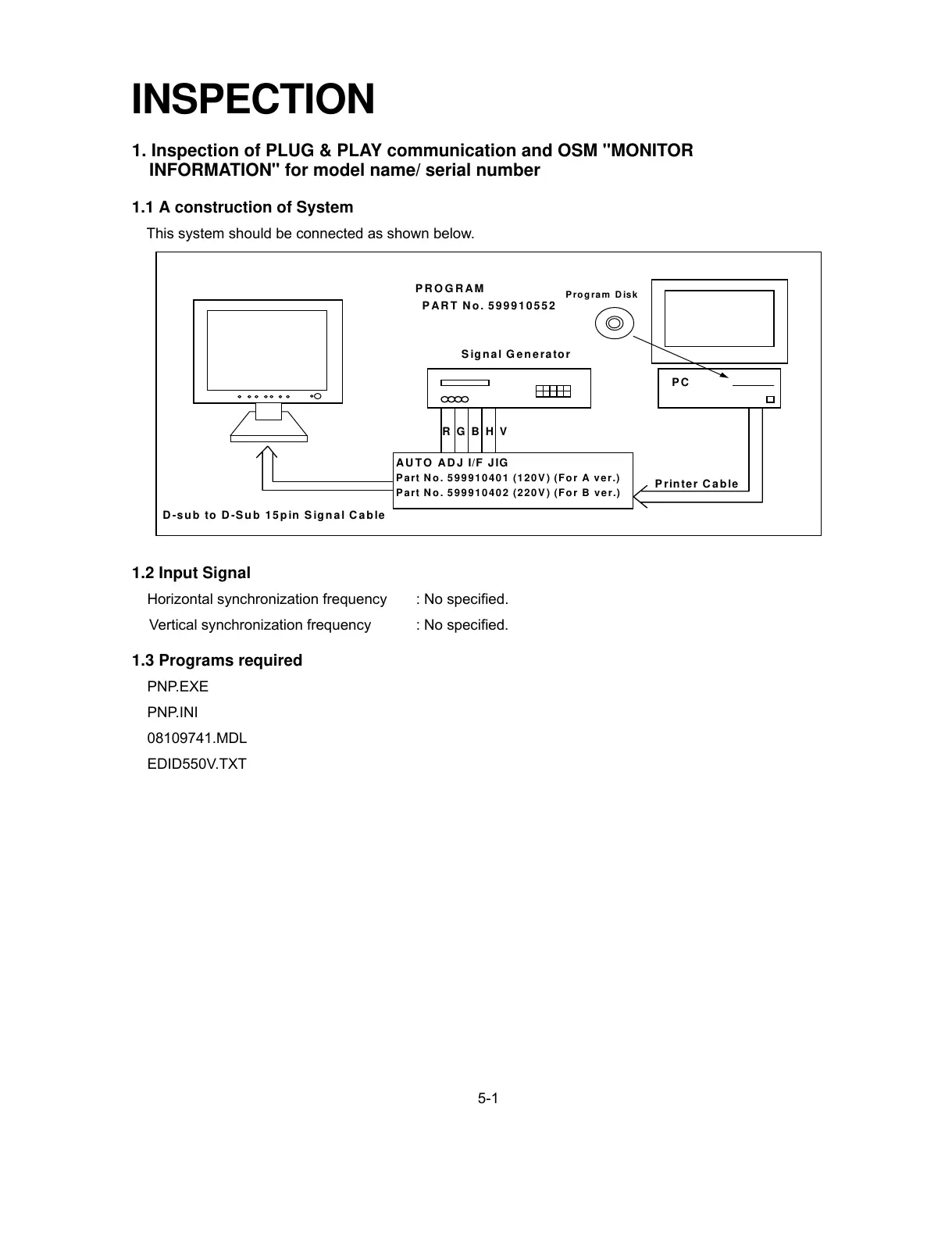

1.1 A construction of System
This system should be connected as shown below.
PC
R G B H V
Printer Cable
Signal Generator
AUTO ADJ I/F JIG
Part No. 599910401 (120V) (For A ver.)
Part No. 599910402 (220V) (For B ver.)
PROGRAM
PART No. 599910552
Program Disk
D-sub to D-Sub 15pin Signal Cable
1.2 Input Signal
Horizontal synchronization frequency : No specified.
Vertical synchronization frequency : No specified.
1.3 Programs required
PNP.EXE
PNP.INI
08109741.MDL
EDID550V.TXT
