5-3

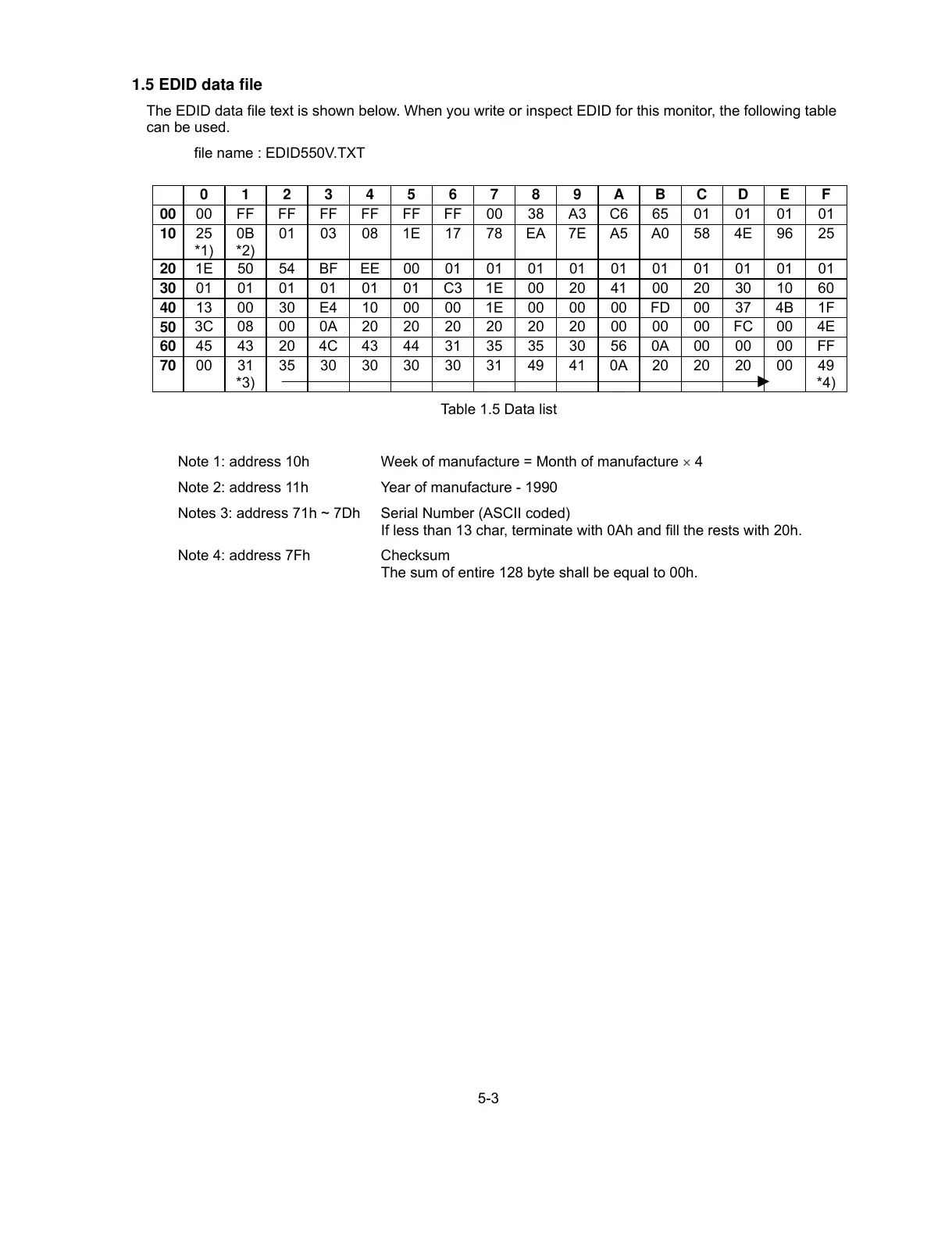

1.5 EDID data file
The EDID data file text is shown below. When you write or inspect EDID for this monitor, the following table
can be used.
file name : EDID550V.TXT
0 1 2 3 4 5 6 7 8 9 A B C D E F
00
00 FF FF FF FF FF FF 00 38 A3 C6 65 01 01 01 01
10
25
*1)
0B
*2)
01 03 08 1E 17 78 EA 7E A5 A0 58 4E 96 25
20
1E 50 54 BF EE 00 01 01 01 01 01 01 01 01 01 01
30
01 01 01 01 01 01 C3 1E 00 20 41 00 20 30 10 60
40
13 00 30 E4 10 00 00 1E 00 00 00 FD 00 37 4B 1F
50
3C 08 00 0A 20 20 20 20 20 20 00 00 00 FC 00 4E
60
45 43 20 4C 43 44 31 35 35 30 56 0A 00 00 00 FF
70
00 31
*3)
35 30 30 30 30 31 49 41 0A 20 20 20 00 49
*4)
Table 1.5 Data list
Note 1: address 10h Week of manufacture = Month of manufacture × 4
Note 2: address 11h Year of manufacture - 1990
Notes 3: address 71h ~ 7Dh Serial Number (ASCII coded)
If less than 13 char, terminate with 0Ah and fill the rests with 20h.
Note 4: address 7Fh Checksum
The sum of entire 128 byte shall be equal to 00h.
