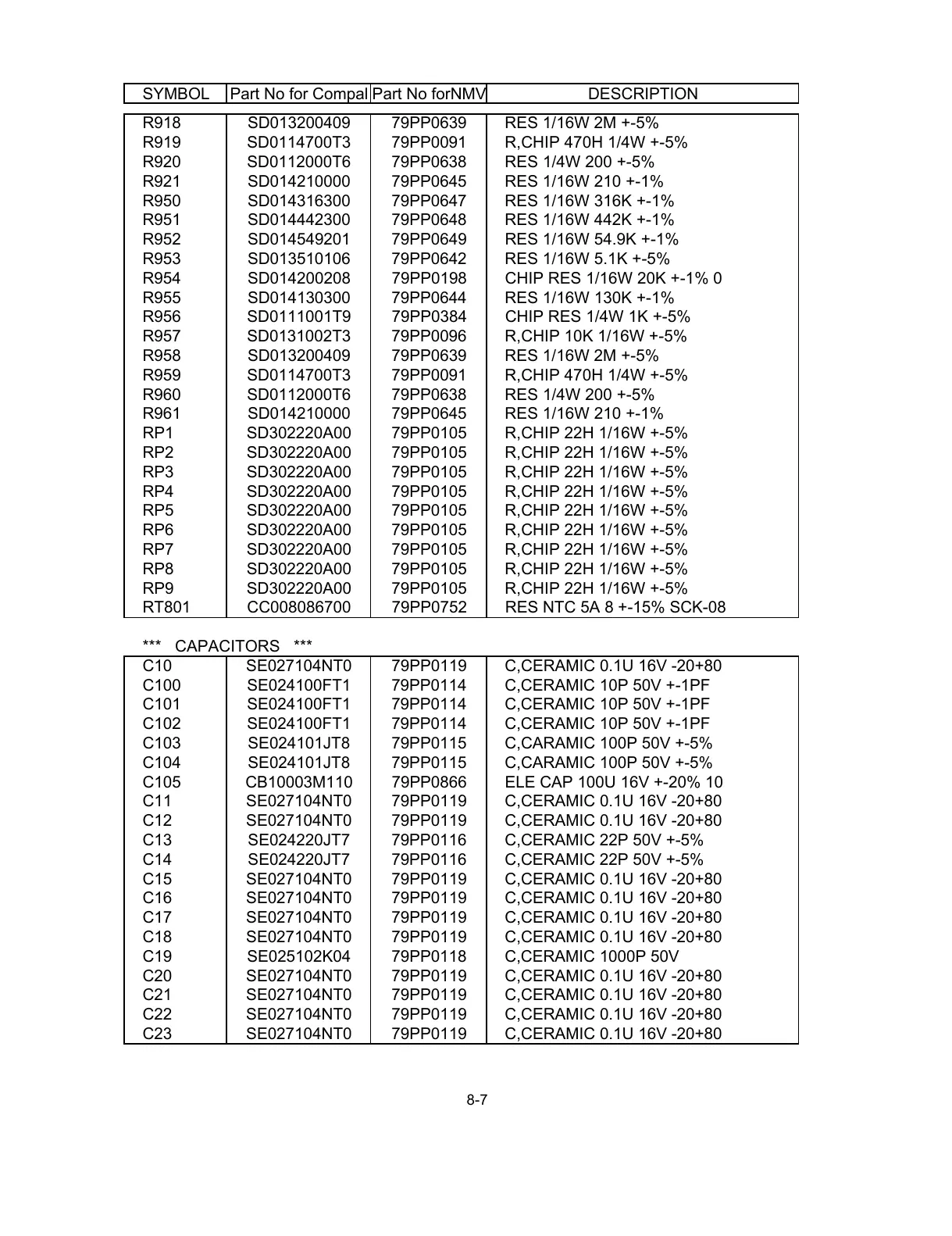

NEC MultiSync LCD1550V Service Manual

SYMBOL Part No for Com
p
al Part No forNM
V
DESCRIPTION
R918 SD013200409 79PP0639 RES 1/16W 2M +-5%
R919 SD0114700T3 79PP0091 R,CHIP 470H 1/4W +-5%
R920 SD0112000T6 79PP0638 RES 1/4W 200 +-5%
R921 SD014210000 79PP0645 RES 1/16W 210 +-1%
R950 SD014316300 79PP0647 RES 1/16W 316K +-1%
R951 SD014442300 79PP0648 RES 1/16W 442K +-1%
R952 SD014549201 79PP0649 RES 1/16W 54.9K +-1%
R953 SD013510106 79PP0642 RES 1/16W 5.1K +-5%
R954 SD014200208 79PP0198 CHIP RES 1/16W 20K +-1% 0
R955 SD014130300 79PP0644 RES 1/16W 130K +-1%
R956 SD0111001T9 79PP0384 CHIP RES 1/4W 1K +-5%
R957 SD0131002T3 79PP0096 R,CHIP 10K 1/16W +-5%
R958 SD013200409 79PP0639 RES 1/16W 2M +-5%
R959 SD0114700T3 79PP0091 R,CHIP 470H 1/4W +-5%
R960 SD0112000T6 79PP0638 RES 1/4W 200 +-5%
R961 SD014210000 79PP0645 RES 1/16W 210 +-1%
RP1 SD302220A00 79PP0105 R,CHIP 22H 1/16W +-5%
RP2 SD302220A00 79PP0105 R,CHIP 22H 1/16W +-5%
RP3 SD302220A00 79PP0105 R,CHIP 22H 1/16W +-5%
RP4 SD302220A00 79PP0105 R,CHIP 22H 1/16W +-5%
RP5 SD302220A00 79PP0105 R,CHIP 22H 1/16W +-5%
RP6 SD302220A00 79PP0105 R,CHIP 22H 1/16W +-5%
RP7 SD302220A00 79PP0105 R,CHIP 22H 1/16W +-5%
RP8 SD302220A00 79PP0105 R,CHIP 22H 1/16W +-5%
RP9 SD302220A00 79PP0105 R,CHIP 22H 1/16W +-5%
RT801 CC008086700 79PP0752 RES NTC 5A 8 +-15% SCK-08
*** CAPACITORS ***
C10 SE027104NT0 79PP0119 C,CERAMIC 0.1U 16V -20+80
C100 SE024100FT1 79PP0114 C,CERAMIC 10P 50V +-1PF
C101 SE024100FT1 79PP0114 C,CERAMIC 10P 50V +-1PF
C102 SE024100FT1 79PP0114 C,CERAMIC 10P 50V +-1PF
C103 SE024101JT8 79PP0115 C,CARAMIC 100P 50V +-5%
C104 SE024101JT8 79PP0115 C,CARAMIC 100P 50V +-5%
C105 CB10003M110 79PP0866 ELE CAP 100U 16V +-20% 10
C11 SE027104NT0 79PP0119 C,CERAMIC 0.1U 16V -20+80
C12 SE027104NT0 79PP0119 C,CERAMIC 0.1U 16V -20+80
C13 SE024220JT7 79PP0116 C,CERAMIC 22P 50V +-5%
C14 SE024220JT7 79PP0116 C,CERAMIC 22P 50V +-5%
C15 SE027104NT0 79PP0119 C,CERAMIC 0.1U 16V -20+80
C16 SE027104NT0 79PP0119 C,CERAMIC 0.1U 16V -20+80
C17 SE027104NT0 79PP0119 C,CERAMIC 0.1U 16V -20+80
C18 SE027104NT0 79PP0119 C,CERAMIC 0.1U 16V -20+80
C19 SE025102K04 79PP0118 C,CERAMIC 1000P 50V
C20 SE027104NT0 79PP0119 C,CERAMIC 0.1U 16V -20+80
C21 SE027104NT0 79PP0119 C,CERAMIC 0.1U 16V -20+80
C22 SE027104NT0 79PP0119 C,CERAMIC 0.1U 16V -20+80
C23 SE027104NT0 79PP0119 C,CERAMIC 0.1U 16V -20+80
8-7
