NEC MultiSync LCD1560NX User Manual

English
English-5

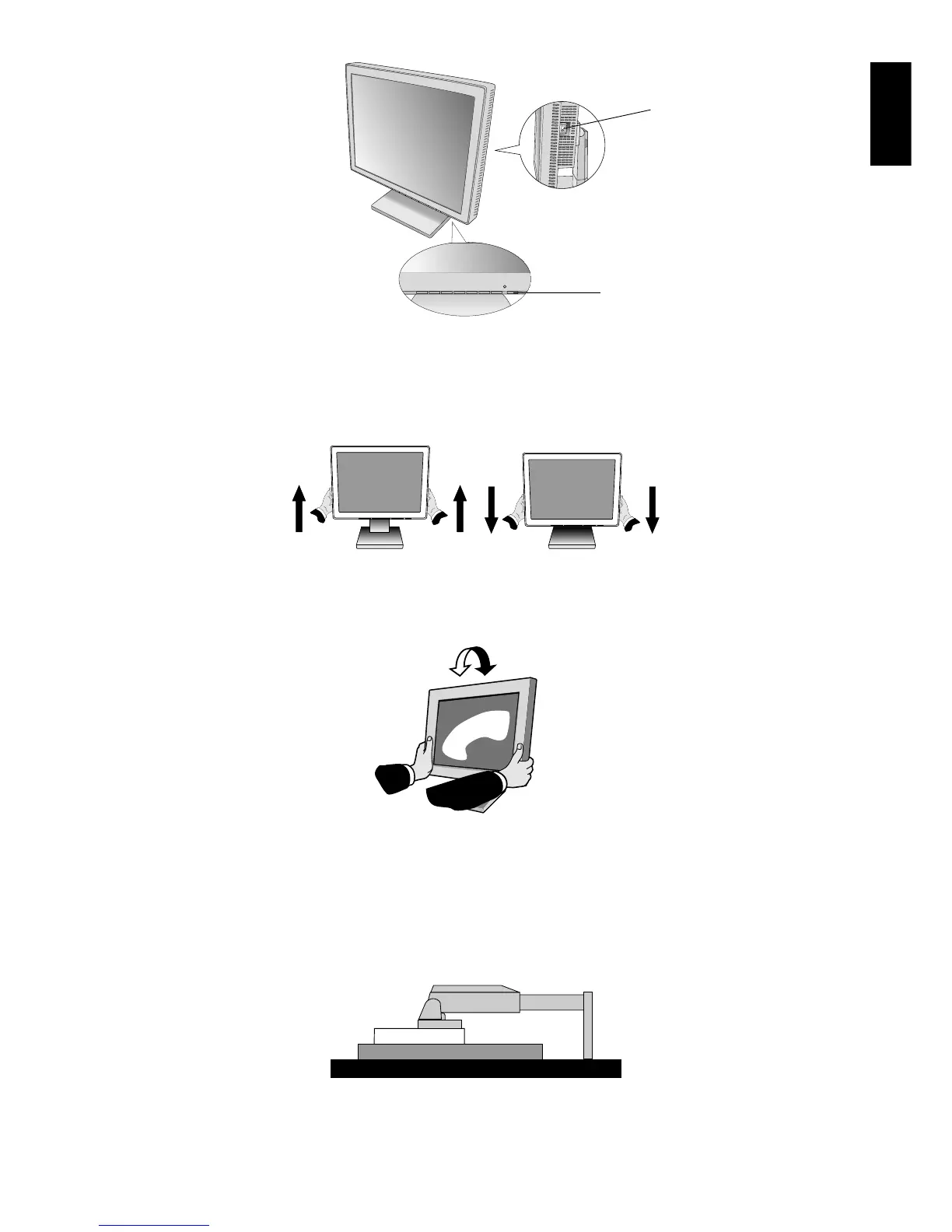

Raise and Lower Monitor Screen
The monitor may be raised or lowered.
To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).
Tilt
Grasp both sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a non-abrasive surface (Figure S.1).
Vacation Switch
Power Button
Figure D.1
Figure TS.1
Figure RL.1
Figure S.1

NEC MultiSync LCD1560NX Specifications

General

Display	LCD
Power requirements	100-120 V/220-240 V; 0.4 A/0.2 A
Recommended resolution	1024 x 768 at 75 Hz
Pixel pitch	0.297 mm
Response time	30 ms
Display diagonal	15 \
Display resolution	1024 x 768 pixels
Vertical scan range	56.2 - 75.1 Hz
Horizontal scan range	31.5 - 60 kHz
Display number of colors	16.78 million colors
Display brightness (typical)	250 cd/m²
Certification	CE; Energy 2000, Energy Star; FCC Class B; ISO 13406-2 (Pixel Failure Cass II); PCBC/B-mark; PCT Gost; TCO99; TÜV ERGONOMIE; TÜV GS; UL/C-UL or CSA; MPR II/ MPR III
Market positioning	-
I/O ports	1 x DVI-D; 1 x mini D-sub 15 pin.
Plug and Play	Yes
Tilt angle range	-5 - 30 °
Panel mounting interface	75 x 75 mm
Power consumption (standby)	2 W
Power consumption (typical)	20 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	30 - 80 %

Weight and Dimensions

Depth (without stand)	166 mm
Width (without stand)	344.8 mm
Height (without stand)	344.2 mm
Weight (without stand)	3700 g
