English−20

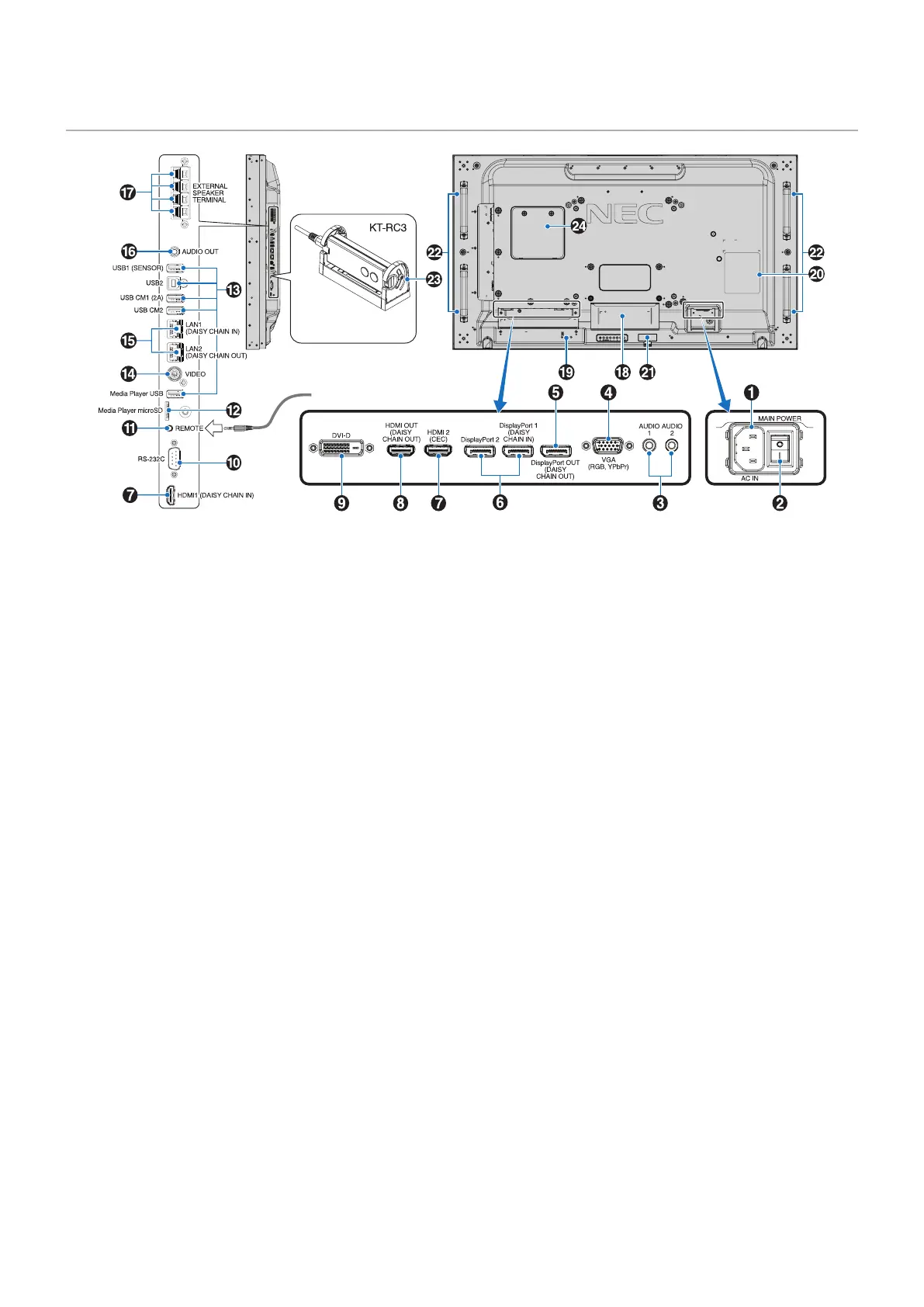

Terminal Panel
From Optional sensor unit
Optional sensor unit
A AC IN Connector
Connects with the supplied power cord.
B Main Power Switch
On/Off switch to turn main power ON/OFF.
C AUDIO IN (AUDIO1/AUDIO2)
Audio signal input from external equipment such as a
computer or player.
D VGA IN (Mini D-Sub 15-pin)
Analog RGB signals input from a personal computer or
from other RGB equipment. This input can be used with
an RGB or YPbPr source. Please select the signal type in
[TERMINAL SETTINGS]. See
page 116.
NOTE: When you use this connector for YPbPr, please use
a suitable signal cable. If you have any questions,
please ask your supplier.
E DisplayPort OUT (DisplayPort OUT (DAISY CHAIN
OUT))
Output signal from DisplayPort 1 or OPTION.
F DisplayPort IN (DisplayPort1 (DAISY CHAIN IN)/
DisplayPort2))
DisplayPort signals input.
G HDMI IN (HDMI1 (DAISY CHAIN IN)/HDMI2 (CEC))
HDMI signals input.
H HDMI OUT (HDMI OUT (DAISY CHAIN OUT))
Output signal from HDMI 1, DVI IN, or OPTION.
I DVI IN (DVI-D)
Digital RGB signals input from a computer or HDTV device
having a digital RGB output. See
page 116.
NOTE: This connector does not support analog input.
J RS-232C IN (D-Sub 9-pin)
Connect RS-232C input from external equipment, such
as a computer, in order to control RS-232C functions.
See page 80.
K REMOTE
Use the optional sensor unit by connecting it to your monitor.
See
page 17.
NOTE: Do not use this connector unless specified.
L microSD Card Slot (Media Player microSD)
microSD memory card reader for use with the Media Player.
See
page 40.
To install the microSD card slot cover, please refer to
“Installing microSD card slot cover”. See
page 29.
To Next Page
