NEC MultiSync UN552VS Installation Guide

NEC Display Solutions
Video Wall Installation Guide

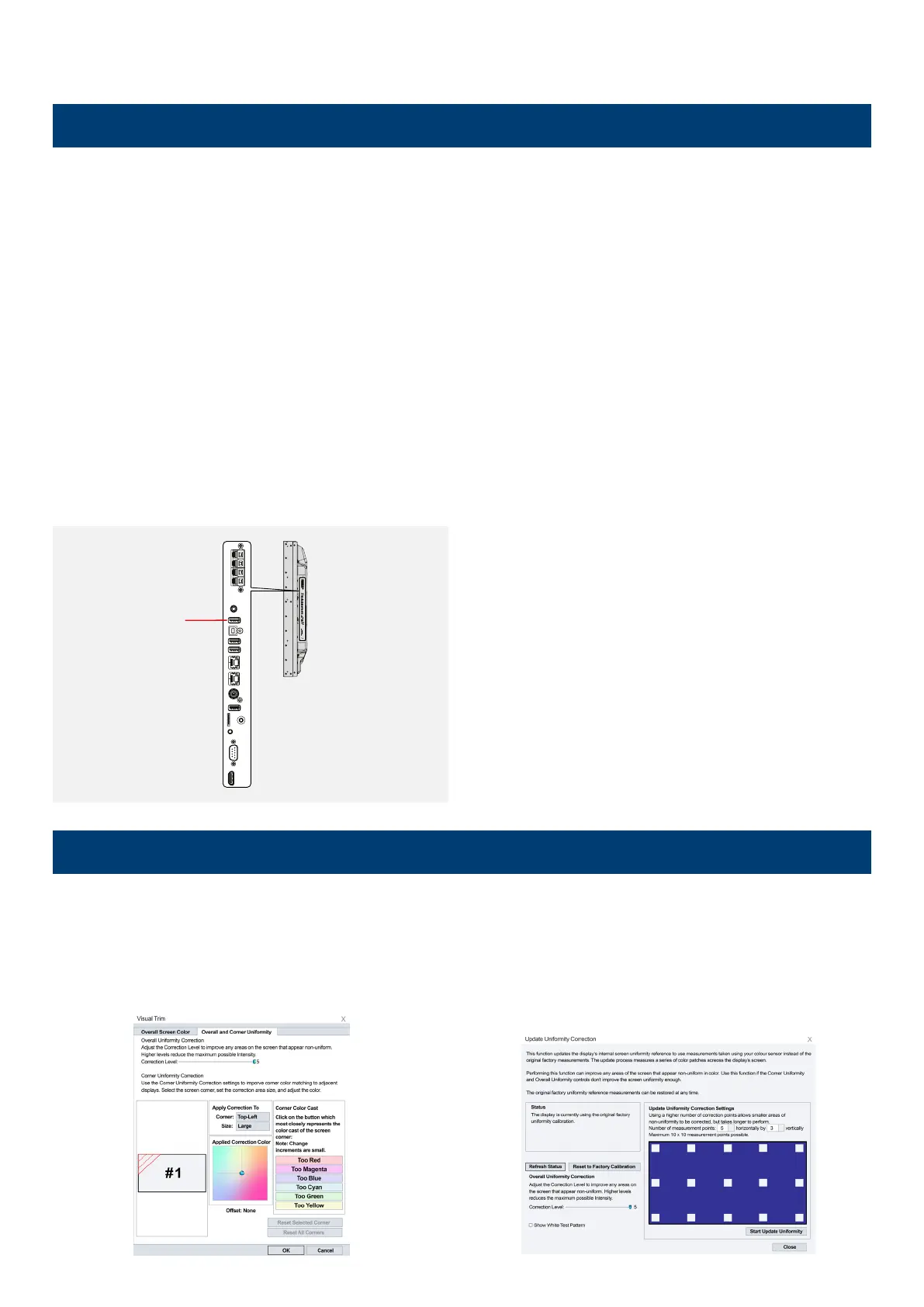

PC-less display Self-Calibration
Through self-calibration, each monitor adjusts its settings according to
the factory calibrated LUT, managed by the inbuilt SpectraView engine.
PC-less calibration uses an MDSV Sensor 3 directly connected to the
dedicated monitor’s USB interface.
Connect the MDSV Sensor 3 to the display monitor’s USB1 (SENSOR)
interface.
Menu: PICTURE > SPECTRAVIEW ENGINE > CALIBRATION > SET
STAND-ALONE CALIBRATION > SELF CALIBRATION > SET
Note: For proper handling, this feature is recommended for video walls of
up to 3x3 displays, depending on accessibility. For most efcient handling,
larger video walls should be calibrated via the PC-based Display Wall
Calibrator application.
PC-less White Copy function
Using the self-calibration feature, settings from a reference display are
copied to each dedicated display in the video wall. Connect a MDSV
Sensor 3 to the USB interface of the display to be adjusted. Using the
sensor, measure a white test pattern on the reference display to readjust
the display calibration.
Connect the MDSV Sensor 3 into the USB1 (SENSOR) interface of the
display to be adjusted.
Place the sensor on the reference monitor showing a white test pattern.
Menu: PICTURE > SPECTRAVIEW ENGINE > CALIBRATION > SET
STAND-ALONE CALIBRATION > WHITE COPY > SET
Note: To perform White Copy, self-calibration must be completed
beforehand. For proper handling, this feature is recommended for video
walls of up to 3x3 displays, depending on accessibility. For most efcient
handling, larger video walls should be calibrated via the PC-based Display
Wall Calibrator application.
In addition to the extensive calibration capabilities, two new high-end adjustment features lift the video wall calibration result to a new outstandingly high
level. For further details please refer to the Display Wall Calibrator application users manual.
Corner Uniformity Correction
To perform the corner colour matching on a single monitor.
Uniformity Correction
To perform internal screen uniformity on a display, up to 10x10
measurement points can be dened within one monitor.
Additional PC-less advanced calibration capabilities
Display Wall Calibrator application high-end adjustment capabilities
4
USB1 SENSOR
