English-9
English

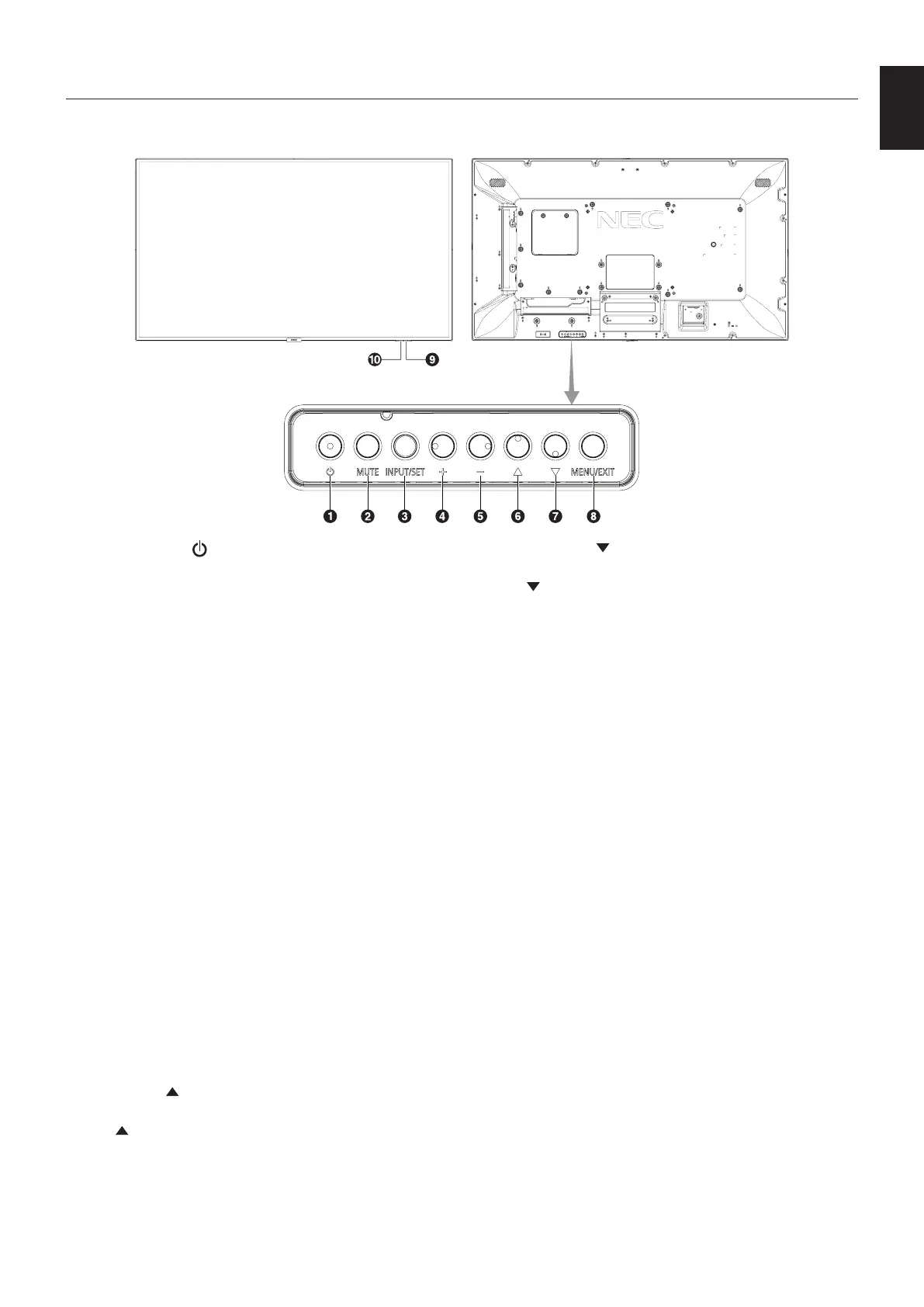

Parts Name and Functions
Control Panel
A Power Button ( )
Switches the power on/standby. See also page 19.
B Mute Button (MUTE)
Switches the audio mute on/off.
C Input/Output Button (INPUT/SET)
INPUT: Toggle switches between below inputs.
[DVI], [HDMI1], [HDMI2], [DisplayPort1], [DisplayPort2],
[VGA (YPbPr/RGB)], [VIDEO], [MP], [OPTION*],
[C MODULE]*
1
. These are available inputs only, shown as
their factory preset name.
SET: When OSD (On Screen Display) is shown, this button
acts as a “set button” when you make a selection.
*: This function depends on which option board you are using.
*
1
: This input is available when the optional Raspberry Pi
Compute Module Interface Board and Raspberry Pi Compute
Module are installed.
D Plus Button (+)
Increases the audio output level when the OSD menu is
turned off.
Acts as (+) button to increase the adjustment within OSD
menu.
E Minus Button (-)
Decreases the audio output level when the OSD menu is
turned off.
Acts as (-) button to decrease the adjustment within OSD
menu.
F Up Button ( )
Activates the OSD menu when the OSD menu is turned off.
Acts as
button to move the highlighted area up to select
adjustment items within the OSD menu.
G Down Button (
)
Activates the OSD menu when the OSD menu is turned off.
Acts as
button to move the highlighted area down to select
adjustment items within the OSD menu.
H Menu/Exit Button (MENU/EXIT)
Activates the OSD menu when the OSD menu is turned off.
Acts as a back button within the OSD to move to the previous
OSD menu.
Acts as an EXIT button to close the OSD when on the main
menu.
I Remote Control Sensor and Power Indicator
Receives the signal from the remote control (when using the
wireless remote control). See also page 13.
Glows blue when the LCD monitor is in active mode*.
Green and Amber blink alternately when the “SCHEDULE
SETTINGS” function is enabled*
1
.
When a component failure is detected within the monitor, the
indicator will blink red or blink a combination of red and blue.
* If “OFF” is selected in the “POWER INDICATOR”
(see page 42), the LED will not glow when the LCD monitor is in
active mode.
*
1
If “OFF” is selected in the “SCHEDULE INDICATOR”
(see page 42), the LED will not blink.
NOTE: Please refer to the POWER INDICATOR (see page 42).
J Room Light Sensing Sensor
Detects the level of ambient light, allowing the monitor
to make automatic adjustments to the backlight setting,
resulting in a more comfortable viewing experience. Do not
cover this sensor. See page 42.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NEC MultiSync V554 and is the answer not in the manual?

NEC MultiSync V554 Specifications

General IconGeneral
Power consumption (standby)- W
Power consumption (typical)120 W
Portrait modeYes
Annual energy consumption175 kWh
Panel life- h
Pixel pitch- mm
Response time8 ms
Display diagonal55 \
Display brightness500 cd/m²
Display technologyLED
Vertical scan range24 - 85 Hz
Horizontal scan range31.5 - 91.1 kHz
LED backlighting typeEdge-LED
Display number of colors1.073 billion colors
Display diagonal (metric)138.78 cm
Active display area (W x H)1209.6 x 680.4 mm
Internal memory1 GB
Processor cores4
Processor modelA53
Processor familyARM Cortex
Processor frequency1.2 GHz
Audio formats supportedMP3, WAV
Image formats supportedJPG, PNG
Video formats supportedFLV, MOV, MP4
Internal storage capacity16 GB
USB version2.0
USB ports quantity5
DisplayPorts quantity3
Ethernet LAN data rates10, 100 Mbit/s
VGA (D-Sub) input ports1
Purpose-
Operating hours (hours/days)24/7
Product colorBlack
Product designDigital signage flat panel
Bezel width (bottom)14.2 mm
Panel mounting interface300 x 300 mm
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80 %
CertificationC-tick; CE; EMC Class B; FCC; PSB; TÜV GS; UL/C-UL or CSA; VCCI
Sustainability certificatesRoHS, ENERGY STAR
RMS rated power20 W
Cables includedAC, DVI
Weight and Dimensions IconWeight and Dimensions
Depth62.9 mm
Width1244 mm
Height714.8 mm
Weight24500 g
