NEC MultiSync V554 User Manual

English-6

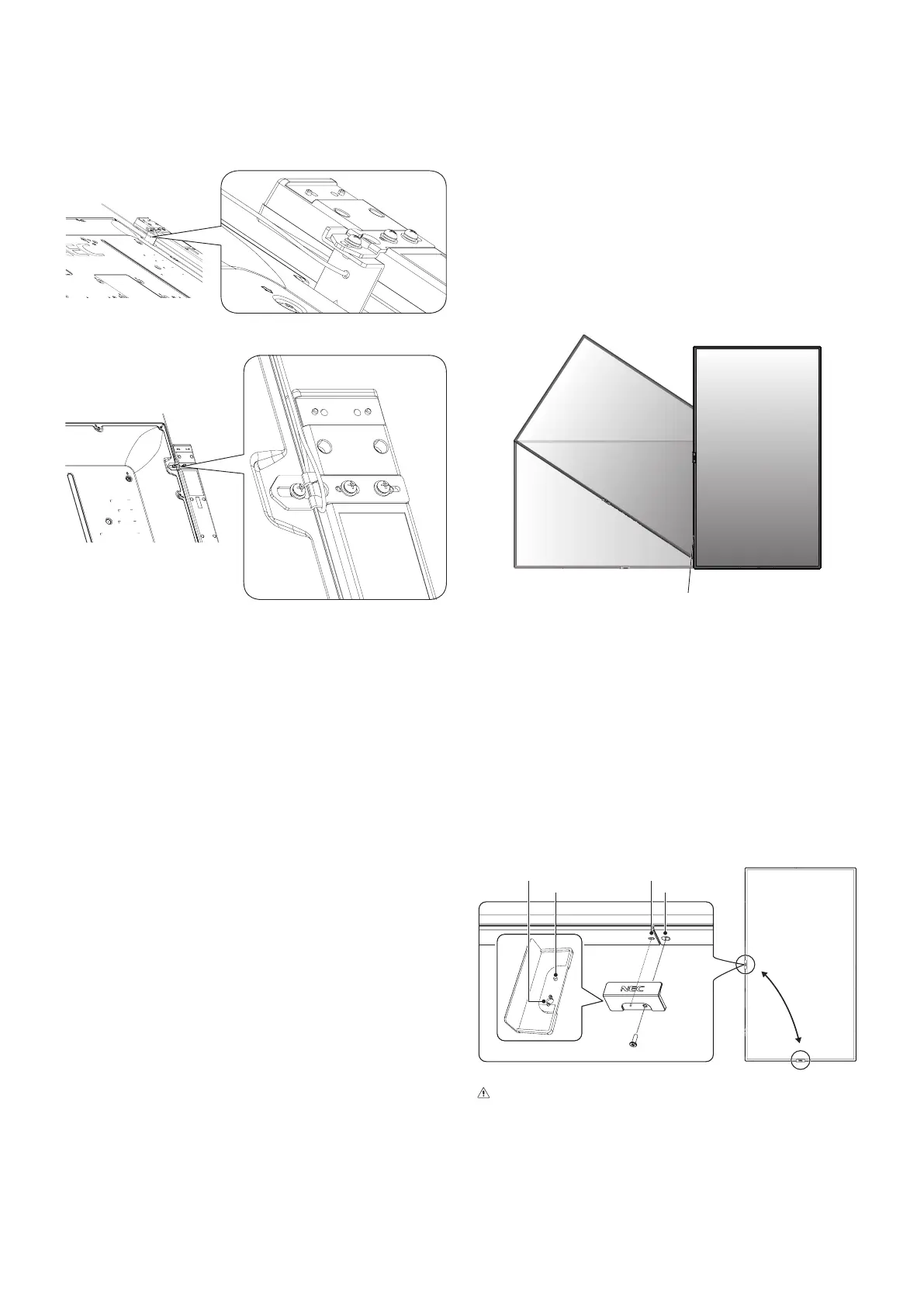

Installing a wire to a monitor with installed speakers
(Landscape position only)
Please use speaker mounting parts to install a wire to the
monitor.
Optional speaker is installed on the rear of the LCD monitor:
Optional speaker is installed on the side of the LCD monitor:
Mounting location
•฀The฀ceiling฀and฀wall฀must฀be฀strong฀enough฀to฀support฀the฀
monitor and mounting accessories.
•฀DO฀NOT฀install฀in฀locations฀where฀a฀door฀or฀gate฀can฀hit฀
the unit.
•฀DO฀NOT฀install฀in฀areas฀where฀the฀unit฀will฀be฀subjected฀
to strong vibrations and dust.
•฀DO NOT install the monitor next to a location where the
main power supply is fed into the building.
•฀DO NOT install the monitor in a location where people
can easily grab and hang onto the unit or the mounting
equipment.
•฀Allow for adequate ventilation or provide air conditioning
around the monitor, so that heat can properly dissipate
away from the monitor and from the mounting equipment.
Mounting on ceilings
•฀Ensure฀that฀the฀ceiling฀is฀sturdy฀enough฀to฀support฀the฀
weight of the unit and the mounting equipment over time,
against earthquakes, unexpected vibrations, and other
external forces.
•฀Be฀sure฀the฀unit฀is฀mounted฀to฀a฀solid฀structure฀within฀
the ceiling, such as a support beam. Secure the monitor
using bolts, spring lock washers, washer and nut.
•฀DO฀NOT฀mount฀to฀areas฀that฀have฀no฀supporting฀internal฀
structure. DO NOT use wood screws or anchor screws for
mounting. DO NOT mount the unit to ceiling or to hanging
fixtures.
Maintenance
•฀Periodically฀check฀for฀loose฀screws,฀gaps,฀distortions,฀
or other problems that may occur with the mounting
equipment. If a problem is detected, please refer to
qualified personnel for service.
•฀Regularly฀check฀the฀mounting฀location฀for฀signs฀of฀
damage or weakness that may occur over time.
Orientation
•฀When฀using฀the฀monitor฀in฀the฀portrait฀position,฀it฀should฀
be rotated clockwise so that the left side is moved to
the top, right side is moved to the bottom. This will allow
for proper ventilation and will extend the lifetime of the
monitor. Improper ventilation may shorten the lifetime of
the monitor.
LED Indicator
Changing NEC logo ornament position
When using the monitor in the portrait position, the NEC logo
ornament position can be changed.
Removing the logo ornament: unscrew the installed screw
then take off the logo ornament.
Attaching the logo ornament: adjust the protrusions inside of
the logo ornament into the protrusion hole on the bezel. Make
sure the hole for the screw on the logo ornament and the
hole for the screw on the bezel are aligned. Install the logo
ornament with the screw, which is used for installing the logo
ornament.
(Recommended Fasten Force: 30-40N•cm).
Inside of NEC logo ornament
Screw hole
Screw hole
Protrusion
Protrusion hole
CAUTION: Do not use any other screw to install the logo
ornament.

NEC MultiSync V554 Specifications

General

Power consumption (standby)	- W
Power consumption (typical)	120 W
Portrait mode	Yes
Annual energy consumption	175 kWh
Panel life	- h
Pixel pitch	- mm
Response time	8 ms
Display diagonal	55 \
Display brightness	500 cd/m²
Display technology	LED
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-LED
Display number of colors	1.073 billion colors
Display diagonal (metric)	138.78 cm
Active display area (W x H)	1209.6 x 680.4 mm
Internal memory	1 GB
Processor cores	4
Processor model	A53
Processor family	ARM Cortex
Processor frequency	1.2 GHz
Audio formats supported	MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, MOV, MP4
Internal storage capacity	16 GB
USB version	2.0
USB ports quantity	5
DisplayPorts quantity	3
Ethernet LAN data rates	10, 100 Mbit/s
VGA (D-Sub) input ports	1
Purpose	-
Operating hours (hours/days)	24/7
Product color	Black
Product design	Digital signage flat panel
Bezel width (bottom)	14.2 mm
Panel mounting interface	300 x 300 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	C-tick; CE; EMC Class B; FCC; PSB; TÜV GS; UL/C-UL or CSA; VCCI
Sustainability certificates	RoHS, ENERGY STAR
RMS rated power	20 W
Cables included	AC, DVI

Weight and Dimensions

Depth	62.9 mm
Width	1244 mm
Height	714.8 mm
Weight	24500 g
