NEC MultiSync X461UN User Manual

English-36

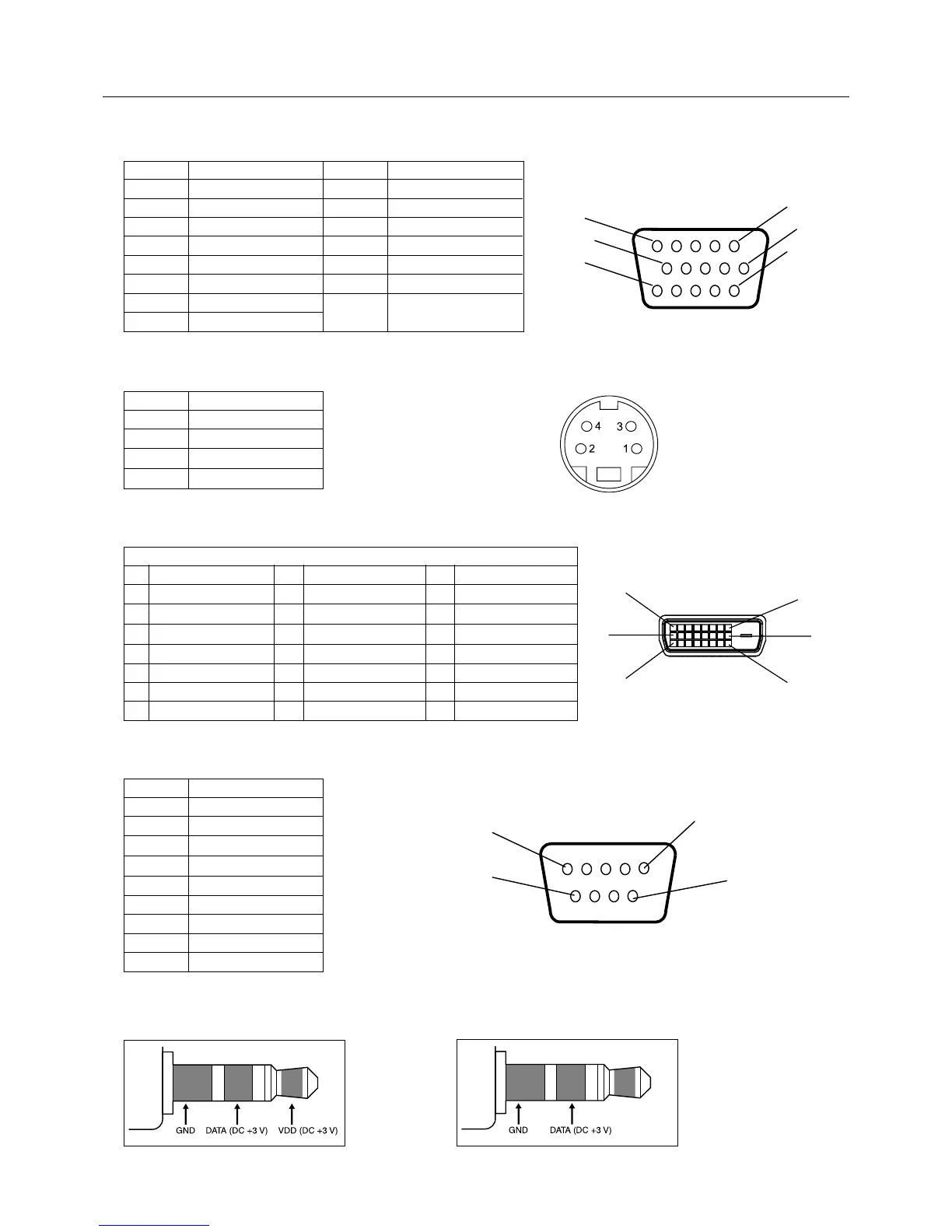

1) Analog RGB input (MiniDsub15p): VGA
Pin No Name
1Video Signal Red
2Video Signal Green
3Video Signal Blue
4 GND
5 DDC-GND
6 Red-GND
7 Green-GND
8 Blue-GND
2) S-VIDEO input: VIDEO
Pin No Name
1 GND
2 GND
3Y (Luminance)
4C (Chroma)
3) Digital RGB input (DVI-D): DVI
4) RS-232C input/output
Pin No Name
1 connected to 7&8
2 RXD
3 TXD
4 connected to 6
5 GND
6 connected to 4
7 connected to 1&8
8 connected to 1&7
9NC
Pin - Assignment of DVI connector:
1 TX2- 9 TX1- 17 TX0-
2 TX2+ 10 TX1+ 18 TX0+
3 Shield (TX2 / TX4) 11 Shield (TX1 / TX3) 19 Shield (TX0 / TX5)
4NC 12NC20NC
5NC 13NC21NC
6 DDC-Serial Clock 14 +5V power 22 Shield (TXC)
7 DDC-Serial Data 15 Ground 23 TXC+
8NC16Hot plug detect 24 TXC-
1
6
5
9
D-SUB 9P
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
5
10
15
1
6
11
Mini D-SUB 15P
Pin No Name
9 +5V (DDC)
10 SYNC-GND
11 GND
12 DDC-SDA
13 H-SYNC
14 V-SYNC
15 DDC-SCL
5) REMOTE IN 6) REMOTE OUT
Pin Assignment
1
9
17
8
16
24
