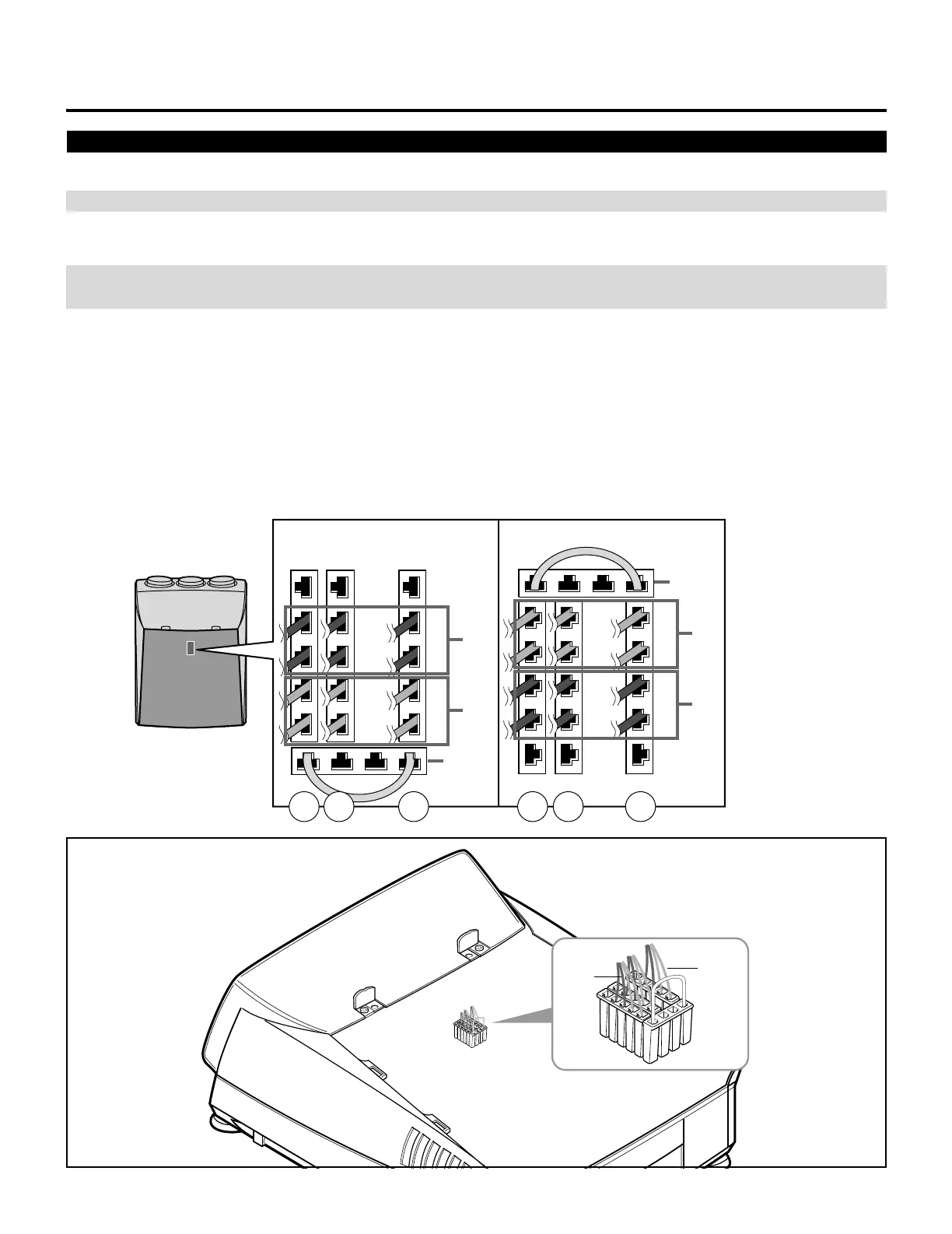

14
Scan Reversal
Horizontal polarity
Blue
Red
EB ER
Desk top, front / Ceiling, rear
Desk top, rear / Ceiling, front
EB EGEG
Dummy
plug
Dummy
plug
Red
Blue
Blue
Red
ER
You will have to reverse the horizontal polarity when changing the projector’s configuration.
NOTE: For vertical polarity , scan reversal can be changed using the PROJECTION feature in the SETTING MODE menu.
To reverse the scan, proceed as follows:
CAUTION: Always disconnect the projector from the AC source before reversing the plug. Failure to observe this precaution may
result in electric shock or damage to the projector.
1 Remove the top cover.
• See Removing and reinstalling Top Cover section.
2 Reverse the horizontal scan.
• To reverse the scan there are three plugs on the sweep board. EB, EG and ER are the horizontal connectors.
First remove the dummy plug.
Secondly remove the plug and turn it 180 degrees, then reinstall. Do this for all three of horizontal connectors depending upon
your application (See Table below). Third, install the dummy plug on the opposite side.
PROJECTION CONFIGURATION CHANGE
To Next Page
